3-way Valve ARV 386 Vario ProClick DN40

Description

3-way rotary mixing valve Afriso ARV 386 Vario ProClick, DN40, Rp1 1/2", Kvs 14-36

Application

Used in heating and cooling systems.
Most often installed on the supply of the system as a mixing valve.
Mixes medium streams in appropriate proportions to obtain the required temperature.
Can act as a distribution and switching valve.

Description

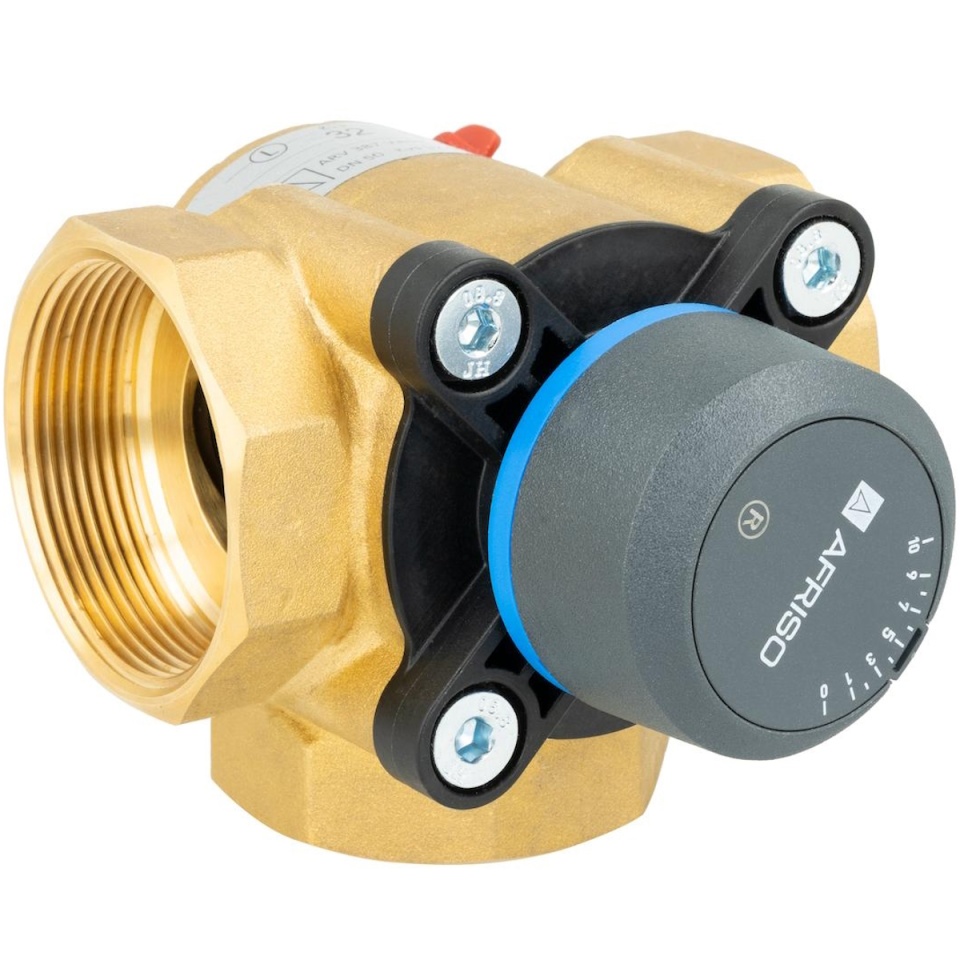

Equipped with the ProClick system, direct assembly of the actuator on the valve without the use of tools.
The Vario function allows you to change the Kvs coefficient setting in the range of 14÷36 m³/h.

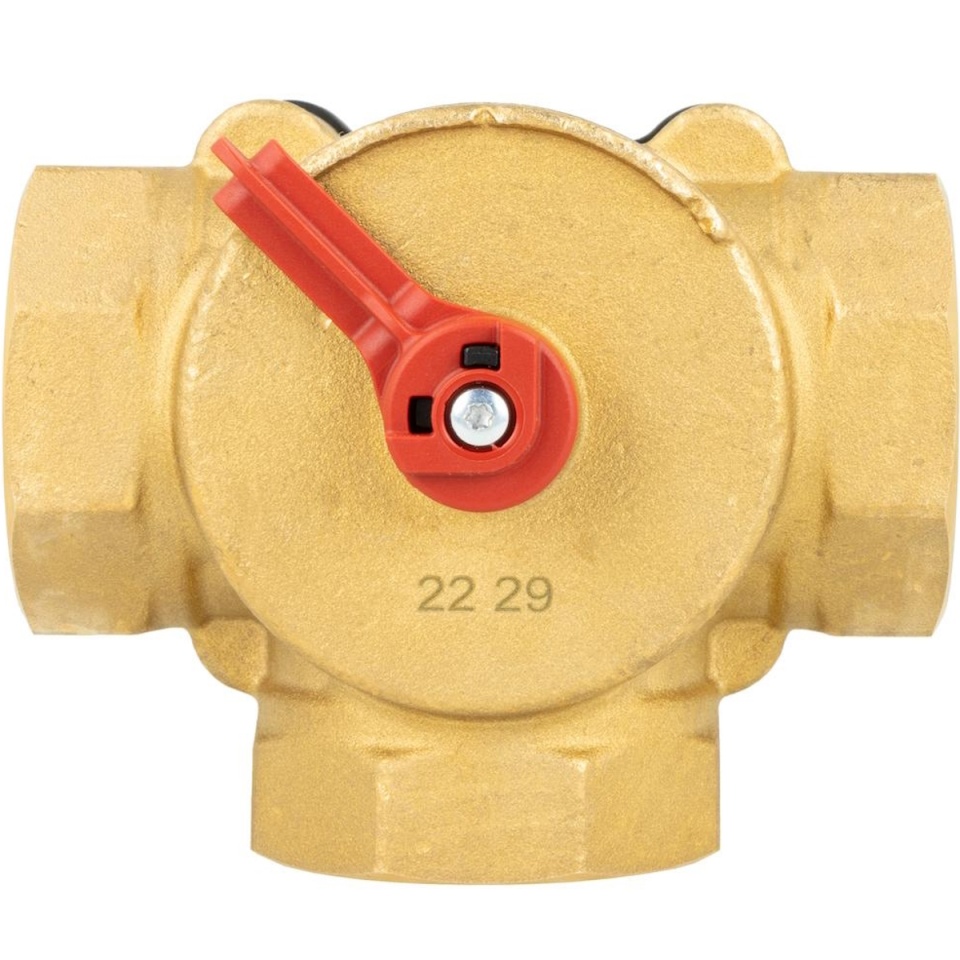

Changing the Kvs setting using the appropriate lever.
The body is made of brass, with internal threads.

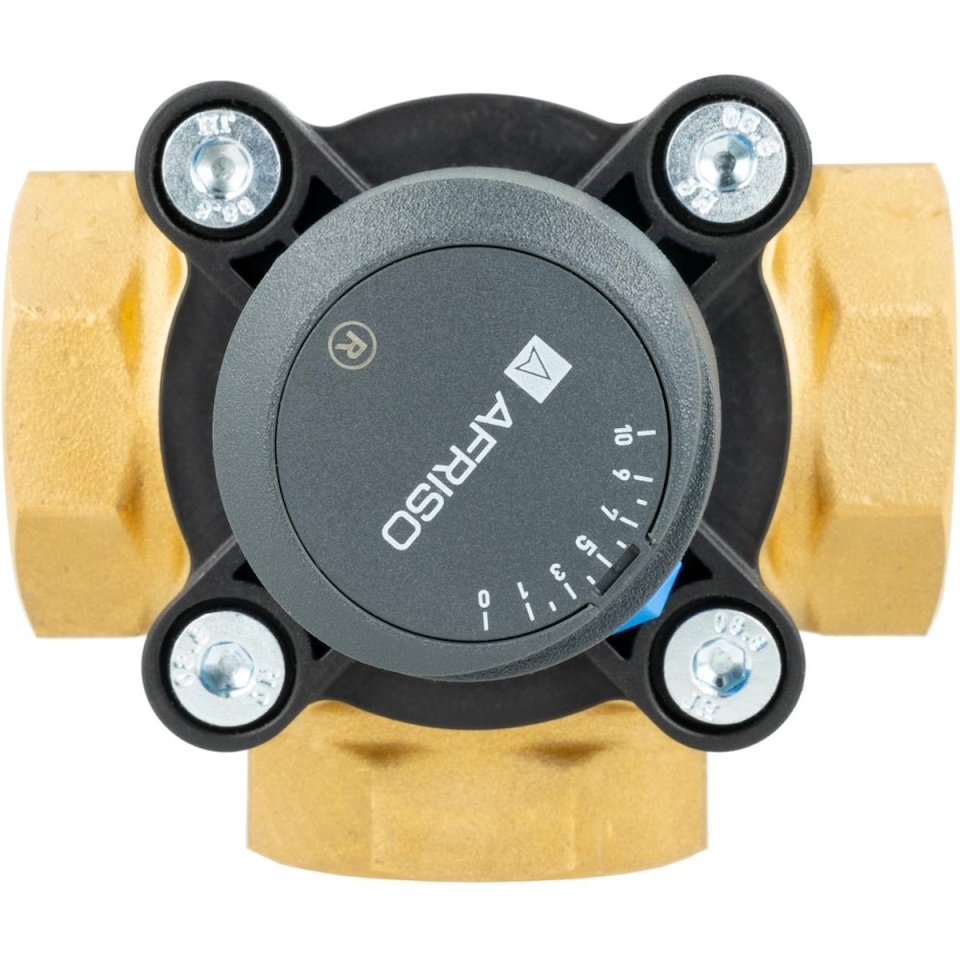

Convenient knob with rotation angle limiters.

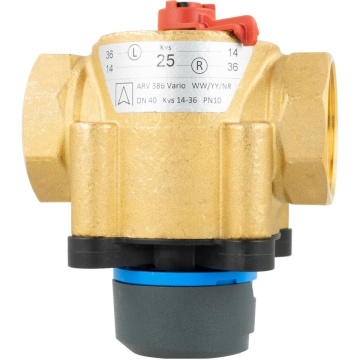

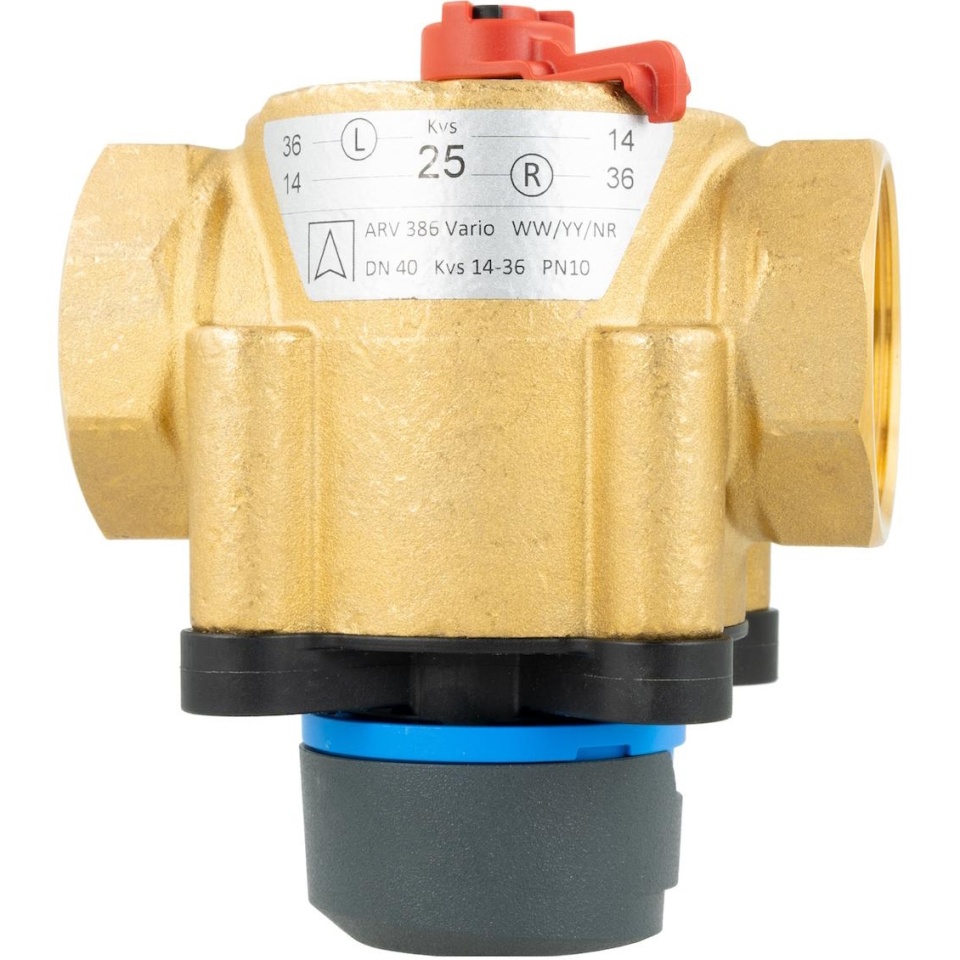

Readable double-sided scale (from 0 to 10 with the L symbol and from 10 to 0 with the R symbol).
Indicator of the current position of the valve.

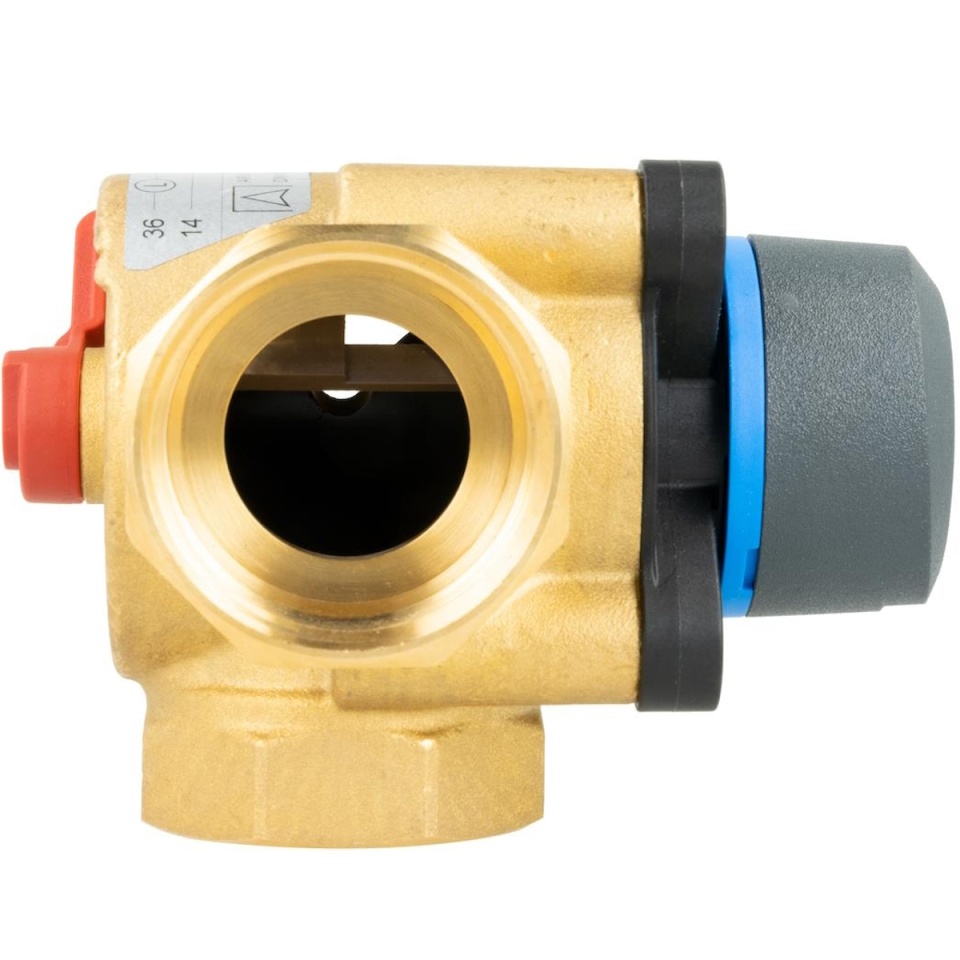

Octagonal connections for easy assembly.

Specifications

DN40
Kvs 14-36 m³/h
Connections Rp1½"
Medium pressure max 10 bar
Medium temperature 5÷95°C
Medium water, water and glycol mixture with a maximum concentration of 50%
