Actuator DG92

Description

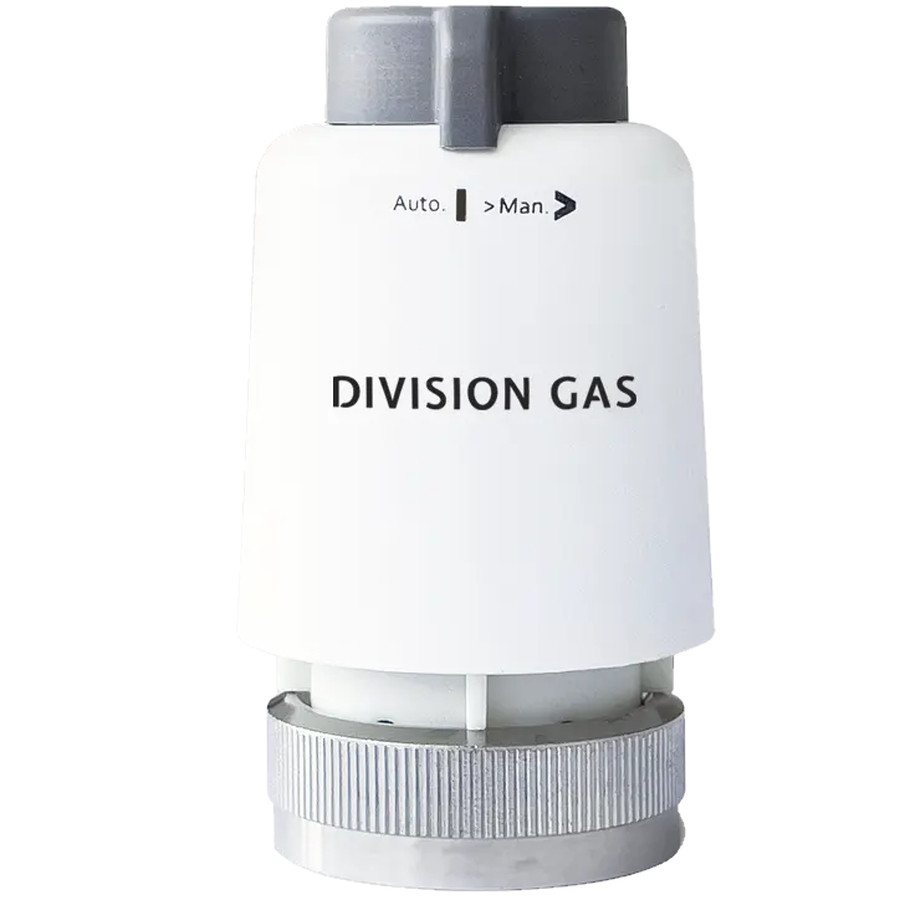

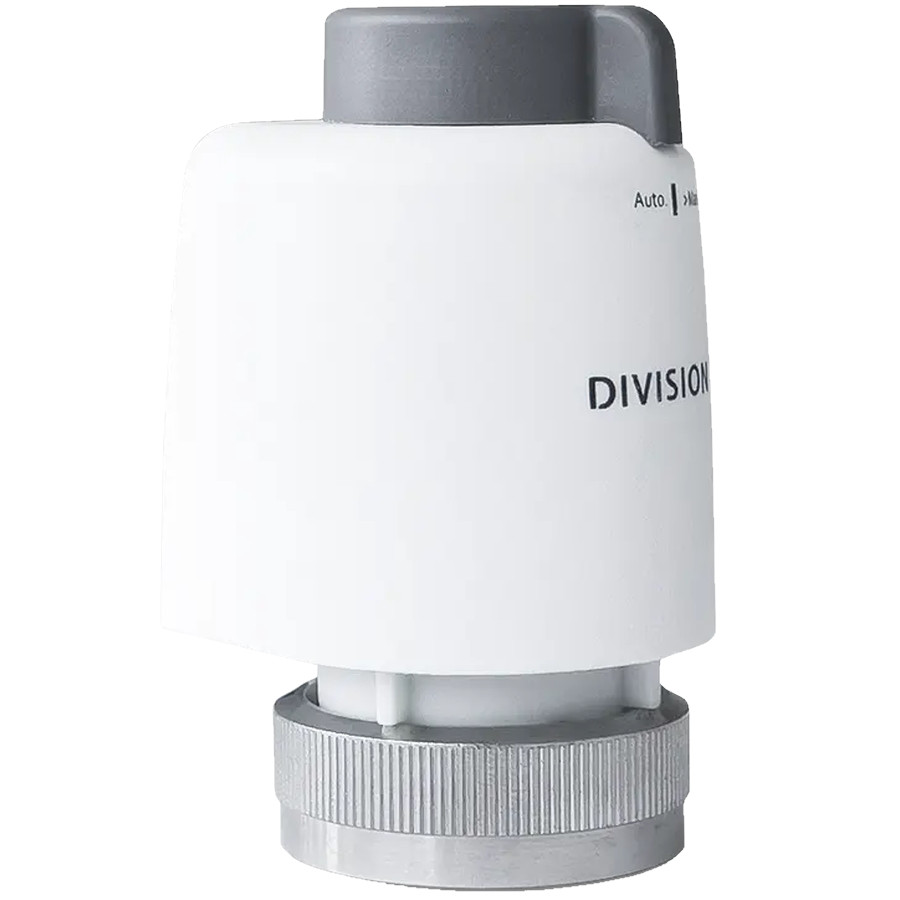

Actuator Division Gas DG92 230 V for floor heating distributors

The DG92 is a normally closed underfloor heating actuator that controls the temperature in the home via a distributor.

With the help of the servomotor (actuator) you will always have the temperature in the room between the set parameters.

Included Cable: Connect it with the included cable

Manual or Automatic: Select between the 2 working modes with a single movement

Always the desired temperature: With the DG92 underfloor heating actuator, you easily maintain the desired temperature within the parameters set by you.

Terminal pins: The cable is equipped with terminal pins for efficient and safe mounting.

Specifications

Force / direction: 80N ≤ F < 130N / up
Control element: electro-thermal sensor
Connector: M30x1.5 mm
Temperature: -10°C..+60°C
Stroke: 3.5 ±0.3 mm
Protection class: IP45
Power consumption: 1.1 VA
Cable: 0.8 m
Weight: 180 g
