Air conditioner Avanti YW24T3 with Installing Kit

Description

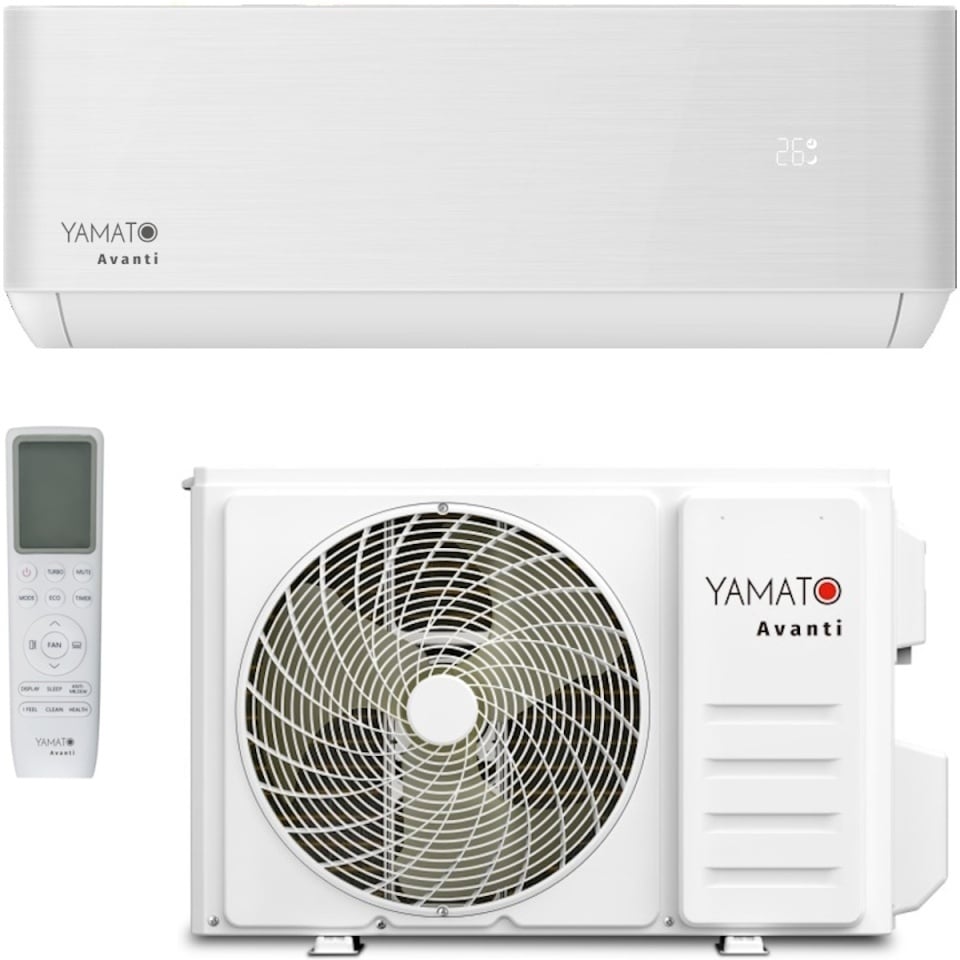

Air conditioner Yamato Avanti YW24T3 24000 BTU/h with Installing Kit

The Avanti range benefits from the latest technologies in the field of air conditioning: UV-C sterilization, BIG ion generator and rapid cooling.

BIG ion generator (Bipolar Ionic Generator)
The integrated BIG generator ionizes the air and generates a large amount of plasma, atoms and strongly oxidizing substances, which destroy bacteria and viruses. Together with the additional air filter, it contributes significantly to improving air quality.

UV-C lamp
The UV-C lamp, located on the evaporator of the indoor unit, emits, safely for the user, UV radiation (240nm-280nm) that affects and destroys the DNA of bacteria, ensuring the sterilization of the evaporator and the air passing through it.

Rapid Cooling/Heating
The advanced technology allows the air conditioner to start at a high frequency of 100 Hz, so that the exhaust air temperature reaches 17oC in 30s, in cooling mode, and 40oC in 60s, in heating mode.

Wi-Fi control
With the Wi-Fi function, after connecting the device to the Internet, you can control it remotely using the SmartLife-SmartHome app and a smart mobile device. The Wi-Fi module does not require installation, being already integrated in the indoor unit.

Double filtering
Primary filtration is provided by the washable high-density air filter, easy to sanitize due to easy access and removal. The additional filter contributes to the improvement of air quality, both through the secondary filtration of fine particles, as well as due to its anti-bacterial properties.

Starting over a wide range of voltages
The air conditioner can work in the range of 165 - 265V, under unstable or too low voltage conditions. For increased safety in use and improved aesthetics of the serviced space, the power supply is made through the outdoor unit.

Corrosion resistant housing
The metal housing and condenser of the outdoor unit retain their appearance and functionality for a long time, thanks to the applied anti-corrosion protection layers.

DC Inverter, SEER A++/ SCOP A+
DC Inverter technology allows for voltage and current control, for efficient, low-energy, and quieter operation by reducing vibration. The speed of the compressor varies, ensuring both maintaining, with high precision, the set temperature and saving energy.

Installation kit included
For all capacities, the appliances include the installation kit containing 3m of pipe, 4.3m of cable, condensate drain tube (2x2m), matting tape, insulation and wall hole sealant.

Sleep
The function provides optimization during sleep by automatically adjusting the temperature curve to increase user comfort while saving energy.

Clean & Mildew
By activating the Clean function, you can start the self-cleaning cycle in 4 steps: quick freezing, defrosting, drying and high temperature sterilization of the evaporator. To prevent mold, use the Mildew function, which dries the internal parts of the indoor unit by continuing to run the fan for 15 minutes after the unit is turned off.

Eco
In Eco mode, the device reaches the set temperature in the shortest time, then operates at a reduced frequency, maintaining the set temperature, and at the same time reducing energy consumption.

I Feel

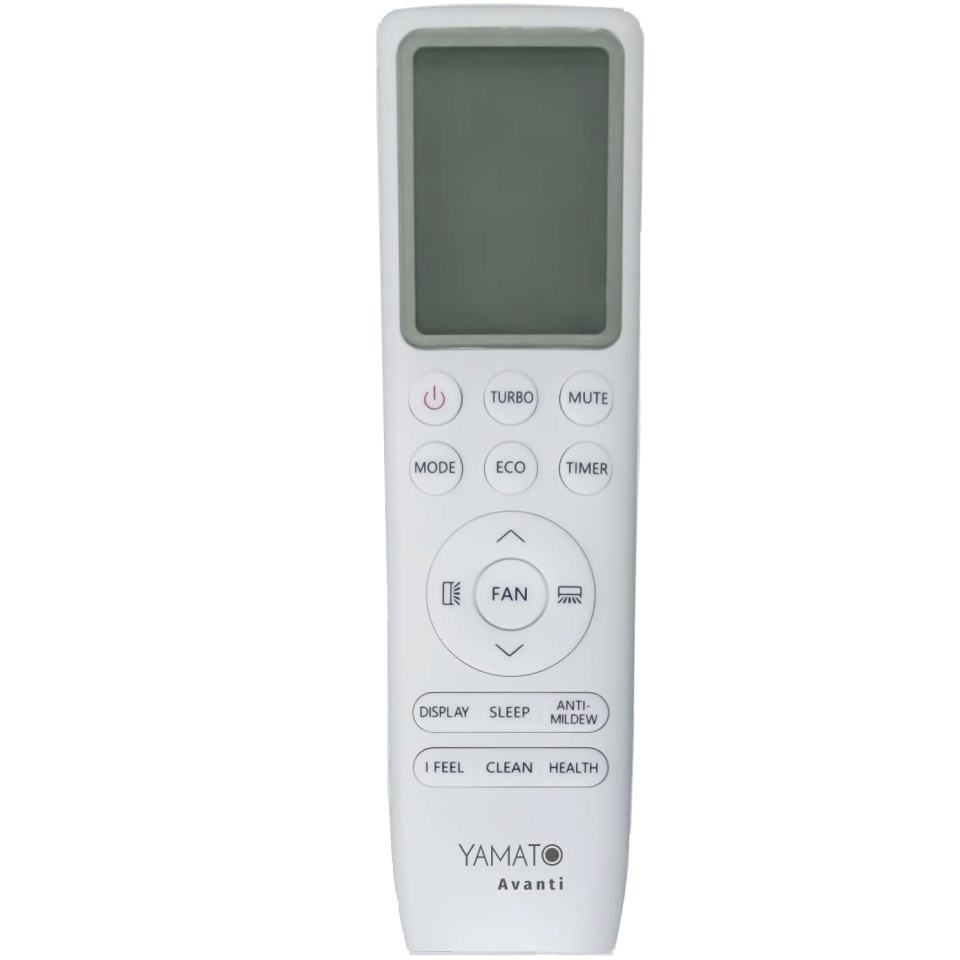

The I Feel function automatically optimizes the operation of the air conditioner, by detecting the ambient temperature, with the help of the sensor in the remote control, and adjusting the temperature of the air released into the room.

Golden Fin protection coating
The condenser and evaporator benefit from the Golden Fin coating, which, in addition to superior anti-corrosive properties, thanks to the hydrophilic layer, prevents condensation and the accumulation of dust, dirt and bacteria.

56oC - Self-cleaning with high temperature sterilization
You can periodically activate an automatic cleaning cycle, which consists of quick freezing, then defrosting the evaporator, drying it, followed by a sterilization step at a temperature of 56oC. Thanks to this function, perfected by adding the sterilization step, the bacteria removal rate on the evaporator is over 93.18%.

7-speed fan
When setting the fan speed of the indoor unit, in the chosen operating mode, you can choose between the 5 available speeds, to which are added the Turbo operating modes (operation at the maximum speed of the fan, to reach the desired temperature in the shortest time) and Mute (operation at the lowest noise level, in the minimum fan speed step, for optimal comfort in silence).

Yamato Avanti T3 air conditioner technical data

Cooling capacity 6244/23338/26682 BTU/h (min/nom/max)
Heating capacity 6313/24055/27160 BTU/h (min/nom/max)
Power supply 1 Ph-220V-240V-50Hz
Seasonal efficiency coefficient for cooling SEER 6.50
Seasonal efficiency coefficient for heating SCOP 4.00
Cooling energy efficiency A++
A+ heating energy efficiency
Cooling power consumption 410/2099/2800 W (min/nom/max)
Heating power consumption 420/1900/3000 W (min/nom/max)
External temperature range for cooling -15°C ~ 53°C
External operating temperature range for heating -20°C ~ 30°C
Nominal cooling current 9.8 A
Nominal heating current 8.6 A

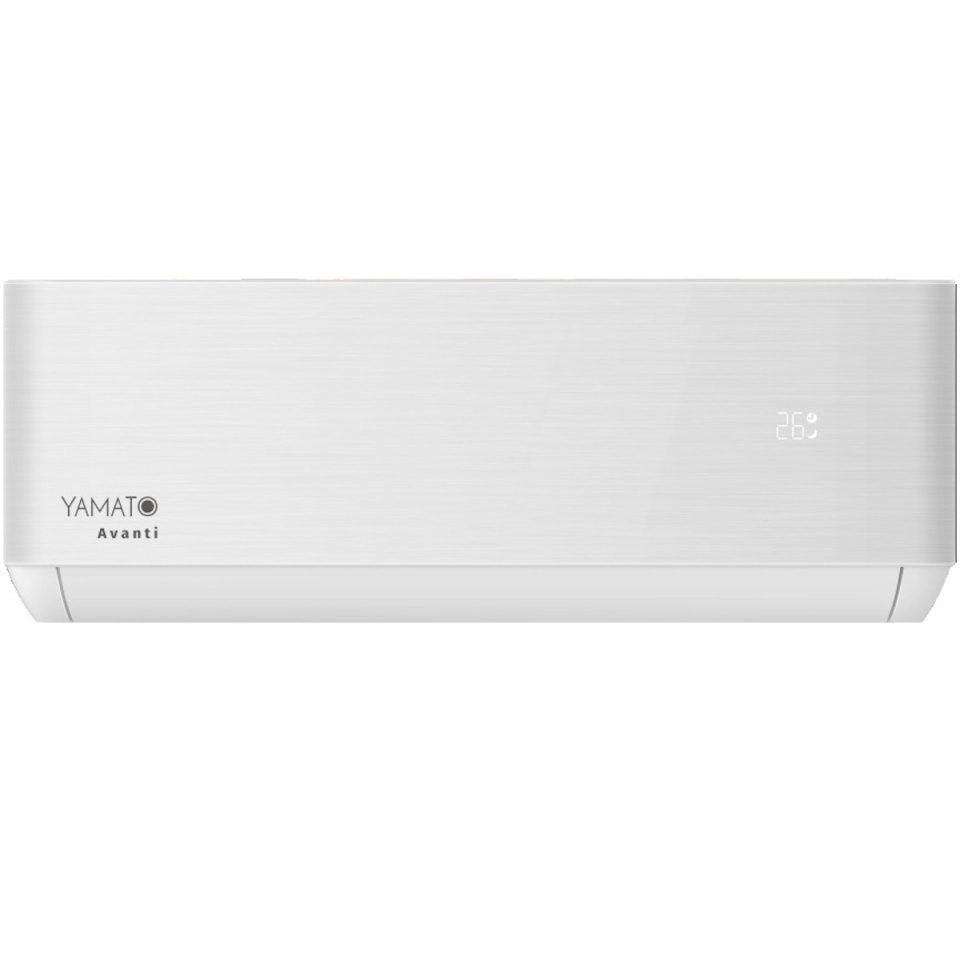

Indoor unit

Internal unit air flow 1100 m³/h
Sound pressure level 47 / 42 / 38 / 34 / 31 dB(A) ( T / H / M / L / S)
Acoustic power level 58 / 52 / 48 / 44 / 41 dB(A) ( T / H / M / L / S)
Net size of indoor unit 1100x222x333 mm
Net/gross weight indoor unit 14.0 / 17.0 kg

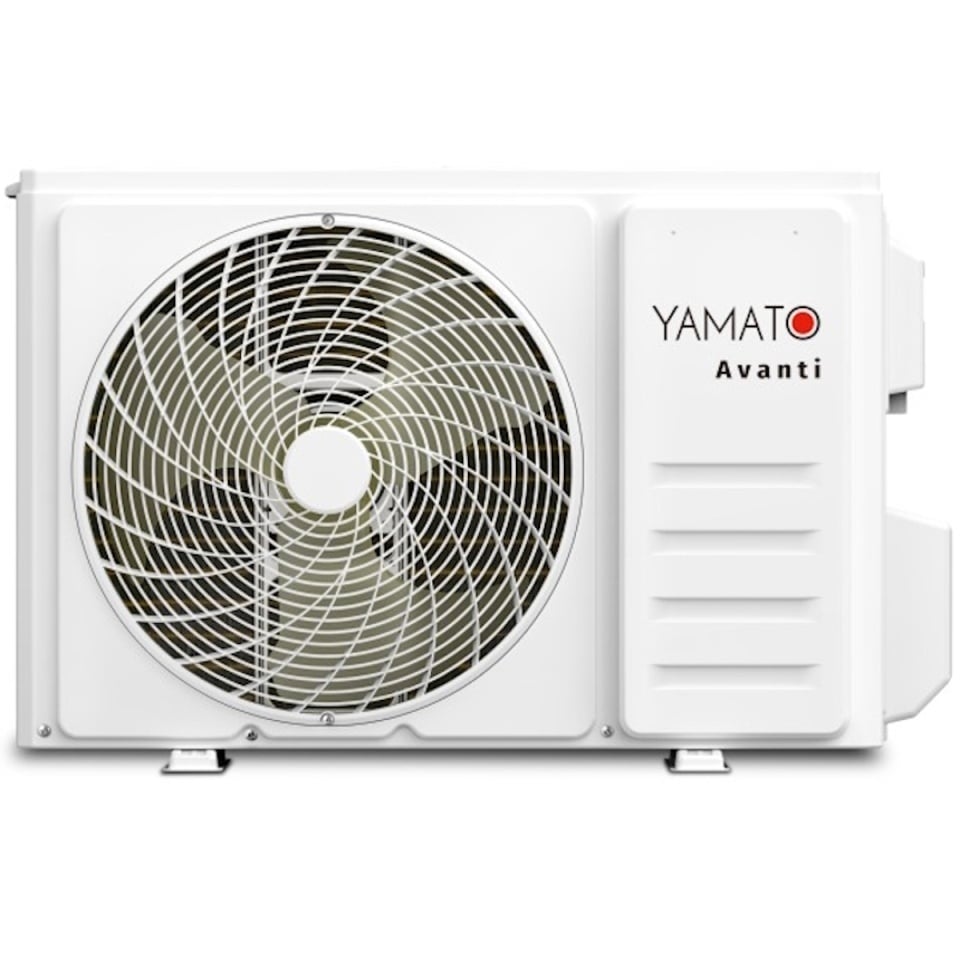

Outdoor unit

Sound pressure level 57 dB(A)
Acoustic power level 68 dB(A)
Net size outdoor unit 920x380x699 mm
Net/gross weight outdoor unit 40.0 / 46.0 kg
Refrigerated route

Diameter 6.00 / 12.7 mm (liquid/gas)
Maximum length 25 m
Maximum difference in level 10 m
