Air conditioner Climate 4000i 12000 BTU/h
Description

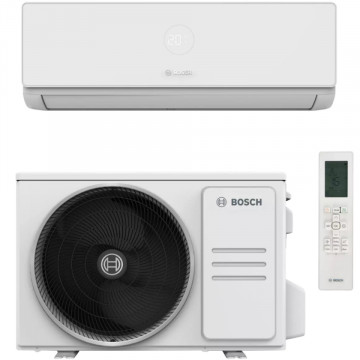

Air conditioner Bosch Climate 4000i 12000 BTU/h
The Bosch Climate 4000i models can be controlled remotely via the smartphone app using a Bosch IP Gateway.
Efficiency class A++ for Cooling and A++ for Heating
Air ionizer
3D airflow
Extremely quiet.
Thanks to the 3D rotation function, the air outlet moves so that the air flow is directed to every corner of the room.
With the Silent Mode function - the silent mode of the indoor unit - you can reduce the noise level of the device.
The Follow Me function measures the temperature in the room where the remote control is located, not on the indoor unit.
With the Wind Avoid Me function, you can use the remote control to direct the airflow so that it does not blow on you.
Filtration
Ionization technology removes dust, mold, viruses and bacteria from the air using positive and negative ions.
The iClean function removes bacteria and mold from the heat exchanger by heating the evaporator to 56 °C.
The HD (high density) filter, the BIO filter and the catalytic filter will keep harmful substances out of the room.
A reliable and effective product for all seasons:
Thanks to the compressor heating belt and drain pan, the air conditioner can heat up even at very low outside temperatures.
A special anti-corrosion coating on the blades of the outdoor unit protects the device from corrosion and ensures a longer service life.
Choose a lower power consumption level (from 3 options) and save on electricity costs with the Power Converter function.
The Climate 4000i can keep the room temperature above 8°C and prevent freezing when the house is unoccupied in winter.
Always a stable temperature:
Thanks to sophisticated technology and power regulation, the temperature in the room does not deviate by more than ±0.5 degrees from the set value.
Simple order:
You can control the Climate 4000i air conditioner using a remote control (included in the package) or connect it to a wall-mounted room thermostat (optional accessory).
Thanks to the Wi-Fi module, you can easily control the device using a smartphone and the Bosch HomeCom Easy app.
FollowMe function

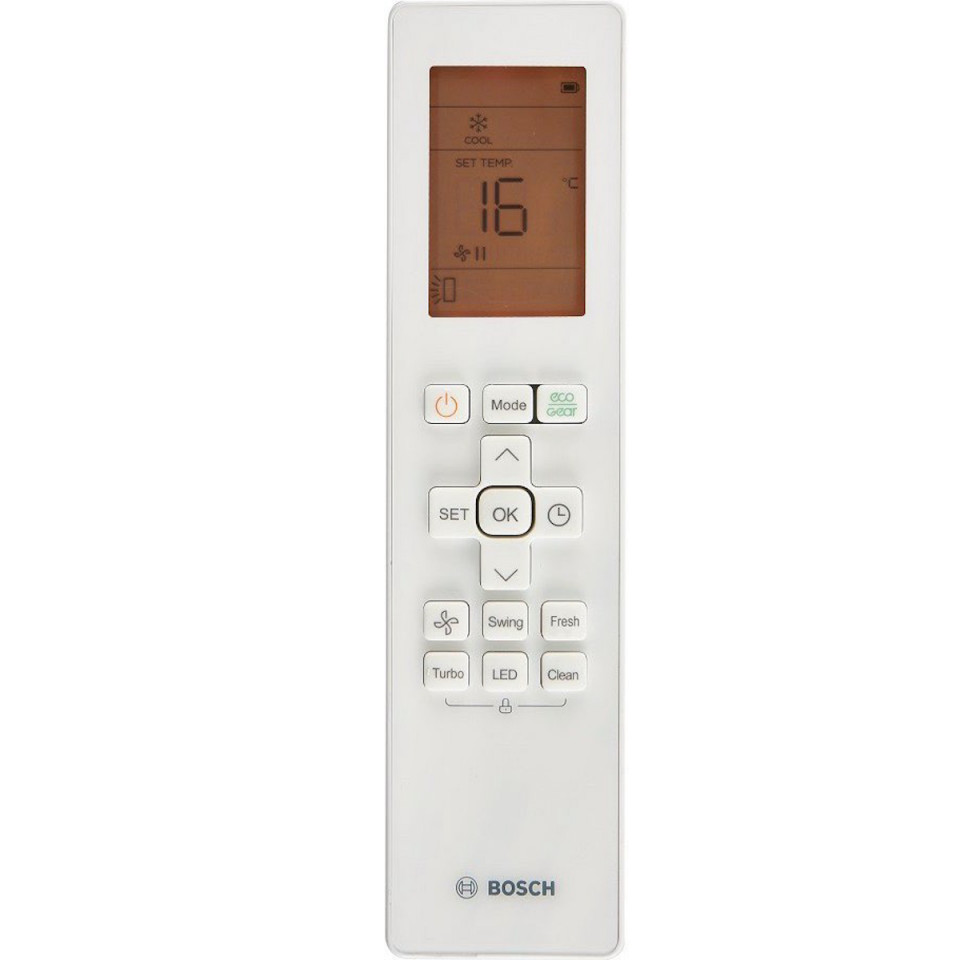

The room temperature sensor built into the remote control is activated and replaces the one in the indoor unit. The air conditioner will adjust the room temperature based on the temperature around the remote control, just as the air conditioner follows the user (maximum distance between the IDU and the remote control 8m).
Press the "SET" button on the remote control to select this function and then press OK. Then the remote control will send signal to the PCB every 3 minutes. If the PCB does not receive signal for 7 minutes or the "SET" button is pressed again, the follow me function will be closed.
Technical data Bosch Climate 4000i
Indoor unit CL4000iU W 35 E, Outdoor unit CL4000i 35 E
cooling
Nominal power 3.5 kW, 12000 BTU/h
Power absorbed at nominal power 1030 W
Power (min. - max.) 1.38 - 4.31 kW
Absorbed power (min - max.) 130-1650 W
Cooling load (Pdesignc) 3.5 kW

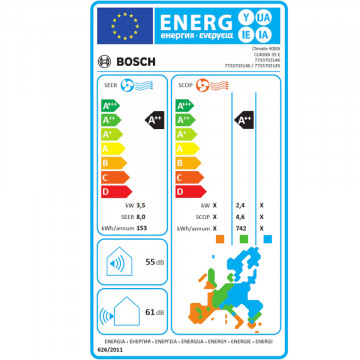

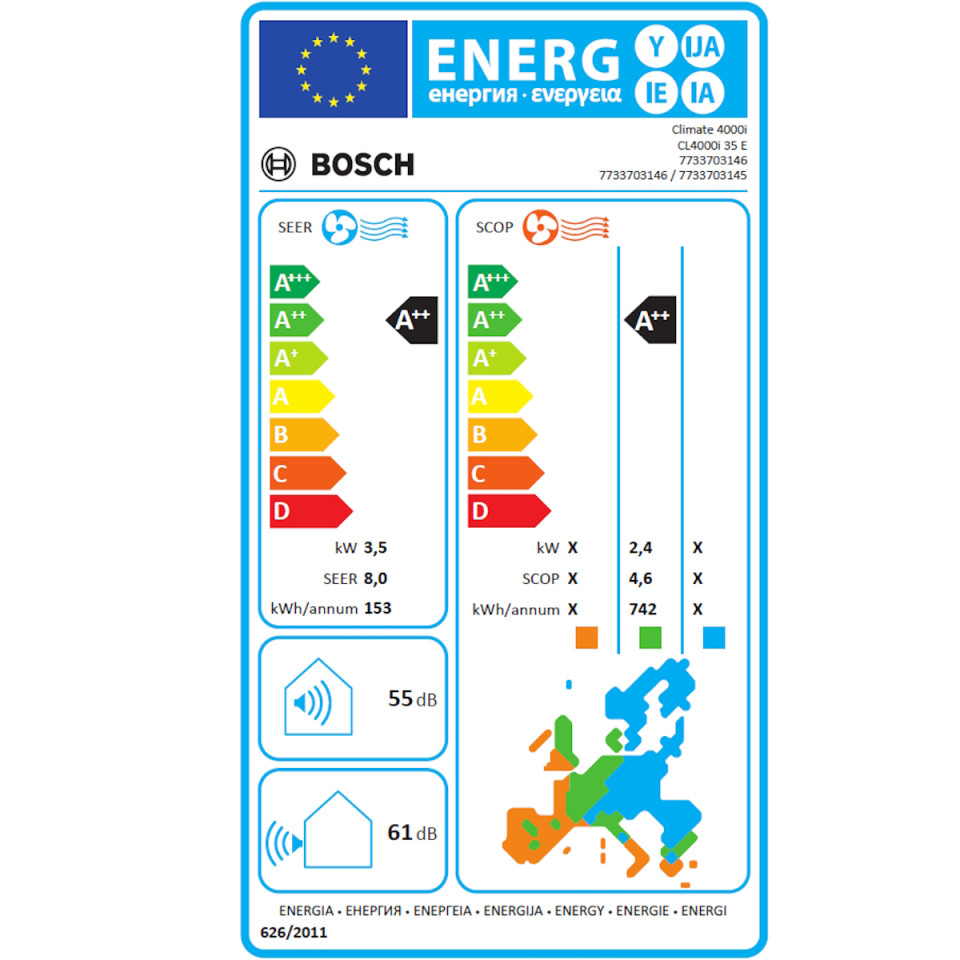

Energy efficiency (SEER) – 8.0
Energy efficiency class - A++
Heating - generalities
Nominal power 3.8 kW, 13000 BTU/h
Power absorbed at nominal power 950 W
Power (min. - max.) 1.07 - 4.38 kW
Absorbed power (min - max.) 160 - 1560 W
Heating - average climate
Heating load (Pdesignh) 2.4 kW
Energy efficiency (GOAL) 4.6
Energy efficiency class A++
Heating - warm climate
Heating load (Pdesignh) 3.1 kW
Energy efficiency (GOAL) 5.1
Energy efficiency class A+++
Overview
Power supply with voltage 220-240 / 50 V / Hz
max consumption of absorbed power 2200 W
Maximum current consumption 10.5 A
Refrigerant – R32
Refrigerant supply quantity 620 g
Nominal pressure 4.3/1.7 MPa
Internal unit
Explosion-proof ceramic fuse on the base plate – T3.15 A/250 V
Volume flow (high/medium/low) 520/370/310 m3/h
Sound pressure level (high/medium/low/noise reduction) 39/33/22/21 dB(A)
Sound emission level 55 dB(A)
Allowed ambient temperature (cooling/heating) 16...32/0...30°C
Net weight 8.7 kg

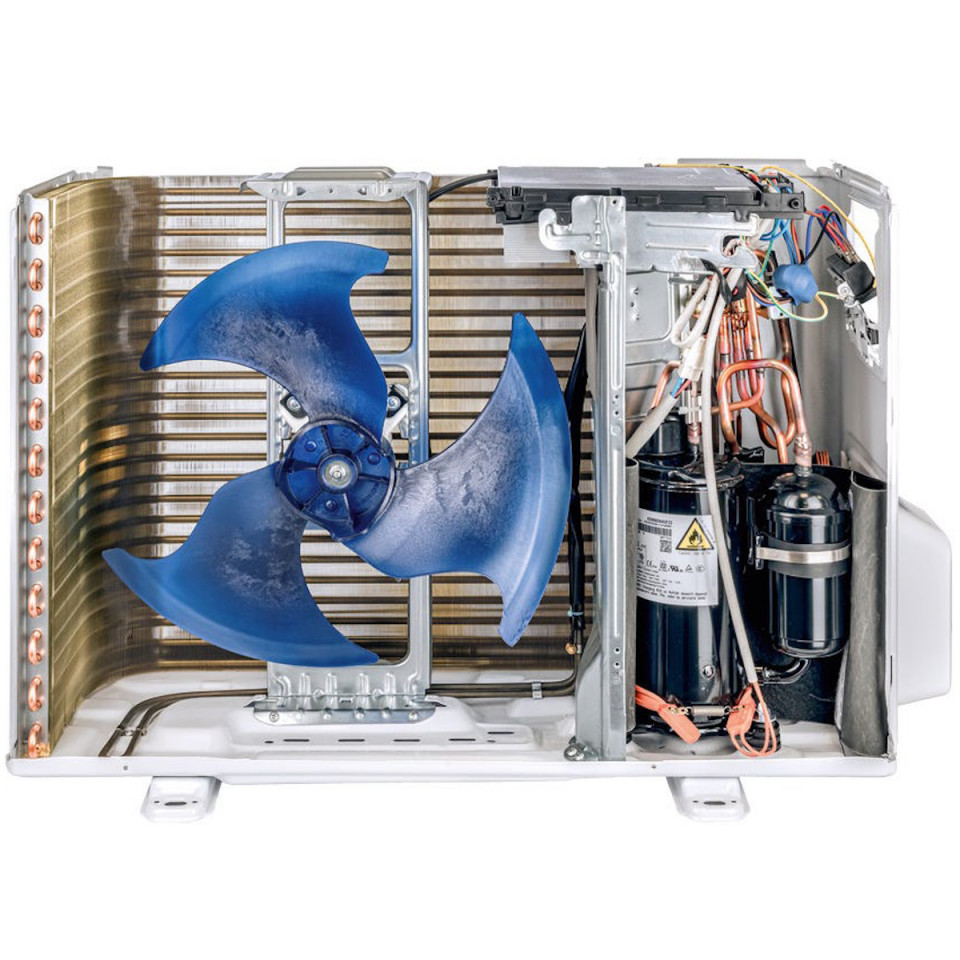

External unit
Explosion-proof ceramic fuse on the base plate – T20 A/250 V
Volumetric flow 2200 m3/h
Sound pressure level 55 dB(A)
Sound emission level 61 dB(A)
Allowed ambient temperature (cooling/heating) -15...50/-21...24°C
Net weight 26.4 kg
