Air-to-water Heat Pump Altherma 4 H F EPVX10S23A9W EPSK10AW1 10kW Tank230

Description

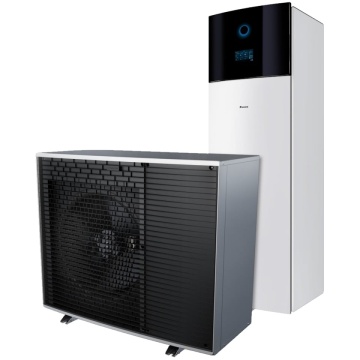

Air-to-water Heat Pump hydro-split Daikin Altherma 4 H F EPVX10S23A9W EPSK10AW1

10 kW Tank 230 lt 400V

Daikin Altherma 4 H seamlessly integrates with existing radiators, delivering leaving water temperatures (LWT) of 70-75°C, even when the temperature outside drops to -15°C. It’s the ideal solution for retrofit projects and homes in need of reliable, high-performance heating.​

Engineered for efficiency, the Daikin Altherma 4 H features in-house designed and manufactured components, including a compressor, fan, and microchannel heat exchanger, all specially developed for this advanced heat pump. These advancements not only reduce energy costs but also ensure reliable operation year-round.​

With sound levels as low as 28 dBA at 3 meters, this is the quietest heat pump in its class – perfect for applications where quiet operation is specially required.

With a best-in-class heating capacity, the Daikin Altherma 4 H provides maximum output at -7°C ambient temperature, for the 55°C leaving water temperature required for older radiators.

This makes it a dependable choice for consistent warmth, especially in challenging climates. Operating down to -28°C, the Daikin Altherma 4 H ensures homeowners stay comfortable, no matter the weather.​

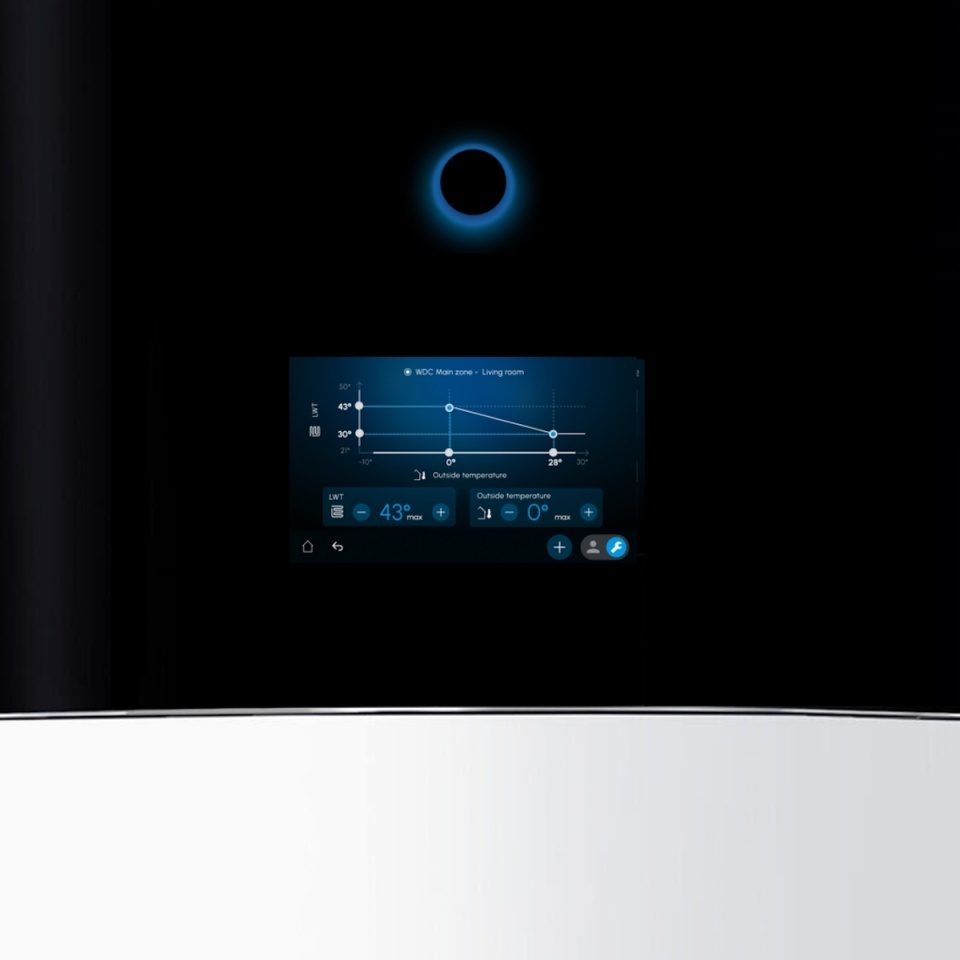

The Daikin Altherma 4 H features an advanced 5" color touchscreen MMI, designed to simplify both setup and everyday use for installers and homeowners.​

Redesigned interface​
The new touchscreen MMI matches the sleek aesthetics of Daikin’s Madoka and Onecta controls, offering a modern design across devices.​

5-Inch color touchscreen​
New display makes information clearer and navigation smoother, allowing you to instantly understand the Daikin Altherma 4 H performance at a glance.​

Easy menu navigation​
Swiping through the menu brings a seamless experience, making it simple for homeowners to adjust settings and for installers to access advanced configurations.​

Enhanced installer mode​
In installer mode, additional functions become visible while keeping the menu structure consistent, ensuring a streamlined setup without unnecessary complexity.​

Block-based scheduling for heating and cooling​
Efficiently manage cooling and heating schedules with block-based programming, offering a quick way to customize temperature settings for optimal comfort and energy savings.​

Future-ready technology​
Smart Grid readiness ensures the system is prepared for the future, offering compatibility with advanced energy management solutions.​

Daikin Residential ONECTA App, with voice control

• Control from anywhere your residential units for heating, cooling, air purification, …

• Multi-user, Multi-room and Multi House

• Voice control through Google Assistant & Amazon Alexa.

• Phone and tablet support

• Landscape & dark mode view

• Access to Stand By Me support

• Integrated DEMO mode

• … and many more.

1. Installation

Clip-on intermediate connectors ​
Quick, tool-free setup; no need to access the PCB.​

Fewer screws​
Reduced number of screws for faster, simpler assembly.​

Built-in anti-freeze valve & pre-mounted ambient temperature sensor​
Ready-to-use components minimize setup time and ensure reliable performance.​

2. Servicing

Ergonomically positioned PCB​
Accessible at an ideal height, with all parts easily replaceable, streamlining servicing.​

Remote installer settings capability ​
Enables remote finetuning without on-site visits, reducing maintenance trips.

3. Manufacturing

Automated microchannel heat exchanger production​
Precision automated process minimizes human error, ensuring high-quality, consistent performance.​

Sustainable design with recycled materials​
Cover grill made from over 50% recycled industrial plastics and microchannel heat exchanger made in aluminium, supporting eco-friendly manufacturing.​

Technical specifications Altherma 4 EPVX-EPSK

Efficiency data
Heating capacity: A-10 / W35 Max. 8.3 kW, A-7 / W55 Max. 9.5 kW, A-10 / W55 Max. 8.4 kW
COP (cf. EN14511): A7 / W35 4.94, A-7 / W35 2.85
Cooling capacity / EER: A35 / W7 Nom. 7.84 kW / 3.62, A35 / W18 Nom. 6.37 kW / 5.63
Heating Flow Temperature 55 °C, SCOP / ηs 3.99 / 157%, Efficiency Class A+++
Heating Flow Temperature 35 °C, SCOP / ηs 5.14 / 203%, Efficiency Class A+++
Domestic Hot Water ηdhw 116%, Efficiency Class / Consumption Profile: A+ / L

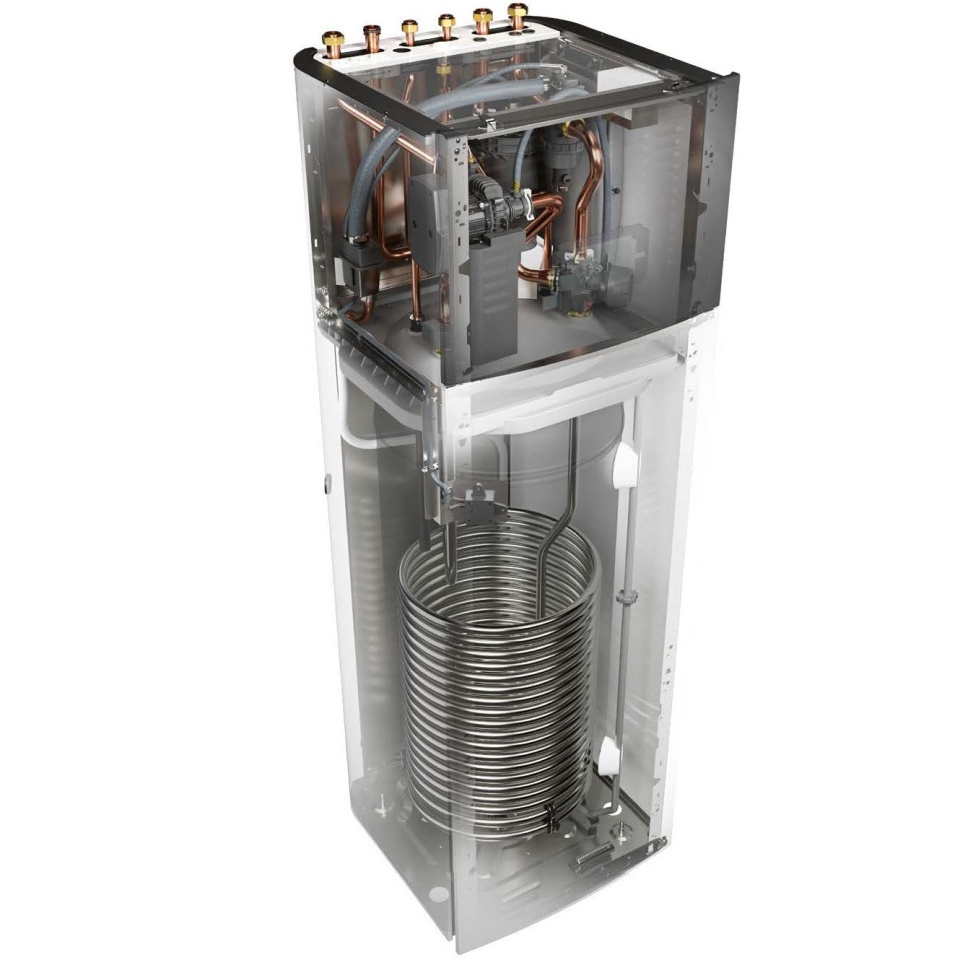

EPVX Indoor Unit
Dimensions H x B x A 1,855 x 595 x 634 mm
Gross Dimensions Height 1,950 mm
Recommended Room Height 2,155 mm
Weight 111 kg

Hot Water Tank
Water Volume 230 liters
Water Temperature Max. 70 °C
Anti-corrosion protection
Insulation material: polyurethane foam
Heat loss 1.4 kWh/24h
Pump type Grundfos
Heating operating range on the water side: Min. 15 ~ Max. 75 °C
Cooling on the water side Min. 7 ~ Max. 22 °C
Domestic hot water on the water side Max. 65 °C
Connections: Heating 1 ¼" IG, Cooling and Hot water ¾" IG
Power supply 3~ 400 V / 50 Hz
Recommended fuse B 16
Protection class IP X0
Backup electric resistance 9 kW (in 1 kW steps)

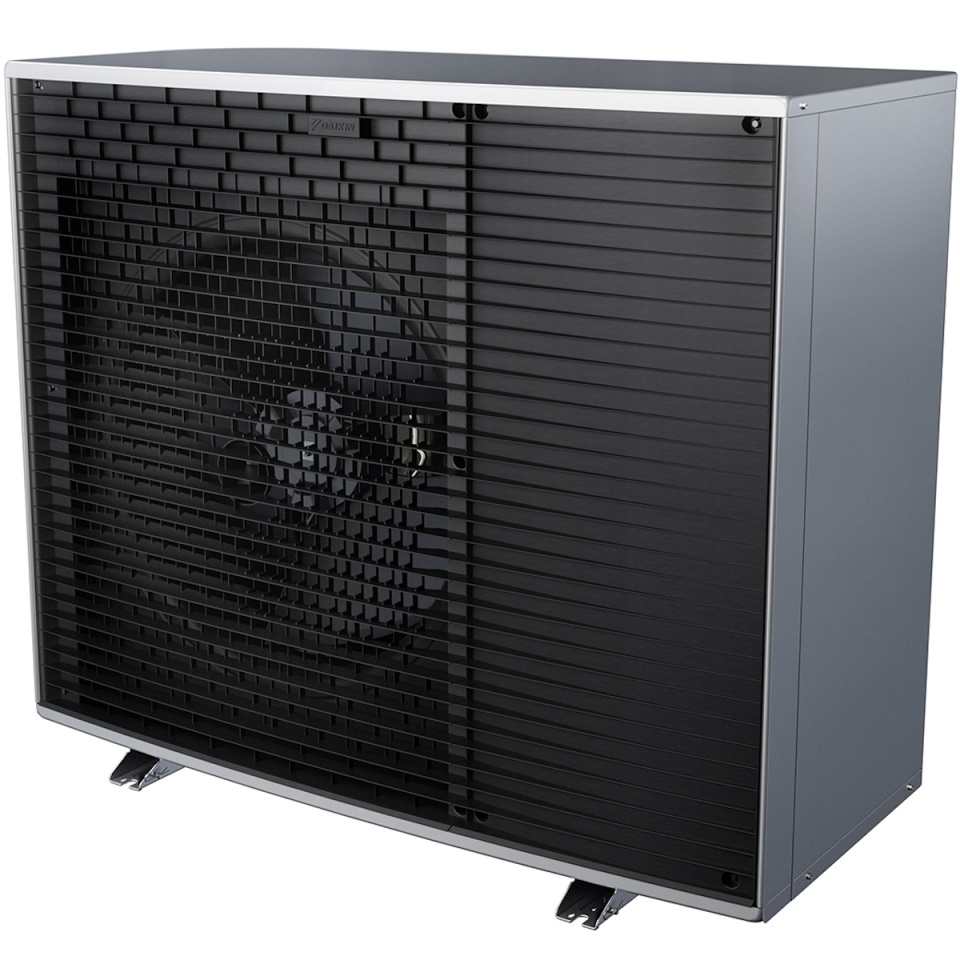

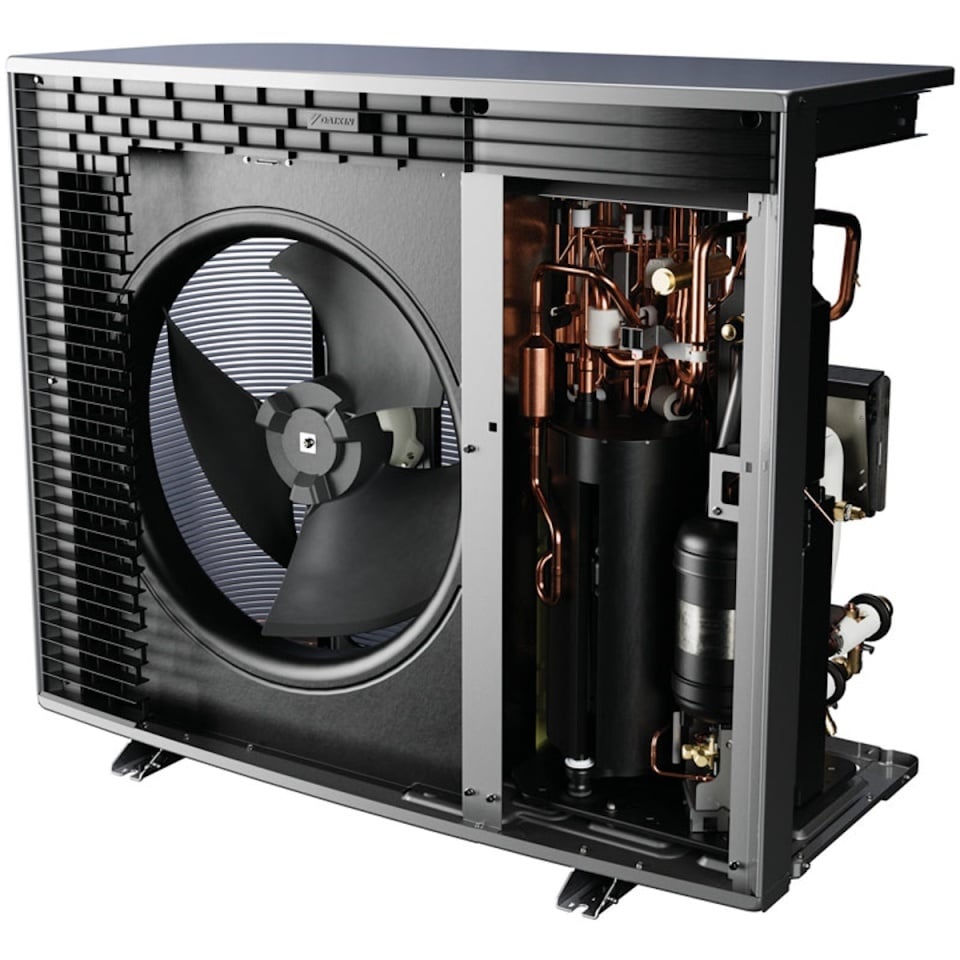

EPSK outdoor unit

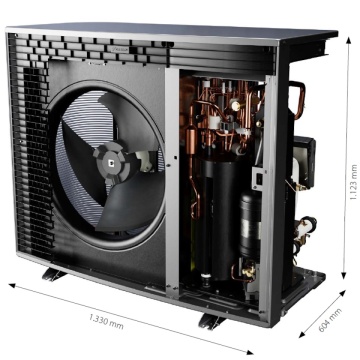

Dimensions H x W x D 1,123 x 1,330 x 604 mm
Weight 178 kg
Completely hermetic scroll compressor
Operating temperature range Heating: Min. -28 ~ Max. 25 °C
Operating temperature range Cooling: Min. 10 ~ Max. 43 °C
Operating temperature range Hot water: Min. -28 ~ Max. 40 °C
Refrigerant Type / GWP R-290 / 0.02 (IPCC6)
Refrigerant charge / CO2 equivalent 1.0 kg / 0.00002 CO2 equivalent
Pipe length AG – IG Max. 20 m (at 1 ¼"), 50 m (at 1 ½")

Noise level
Heating ErP 47 dB(A)
Connections: Flow / Return 1 ¼" (AG)
Power supply 3~ / 400 V / 50 Hz
Recommended fuse C 16 A
