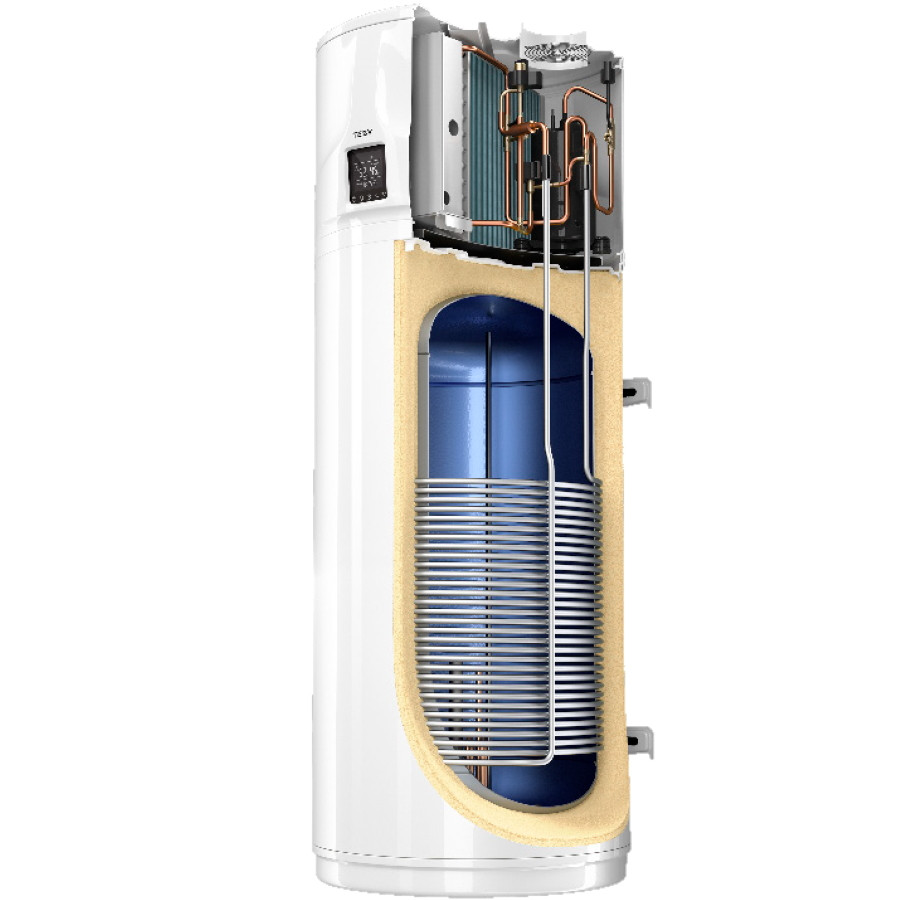

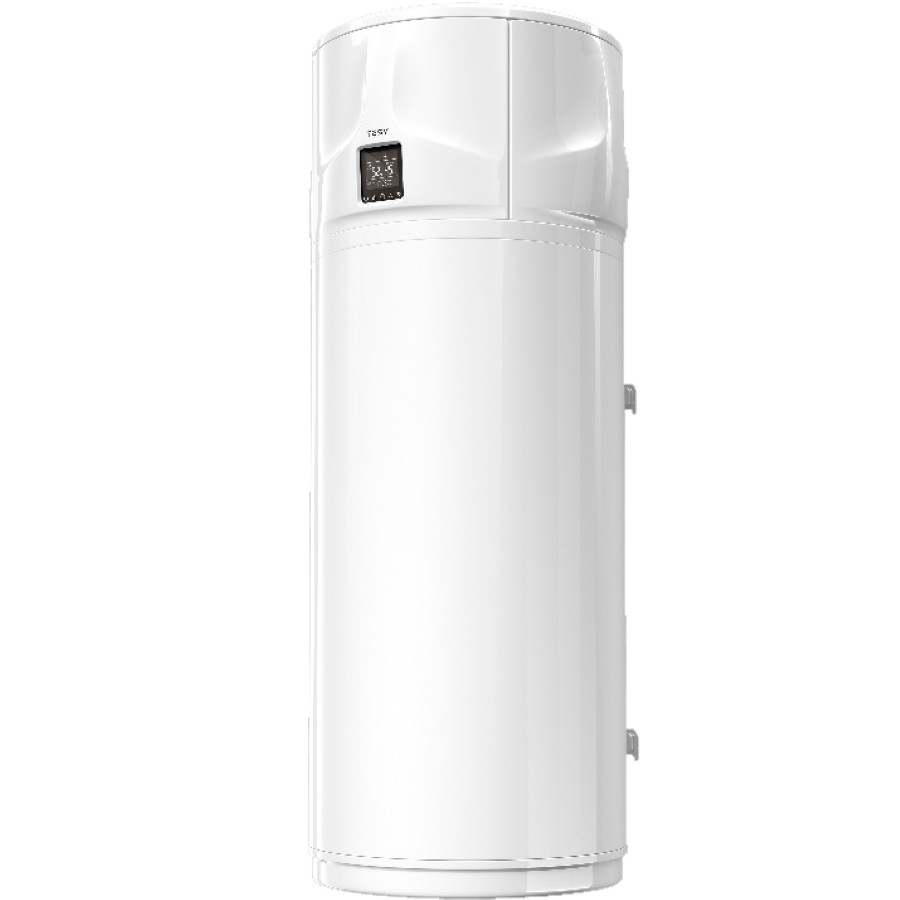

Air-to-Water Heat Pump Water Heater Aquathermica Compact HPWH 3.2 150
Description
Air-to-Water Heat Pump Water Heater Aquathermica Compact HPWH 3.2 WH 150 U01
AquaThermica Compact is a wall-hung air-to-water heat pump water heater for domestic hot water production. Environmentally friendly product, operating with renewable energy sources resulting in lower CO2 emissions.
An environmentally friendly product, operating with renewable energy sources resulting in lower CO2 emissions.
- The highest energy efficiency class A+
- Operates within a wide temperature range of the incoming air starting from -5°C to 43°C.
- Heats up water to 60° C with the heat pump only
- Precise measuring the refrigerant cycle for better performance
- Ecological refrigerant R513
- Up to 75% lower electricity consumption
- Can be connected to a photovoltaic panel
- Automatic anti-legionella cycle
- Self-diagnostic system
Specifications
Capacity 143 L
Energy class A+
Maximum working pressure 8 bar
Diameter 520 mm
Heating time 9:08 h:min
Declared load profile L
Electric heating element power 1.5 kW
Min. ÷ max temperature heat pump air intake (90% R.H.) -5 ÷ 43 °C
Frequency 50 Hz
Annual electricity consumption in kWh under average climate conditions 884.2 kWh
Power supply 1/N/220-240 V
Compressor Rotary
Min. ÷ max temperature installation site 4 ÷ 40 °C
Compressor protection Thermal circuit breaker with automatic reset
Average consumption 0.239 kW
Fan Centrifugal
Motor protection Internal thermal circuit breaker with automatic reset
Condenser Wrapped externally not in contact with water
CoP (DHW) 2.8
Refrigerant R513a
Refrigerant charge 760 g
CO2 equivalent 0.480
Max. quantity of hot water at 40; V40; [EN16147:2017] 178 L
Average heat pump consumption [Condition EN16147:2017 A7/W55] 0.239 kW
