Air/Water Heat Pump Vitocal 100-A AWO-M-AC-AF 101.B08 230

Description

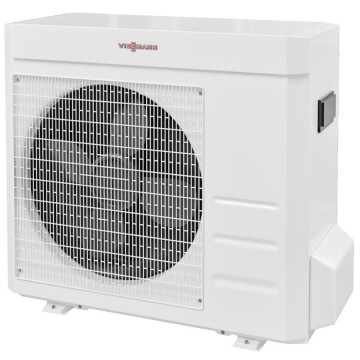

Space-saving monobloc heat pump for outdoor installation Viessmann Vitocal 100-A AWO-M-AC-AF 101.B06 230V

Features

• Air / water heat pump with electric drive for outdoor installation
• Low operating costs due to high Coefficient of Performance to EN 14511
• Maximum flow temperature: to 60 °C at -8 °C outside temperature
• Energy efficiency class: A+++

The new Vitocal 100-A air/water heat pumps cover most applications in new build and modernisation projects. With outputs between 6 and 16 kW, the specifications for convenient heat supply and domestic hot water preparation can be met.

The units, which are designed exclusively for outdoor installation, contain all the components and are quick and easy to install. By using the environmentally friendly refrigerant R32, the installer does not need a refrigerant certificate.

In comparison to conventional heat exchangers, the Vitocal 100-A has a gold-plated exchanger. Long-term tests with saline liquids have shown that no visible corrosion has occurred. This guarantees the user a long service life.

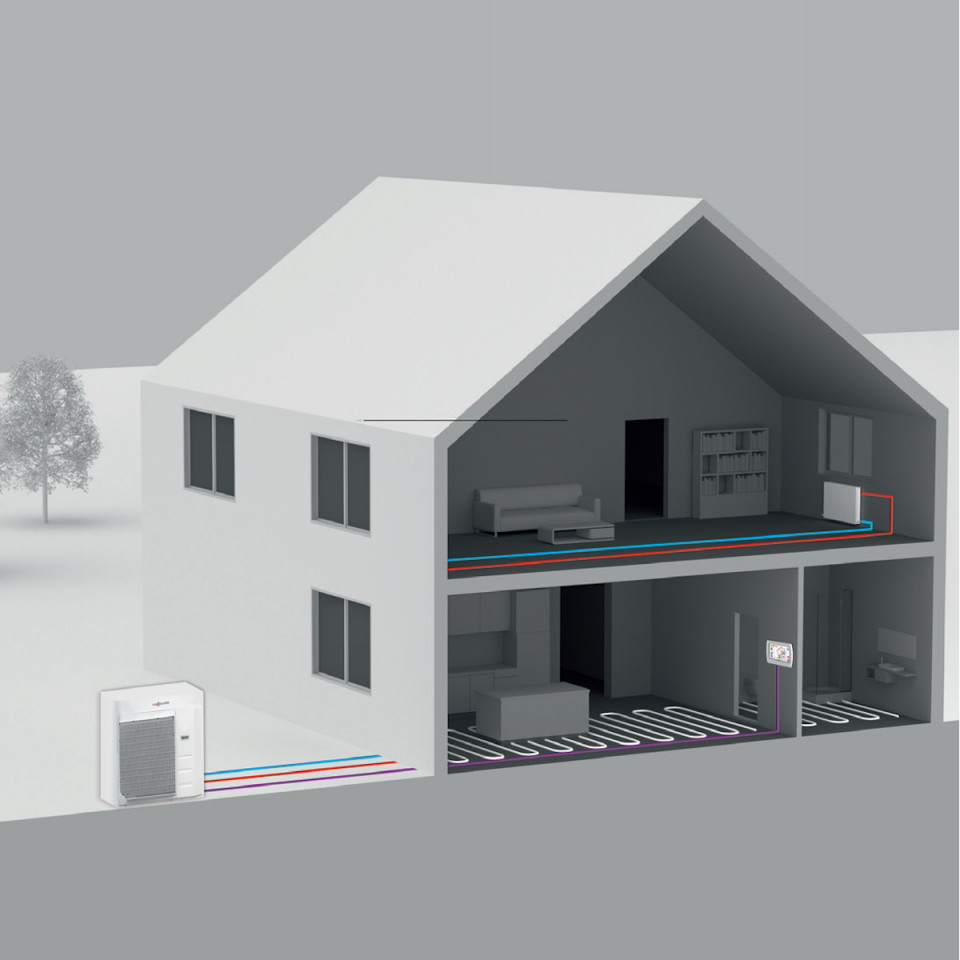

The Vitocal 100-A offers different low-cost solutions combining an external mounted buffer store, which is ideal for space saving applications, with a separate DHW cylinder.
Alternatively, a combi buffer is available comprising a buffer and DHW cylinder in one.
Comfortable wireless control with touchscreen and plain text display
The Vitocal 100-A can be operated directly on the appliance via the built-in
control unit. Standard wired and wireless heating controls can be combined with the Vitocal 100-A for convenient operation.
Viessmann Touch and Touch-Multi controls are available for extended applications.

Advantages

+ Space-saving solution for outdoor installation
+ Three power ratings for most applications
+ Recommended for new build and modernisation

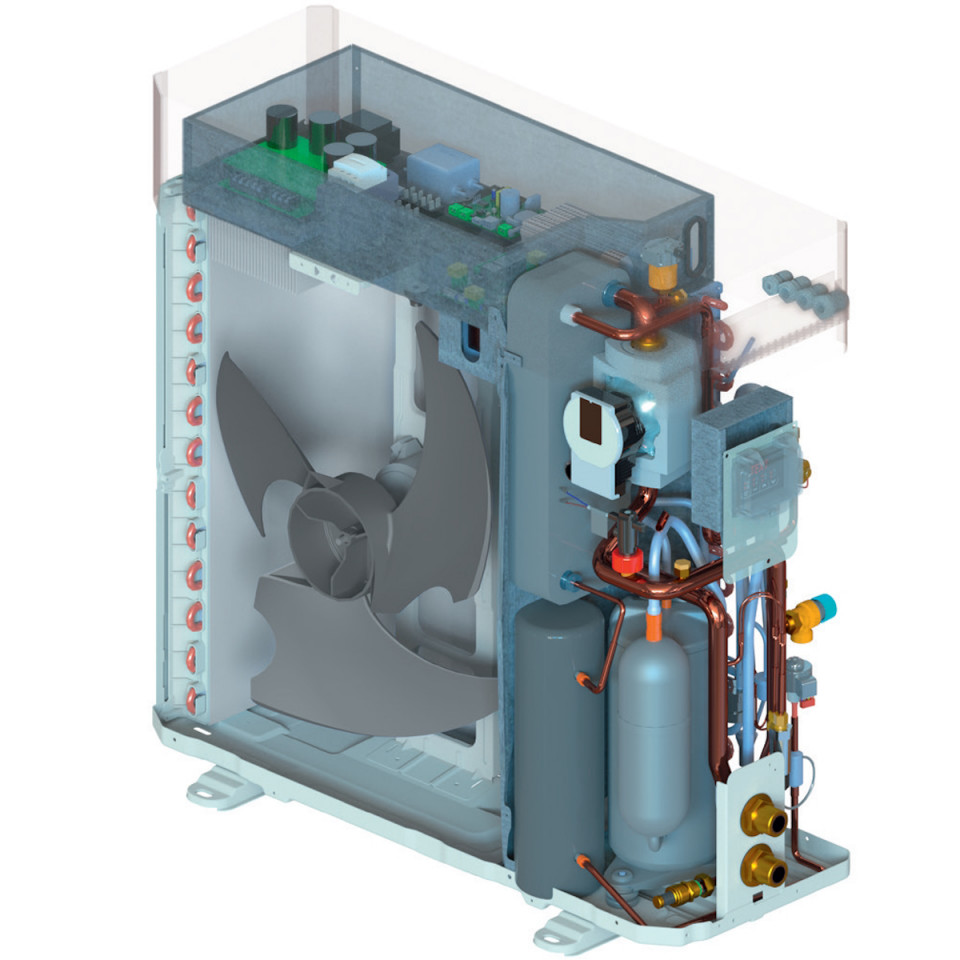

+ All components integrated in one device
+ Energy-saving power regulation
+ Installer does not require a refrigerant certificate
+ Easy and quick to install
+ Environmentally friendly refrigerant R32
+ Corrosion-resistant gold-plated heat exchanger
+ Practical remote control without special software.

Technical data Vitocal 100-A

Nivel putere (COP) the A7 4.6
Minimum/maximum power range for the A7 4.5-9.4 kW
Temperature up to 60°C
Acoustic level 62 dB(A)
Nominal output of 8.0 kW
Putere index (EER) 4.5
Max. 8.7 kW
Lățime 394 mm
Overall 830 mm
Longitude 918 mm
Greutate 66 kg.

Measure the total acoustic level, according to EN ISO 12102/EN ISO 9614-2, precision class 3 in order to function at the right time.

Putty index COP the lucru point A7/W35 conforms to EN 14511 the nominal putere.
Please note that the A35/W18 light point conforms to EN 14511.
