Altherma 3 M EDLA06E3V3 6kW monobloc heat pump

Description

Daikin Altherma 3 M EDLA06E3V3 6 kW monobloc unit Heating only

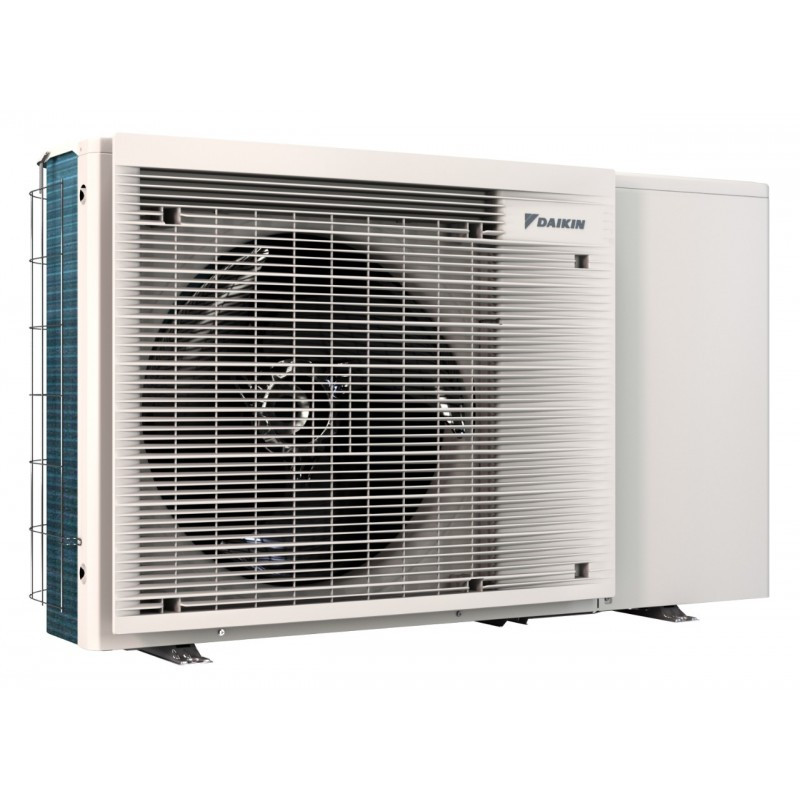

A redesigned casing

The white front grille made of horizontal lines is hiding the fan from view, reducing the perception of the sound produced by the unit.
The light grey and seamless casing is slightly reflecting the environment where the unit is installed, helping it to blend in in any decor.

Monobloc running on refrigerant R-32

Daikin is a pioneer in launching heat pumps equipped with R-32. With a lower Global Warming Potential (GWP), the R-32 is equivalent in power to standard refrigerants, but achieves higher energy efficiency and lower CO2 emissions. Easy to recover and reuse, R-32 is the perfect solution for attaining the new European CO2 emission targets.

Consistent compactness

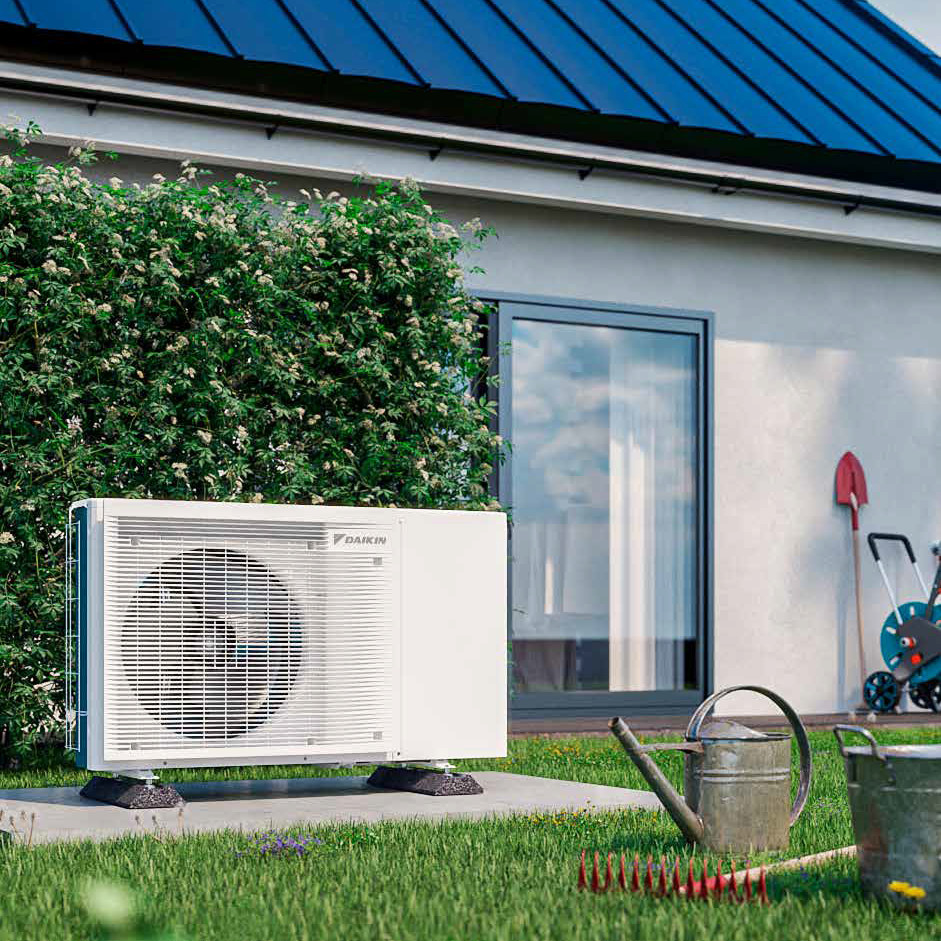

The monobloc is the ideal solution for places that have limitations on space. No additional indoor unit is required, and the monobloc can fit right under a window to save outdoor space.

Help installers and commissioning

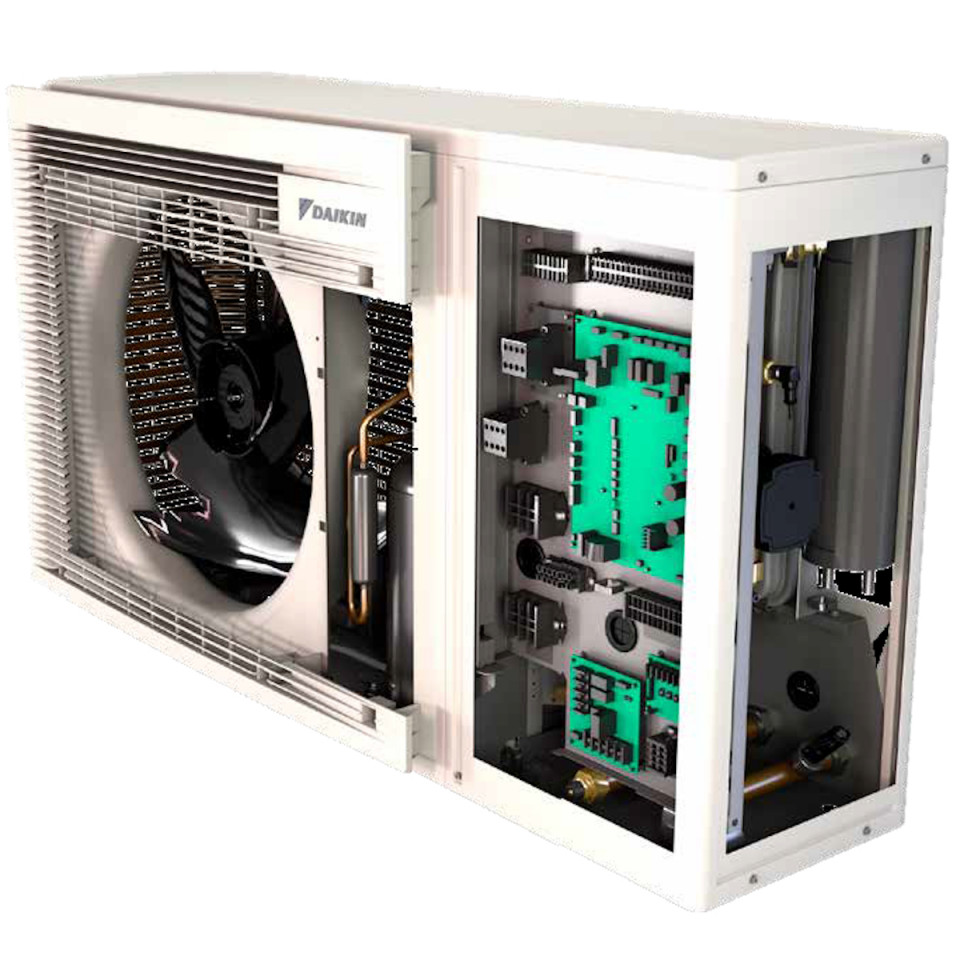

The rotary switchbox is a brand-new feature in this monobloc heat pump.
> it helps installers accessing the hydraulic and refrigerant components of the unit in an easy way.
> The service and commissioning can be then performed with ease.

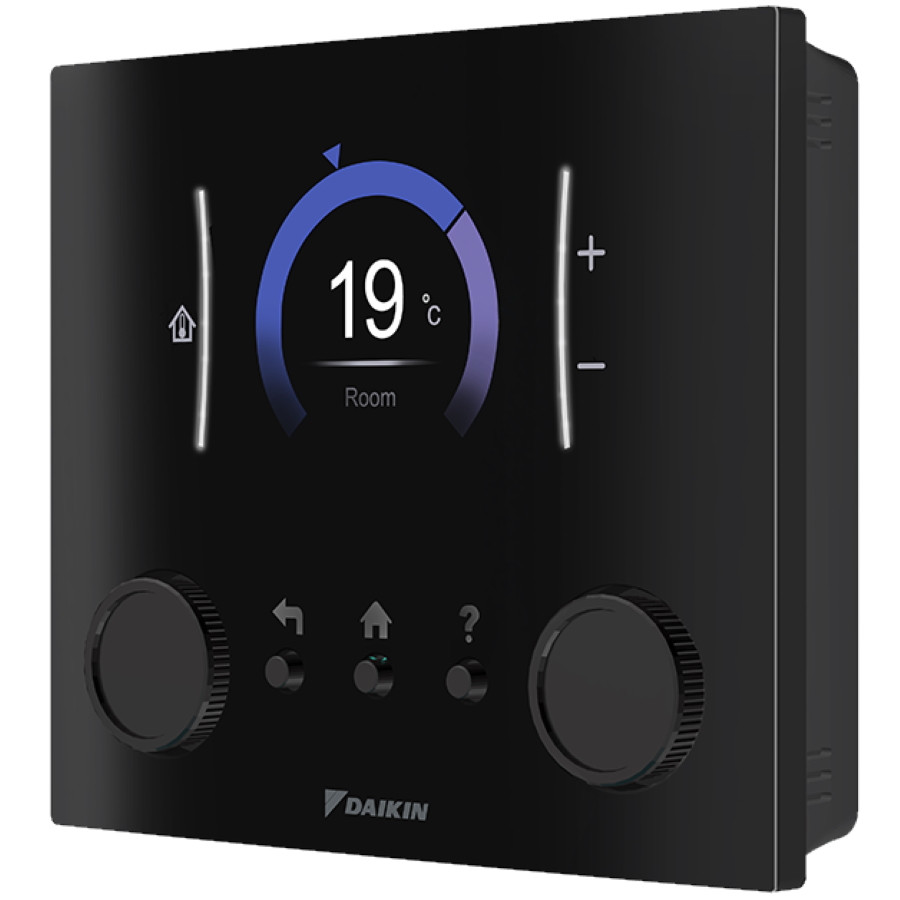

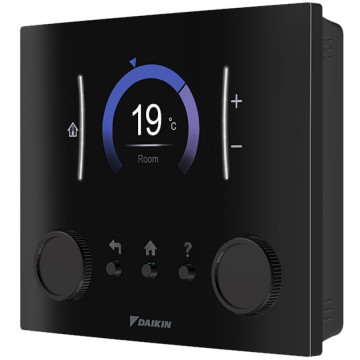

Man-Machine Interface (MMI)

Inspired by the award-winning design of the Daikin Altherma 3 indoor units, Daikin also upgraded this controller to deliver an even more user-friendly interface.

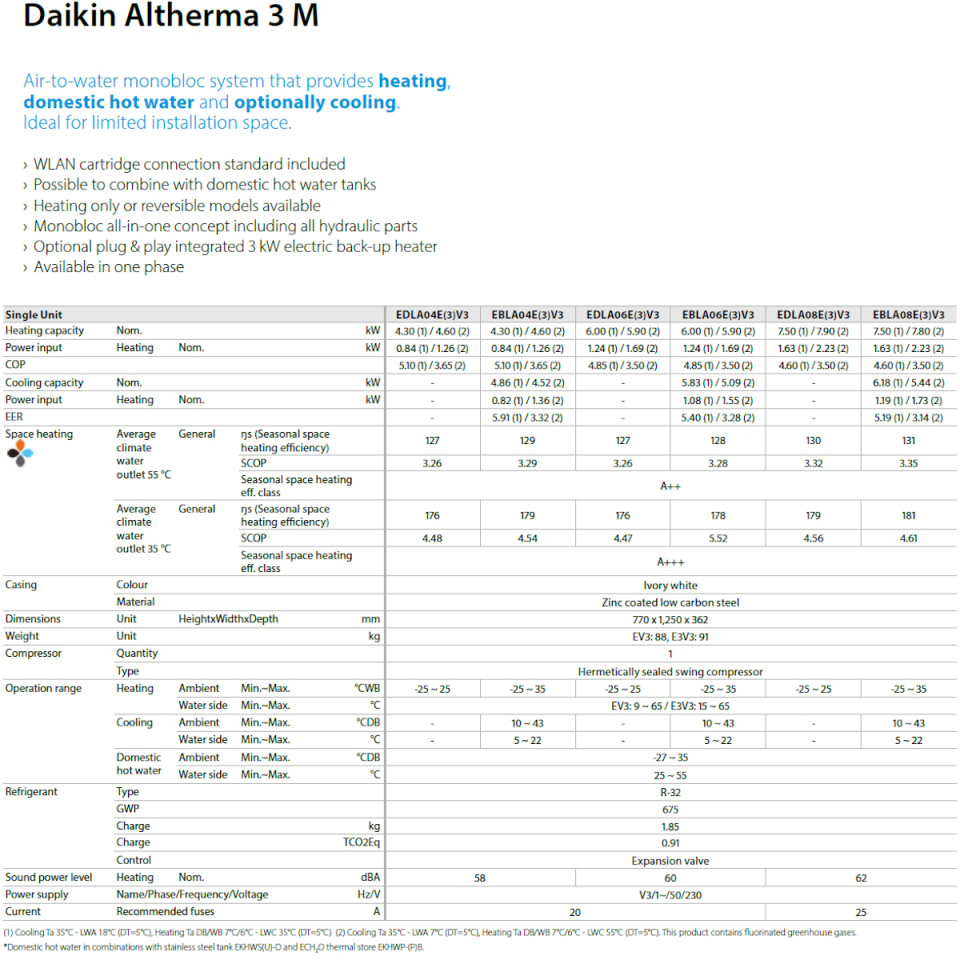

Strengthened performances

The Daikin Altherma 3 M shows improved performances:

• All-year round comfort
• Up to A+++ (space heating)
• Operation down to -25°C outside temperature
• Delivers leaving water temperature of 55°C at -15°C outside temperature
• Available in 4, 6 and 8 kW
• Suitable for small new build or recent renovations
