Automatic booster system with inverter DG-BLU 5

Description

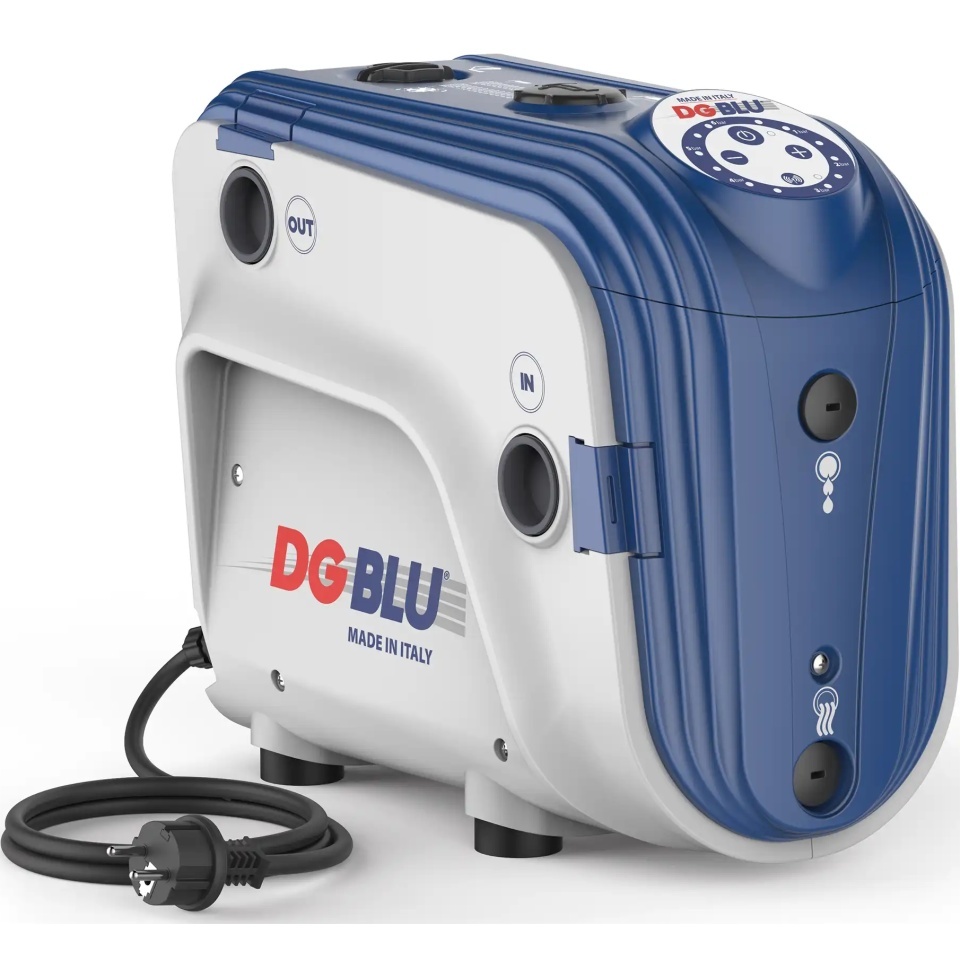

Automatic booster system with inverter Pedrollo DG-BLU 5

DG-BLU is a cutting-edge, automatic pressurization system featuring a high-efficiency, self-priming pump with multiple impellers. It comes complete with a storage tank, pressure and flow sensors, and a check valve, all designed to work quietly and efficiently.

This compact powerhouse stands out for its advanced electronic inverter control, which intelligently manages the system performance by keeping the pressure constant according to water usage.

Specifications

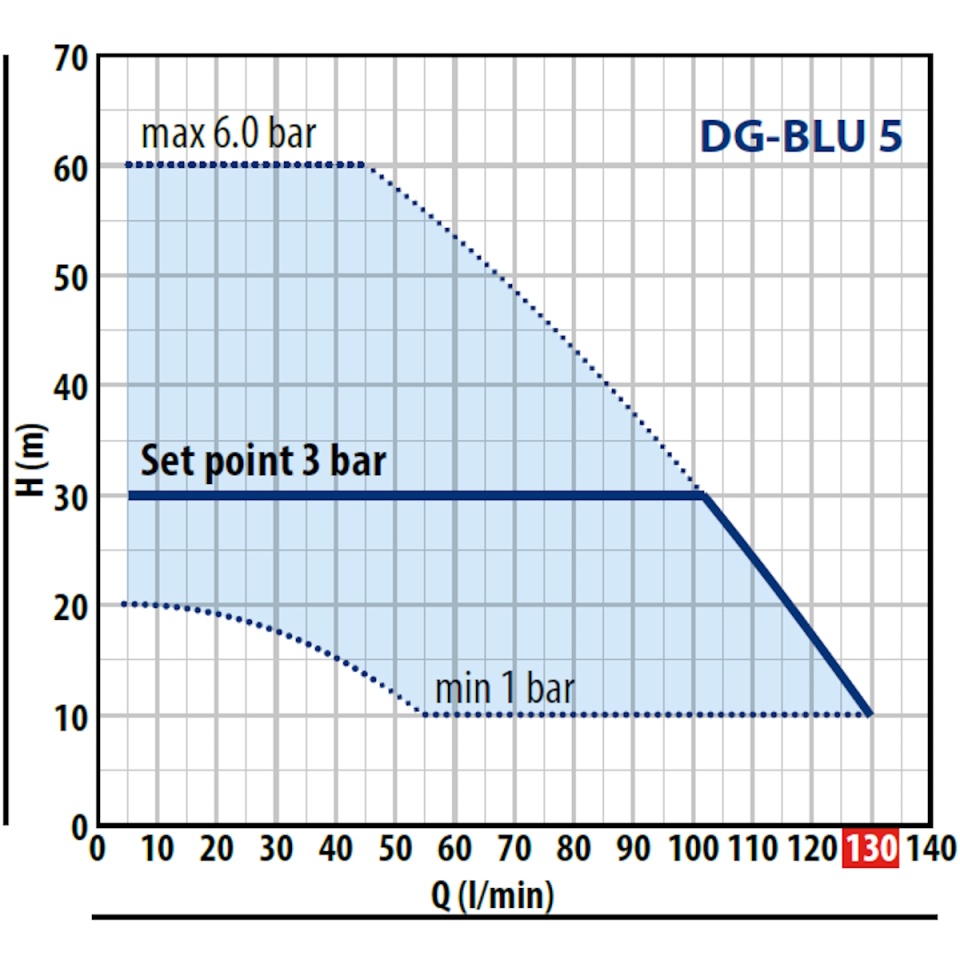

Flow rate up to 130 l/min
Head up up to 60 m
Power supply 1~ 230 V ± 10%
Manometric suction head up to 8 m
Liquid temperature between 0 °C and +40 °C
Ambient temperature between 0 °C and +40 °C
Maximum working pressure 10 bar
Ingress protection rating IP X4
