Automatic voltage regulator URZ3437 10 kVA

Description

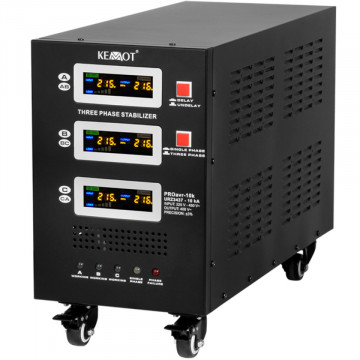

Automatic voltage regulator Kemot URZ3437 10 kVA

Rated power: 10000 VA
Input voltage range: 225 - 450 V
Minimum output voltage: 310V
Output voltage range: 400 V
Phases: 1 / 3 phases
Stabilization accuracy: ± 3%
Efficiency: 98%
Stabilization control: servo motor
Transformer: C.R.G.O. Toroidal
Indicator: LED display
Operating frequency: 50 / 60 Hz
Switch with start delay: 6 / 180 s
Case material: steel
Operating temperature: 0-40°C
Relative humidity: 10-102%
Storage temperature: -15°C ... 45°C
Protections: overload, short circuit, over/under voltage, overheating
Cooling start: at 30% of rated power
Cooling off: at 20% of rated power
Dimensions: 545 x 230 x 397 mm
Weight: 31 kg
