Boiler Condens 5300i WM 24/100 S

Name: Boiler Condens 5300i WM 24/100 S
Brand: Bosch
SKU: 7738101002

RON 19,918^.15 (VAT Included) RON 21,189^.52

Delivery costs are not included

Buy now, pay later from RON 393.31 / Month Details

Financing through Online Credit smart by BT Direct

Calculate the rate

How can we help you?

Call us: +40746095378 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

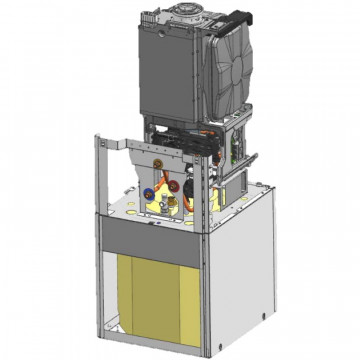

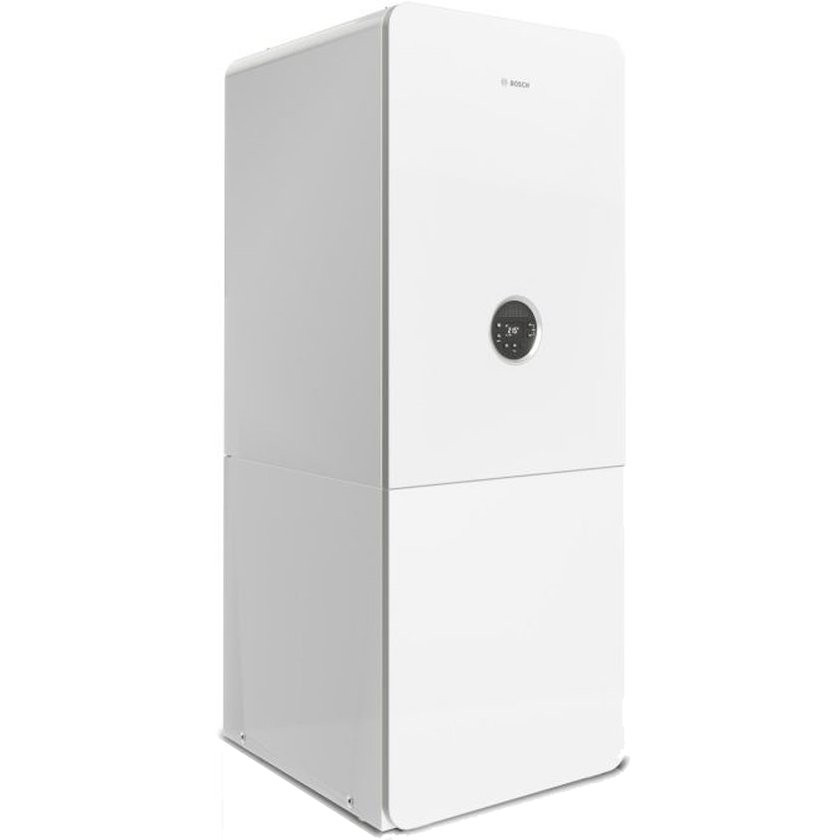

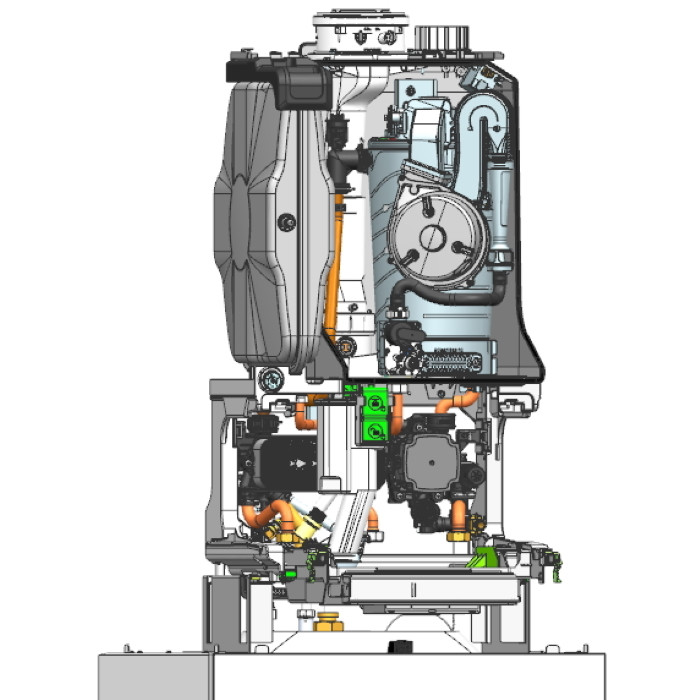

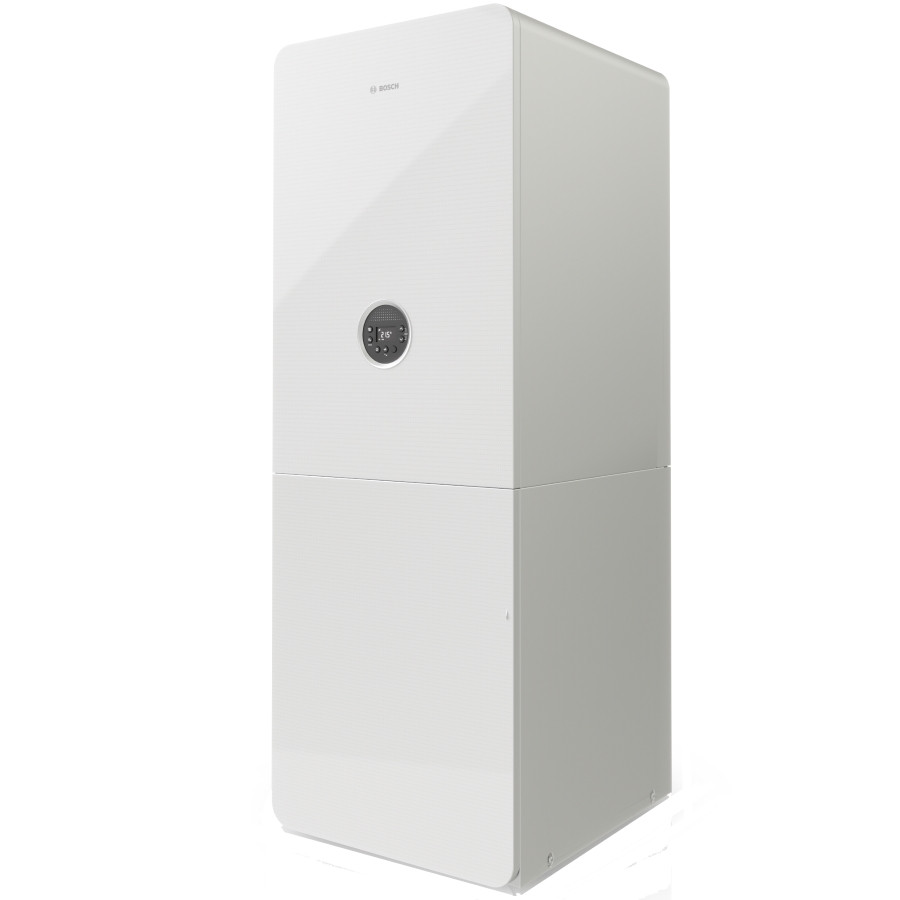

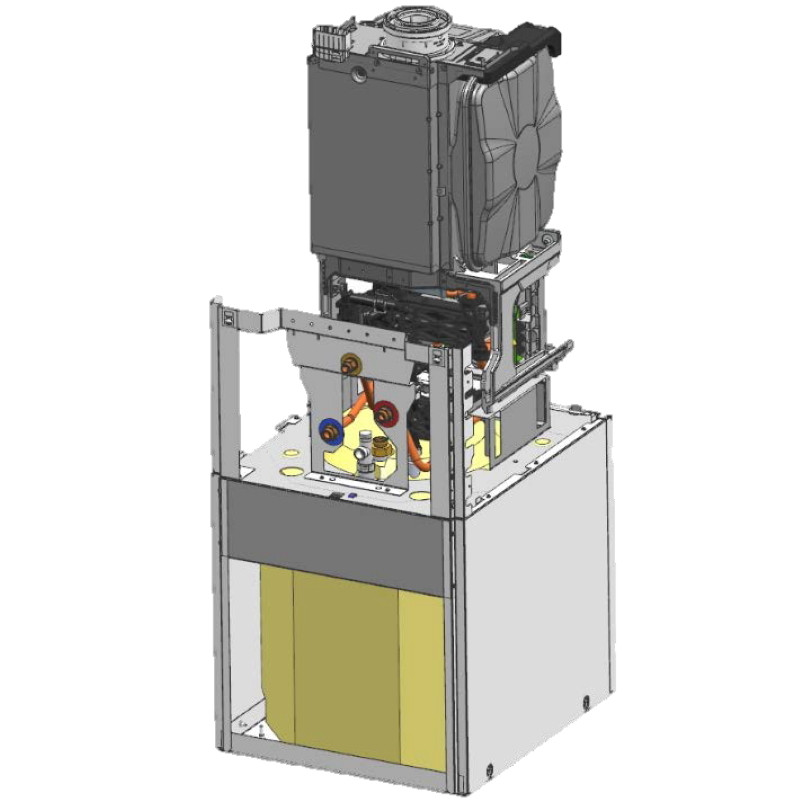

Boiler Bosch Condens 5300i WM 24/100 S

Highly energy efficient condensing boiler unit with a modulation from 3 to 24 kW for heating and up to 30 kW for DHW.

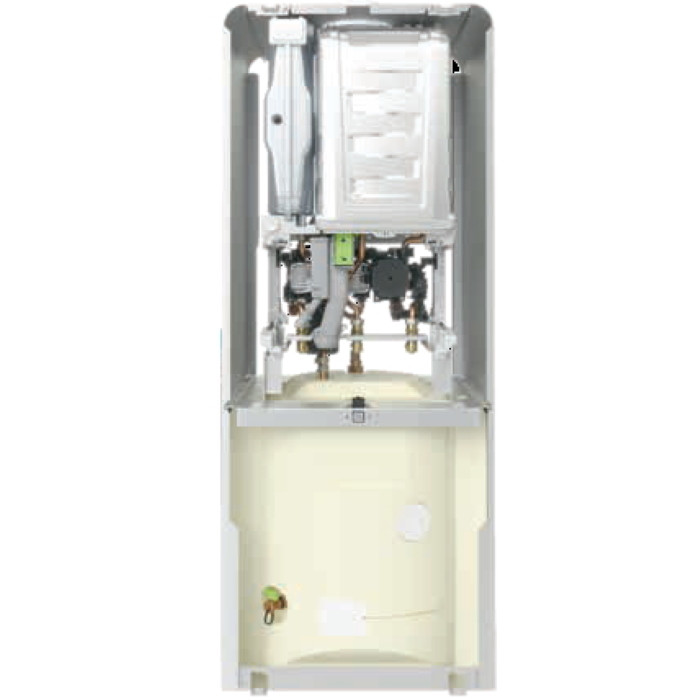

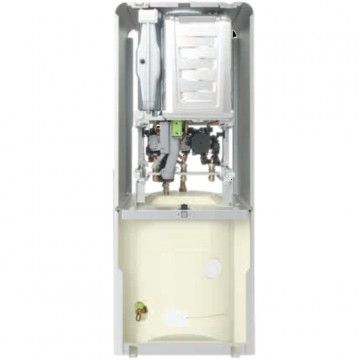

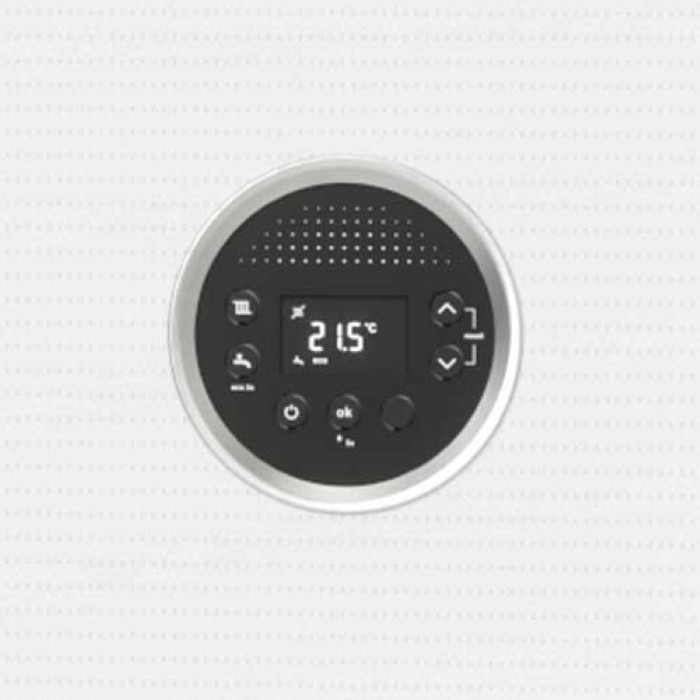

The Tank has a 100 liters build in coil tank and is equiped with Bosch control technology with integrated WDC.

Outdoor sensor, low energy pump and 12 L expansion vessel in within the delevery.

Technical Data

Thermal demand modulation range Q = 3.1‒30 kW, Nominal thermal load Qnw = 30 kW. Nominal heating load adjustment range Qn = 12.3‒24.5 kW. Nominal thermal power adjustment range (80/60°C) Pn = 11.9‒23.8 kW. Nominal thermal power adjustment range (50/30°C) Pcond = 12.6‒25.3 kW. Nominal thermal power adjustment range (40/30°C) = 12.7‒25.4 kW.

Connection value Methane gas G20 (Hi(15°C) = 9.5 kWh/m3) 3.2 m3/h 3.2 ‒ Liquefied gas (Hi(15 °C) = 12.9 kWh/kg) 2.3 kg/h. Admissible connection pressure Methane gas (G20) =17‒25 mbar ‒ Liquefied gases = 25–35 mbar.

Expansion vessel Pressurization bar 0.75 bar. Total volume = 12 liters.

Combusted gas mass flow at minimum/maximum rated thermal power =13.6/1.5 g/s. Flue gas temperature 80/60°C at maximum/minimum nominal heat output = 78/57°C. Flue gas temperature 40/30°C at maximum/minimum nominal heat output = 78/30°C. NOx class: 6.

The maximum amount of condensate (tR = 30°C) = 1.6 l/h. The pH value approx. 4.8.

Electrical voltage 230 V AC. Frequency 50 Hz. Maximum absorbed power (Standby) = 1.8 W. Maximum absorbed power (heating mode) = 52 W. Maximum absorbed power boiler operating mode = 96 W. Energy efficiency index (EEI) heating circuit pump = 0, 20.

Sound emission level (heating) = 45 dB(A). Sound emission level (hot water) = 51 dB(A).

IP protection mode IPX2D. Maximum tour temperature 82°C. Maximum admissible working pressure (PMS) heating 3 bar. Maximum admissible working pressure (PMS) hot water 10 bar. Allowed ambient temperature 0-50°C. Amount of hot water = 7.0 liters.

Weight with/without packaging = 125.5/115.0 kg. Dimensions (W x H x H) (H: without the flue gas connection module = upper edge of the appliance) = 600x1531x669 mm.

DHW Tank technical data
Useful volume = 100.8 liters. Hot water temperature Setting value 40-60°C. Maximum volume flow = 16.5 l/min. Maximum electric power consumption (boiler supply) = 6.86 kWh. Specific flow cf. EN13203-1 (dT = 30 K) =22.9 l/min.

Maximum working pressure (PMW) = 10 bar. Maximum continuous power according to DIN4708 at: TV = 75°C and TSp = 60°C = 540 l/h. Minimum heating time for TK = 10°C to TSp = 60°C with TV = 75°C =18.1 min. Power index at TV = 75°C (maximum tank load power) NL = 2.8.
