Booster Set AJ 50/60 50 lt vessel

Description

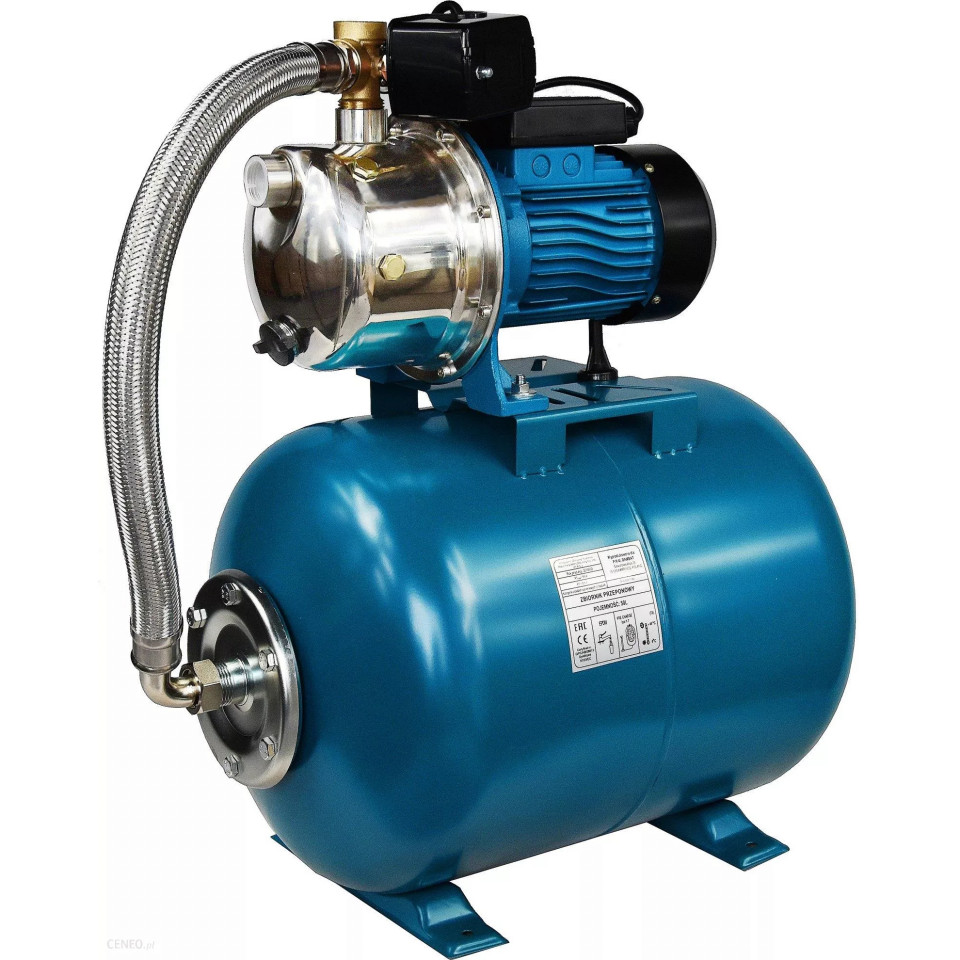

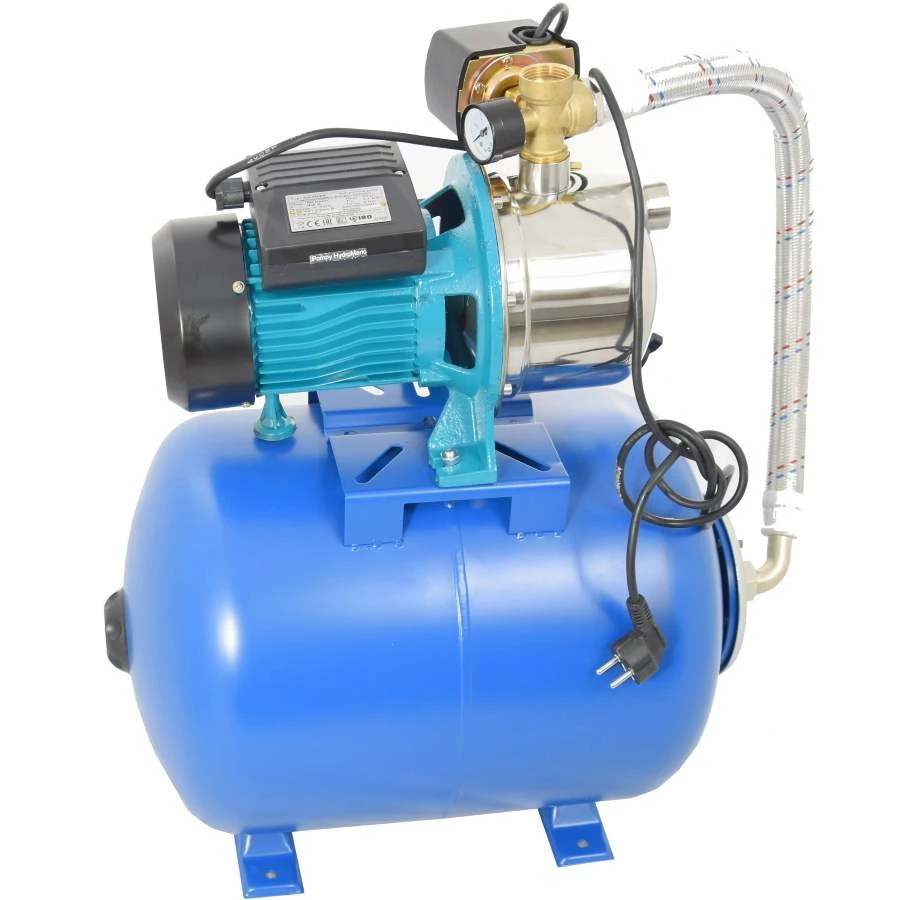

Booster Set Ibo AJ 50/60 50 liters vessel

Complete booster set, mounted with diaphragm tank.

Diaphragm container with 50 liters.

Used for supplying cold water to holiday homes and households.

Single-stage centrifugal pump.
The pump housing is made of stainless steel, the rotor is made of Noryl, the shaft is sealed by sliding with the help of a gasket ring. The increased intake effect is due to the integrated venturi tube mechanism.
Suction depth is up to 8 m. Absorbed power of 1.1 kW single-phase current 230 V ~/ 50 Hz, with integrated thermal protection system. The diameter of the connections are 1" x 1".

It is recommended to use the accessories on the installation to disconnect the pump in case the well remains without water. You can find them in the accessories section, pressure switches branch.

Specifications

Weight 19 kg
Maximum suction depth 8 m

Tank capacity 50 liters

Insulation class Class B

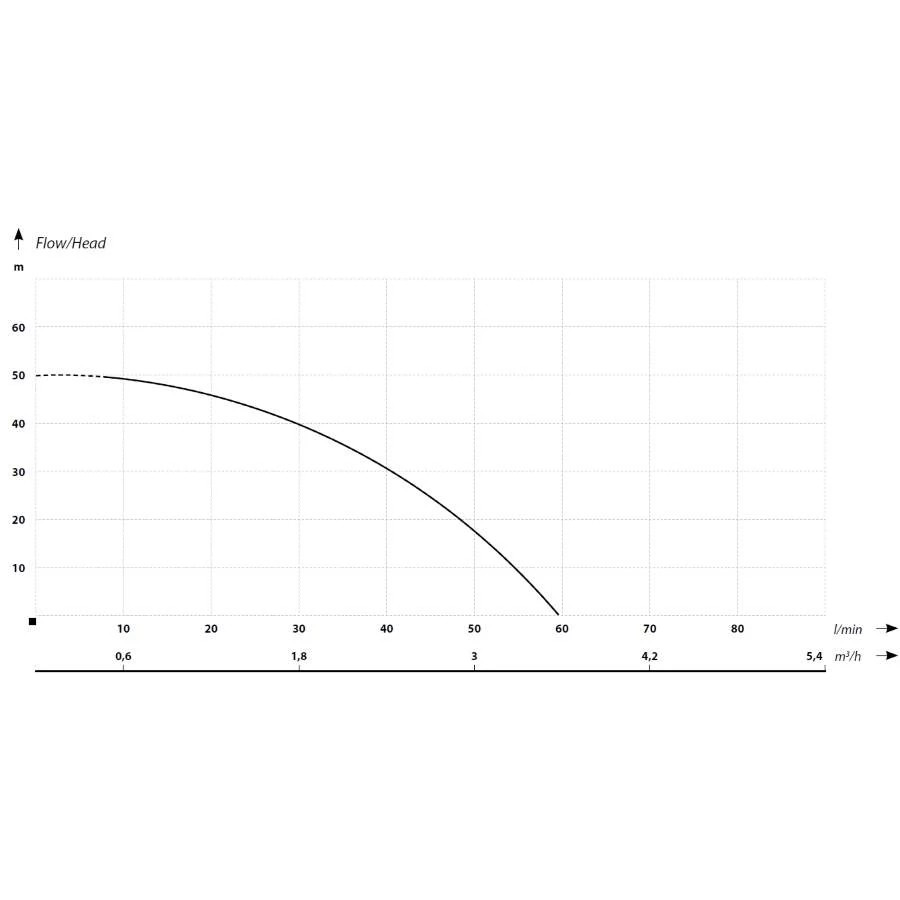

Maximum flow rate 60 l/min or 3.6 m3/h

Discharge diameter 1"

Degree of protection against moisture IP 44

Maximum discharge height 50 m

Engine power (230V) 1100 W

Maximum water temperature 35°C
