Bosch EasyControl Adapter

Name: Bosch EasyControl Adapter
Brand: Bosch
SKU: 7736701654
Price: 306.75 RON
Availability: InStock

RON 306^.75 (VAT Included)

RON 253^.51 (VAT excluded)

Delivery costs are not included

Buy now, pay later from RON 8.18 / Month Details

How can we help you?

Call us: +40740015767 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

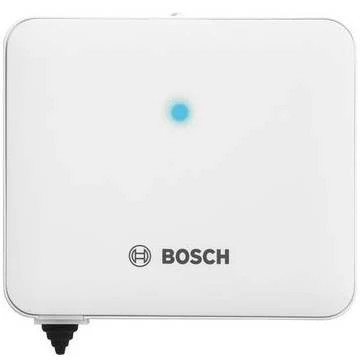

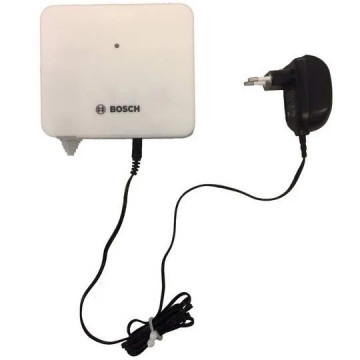

Bosch EasyControl Adapter

You will need the adapter if you want to use the Bosch EasyControl with the below heating appliances:

modulating heating systems with OpenTherm-protocol
on/off-appliances and district heating systems
older boilers with iRT-protocol

Check the appliance’s installation instructions to check which communication protocol your boiler uses.

The adapter switches between the heating system and the EasyControl CT200 thermostat. For best results, install the adapter right next to the heating system. Then simply plug in the power plug - ready!

Note: When connected to equipment with an On-Off connection, the EasyControl CT200 thermostat provides access only to the main functions, namely the remote control and programming of the heating equipment via the Internet, as well as the presence detection function.

EasyControl adapter instructions

Power supply = 20 Vdc. Rated current consumption <2.5 W. Dimensions (width x height x depth) = 134 x 115 x 37 mm. Weight = 230 gr. Permissible ambient temperature 0-50 ° C; Permissible storage temperature 0-60 ° C. Permissible relative humidity 10-90%. IP20 protection mode.

Rated current (minimum) @ 18 V: 10 mA. Contact load (maximum) @ 250 VAC = 5 A. Cable cross section (maximum) = 2.5 mm². EasyControl adapter cable length (maximum) - thermal generator = 3 m. EasyControl adapter cable length (maximum) - thermostat = 100 m.
