Circulator pump AGE4 40-180
Description

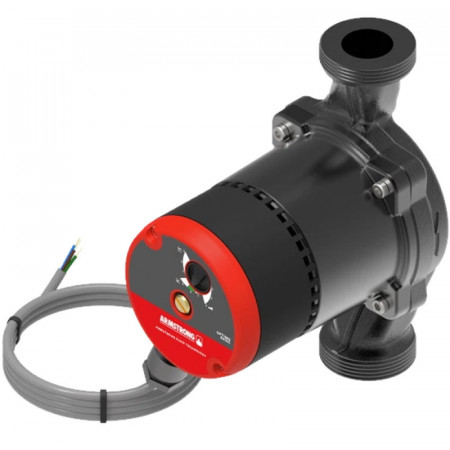

Circulator pump Armstrong AGE4 40-180 flanged
The Armstrong AGE4 is a high-efficiency, variable speed wet rotor Circulator with ECM technology and permanent magnet rotor. It offers operating flexibility and an industry-leading feature set to support a wide range of heating and cooling applications.
Main areas of use:
• heating
• cooling
• plumbing applications
Controls function:
You can make adjustments with the integrated control keys at the front.
The LED display shows the total electrical input power as a numeric value
in [W] watts. Different icons at the top of the display show the function,
setting and the modes of operation.
Pump features
• LED display
• manual start-up feature
• smooth running
• very low energy consumption
• collective fault signal
• convenient operation
• front facing integrated terminal box
• automatic adjustment to pressure conditions
Specifications AGE4
Rate of flow: 25.2 m3/h
Pressure head: 18 m
Control range: 25-1100 W
Media temperature: +2 °C to +110 °C
Installation length: 220 mm
Circulator connection: DN40 flanges
Protection class: IP 44
Insulation class: F
Nominal pressure: 6/10 bar
EEI: ≤ 0.23.
Materials
Pump housing Cast Iron
Impeller PES GF 30
Shaft Stainless steel AISI 420
Bearing Graphite
Bearing plate Stainless steel
Can Stainless steel AISI 316
Temperature range
Ambient temperature: 0 °C to +40 °C
Temperature class: TF 110
Media temperature: +2 °C to +110 °C
