2%
Circulator Pump Wilo Yonos PICO1.0 25/1-6
RON 1,114.30
(VAT Included)
RON 1,138.80
Delivery costs are not included
Financing through Online Credit smart by BT Direct
How can we help you?
Description

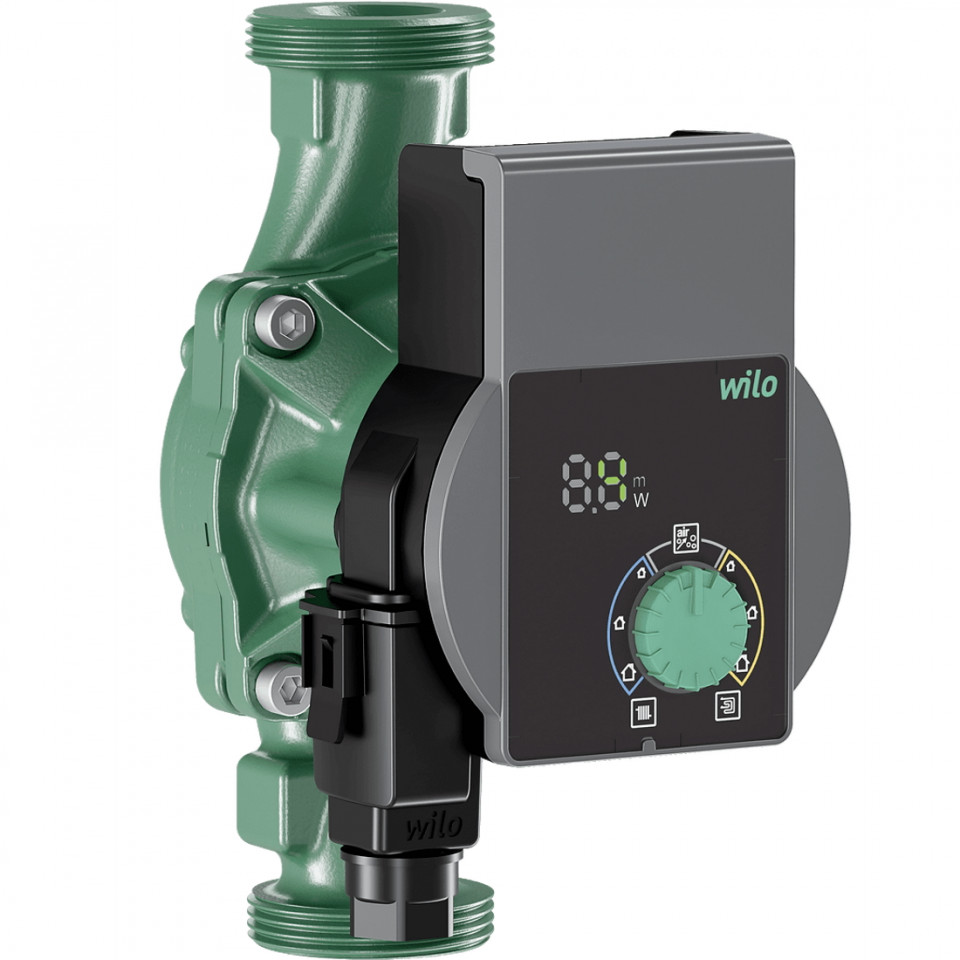

Circulator Pump Wilo Yonos PICO1.0 25/1-6
High-efficiency pump Wilo-Yonos PICO1.0, electronically controlled. Maintenance-free glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control for continuous differential pressure control.
Can be used for all heating and air-conditioning applications.
Control mode can be selected in accordance with the radiator/underfloor heating application.
Standard-equipped with:
- Preselectable control modes for optimum load adjustment:
- Constant differential pressure (Δp-c)
- Variable differential pressure (Δp-v)
- LED display:
- Display of delivery head for setting
- Display of the current consumption in watts
- Display of fault messages (error codes)
- Display of the activated pump venting function
- Manual pump venting function for venting the rotor chamber
- Integrated motor protection
- Automatic deblocking function
- Quick electrical connection with Wilo-Connector
| Operating Data | |
|---|---|
| Fluid temperature T | -10 °C |
| Ambient temperature T | -10 °C |
| Maximum operating pressure PN | 10 bar |
| Minimum suction head at 50 °C m | 0.5 m |
| Minimum suction head at 95 °C m | 3 m |
| Minimum suction head at 110 °C | 10 m |
| Motor data | |
|---|---|
| Energy efficiency index (EEI) | 0.20 |
| Interference emission | EN 61000-6-3 |
| Interference immunity | EN 61000-6-2 |
| Mains connection | 1~230 V, 50/60 Hz |
| Power consumption P1 max | 40 W |
| Min. speed nmin | 700 1/min |
| Max. speed nmax | 4200 1/min |
| Protection class motor | IPX4D |
| Threaded cable connection | 1 x PG11 |
| Materials | |
|---|---|
| Pump housing | Cast iron |
| Impeller | PP-GF40 |
| Shaft | Stainless steel |
| Bearing | Carbon, metal-impregnated |
| Installation dimensions | |
|---|---|
| Pipe connection on the suction side DNs | G 1½ |
| Pipe connection on the discharge side DNd | G 1½ |
| Port-to-port length L0 | 180 mm |
| Ordering information | |
|---|---|
| Brand | Wilo |
| Product description | Yonos PICO1.0 25/1-6 |
| Net weight, approx. m |
|
Details
SKU
4248084
Categories
Weight
2.2 kg
Brand
Physical Characteristics
Connection
1
Material
Cast Iron
Colour
Green, Grey
Power
Electric Power
less 300 W
Thread / Flanges
Thread
Pump Type
Circulation Pump
