Circulator Pump Yonos PICO1.0 25/1-6

Name: Circulator Pump Yonos PICO1.0 25/1-6
Brand: Wilo
SKU: 4248084
Price: 1035.44 RON
Availability: InStock

RON 1,035^.44 (VAT Included) RON 1,298^.72

RON 855^.73 (VAT excluded)

Delivery costs are not included

Buy now, pay later from RON 23.85 / Month Details

How can we help you?

Call us: +40740015767 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

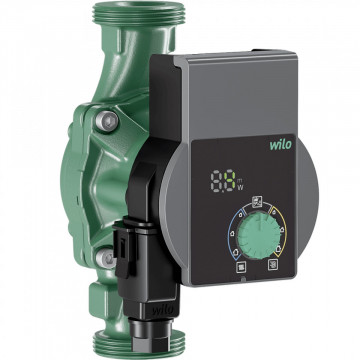

Circulator Pump Wilo Yonos PICO1.0 25/1-6

High-efficiency pump Wilo-Yonos PICO1.0, electronically controlled. Maintenance-free glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control for continuous differential pressure control.

Can be used for all heating and air-conditioning applications.

Control mode can be selected in accordance with the radiator/underfloor heating application.

Standard-equipped with:

Preselectable control modes for optimum load adjustment:
- Constant differential pressure (Δp-c)
- Variable differential pressure (Δp-v)
LED display:
- Display of delivery head for setting
- Display of the current consumption in watts
- Display of fault messages (error codes)
- Display of the activated pump venting function
Manual pump venting function for venting the rotor chamber
Integrated motor protection
Automatic deblocking function
Quick electrical connection with Wilo-Connector

Operating Data
Fluid temperature T	-10 °C
Ambient temperature T	-10 °C
Maximum operating pressure PN	10 bar
Minimum suction head at 50 °C m	0.5 m
Minimum suction head at 95 °C m	3 m
Minimum suction head at 110 °C	10 m

Motor data
Energy efficiency index (EEI)	0.20
Interference emission	EN 61000-6-3
Interference immunity	EN 61000-6-2
Mains connection	1~230 V, 50/60 Hz
Power consumption P_{1 max}	40 W
Min. speed n_min	700 1/min
Max. speed n_max	4200 1/min
Protection class motor	IPX4D
Threaded cable connection	1 x PG11
