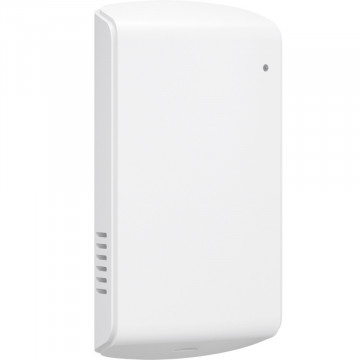

CO2 Sensor ViCare 7377019
Description
CO2 Sensor ViCare Viessmann 7377019
(Low Power Radio Communication)
Battery operated CO2, temperature and humidity sensor used for air quality monitoring. The sensor can be connected to the Vitoair FS home ventilation system, to a heat generator with integrated communication module or to a Vitoconnect device.
The ViCare CO2 sensor detects the CO2 concentration, temperature and relative humidity in the room.
In combination with the Vitoair FS home ventilation system, automatic ventilation management is possible. depending on the CO2 concentration.
Delivery set:
The ViCare CO2 sensor
Batteries 1.5 V (type AA, 4 pieces)
Mounting material for fixing to the wall
We recommend the use of a ViCare CO2 sensor in each living room and bedroom, in order to facilitate the precise management of the ventilation system switched to the Automatic operating mode.
Technical data ViCare CO2 sensor
Power supply Battery: 4x AA/LR6 1.5 V
Mains power supply unit: 5 V, 230 mA
Max. emission power 0.1 W (e.i.r.p.)
Type of protection IP20D according to EN 60529 to be achieved by assembly/installation
Protection class III
Low-Power-Funk
■ 2.4 GHz radio frequency
■ Frequency band 2405 to 2480 MHz
■ Encryption Yes
■ Transmission-reception distance through walls Up to 14 m (depending on wall thickness and structure)
Admissible ambient temperatures
■ Operation 0 to +45 °C
Use in living rooms and boiler room location (normal ambient conditions)
■ Storage and transport −30 to +60 °C
Maximum ambient air humidity 10 to 90 %, non-condensing
Measurement range
■ CO2 concentration 400 to 5000 ppm
■ Temperature 0 to +45 °C
■ Air humidity 0 to 100 %
