Description

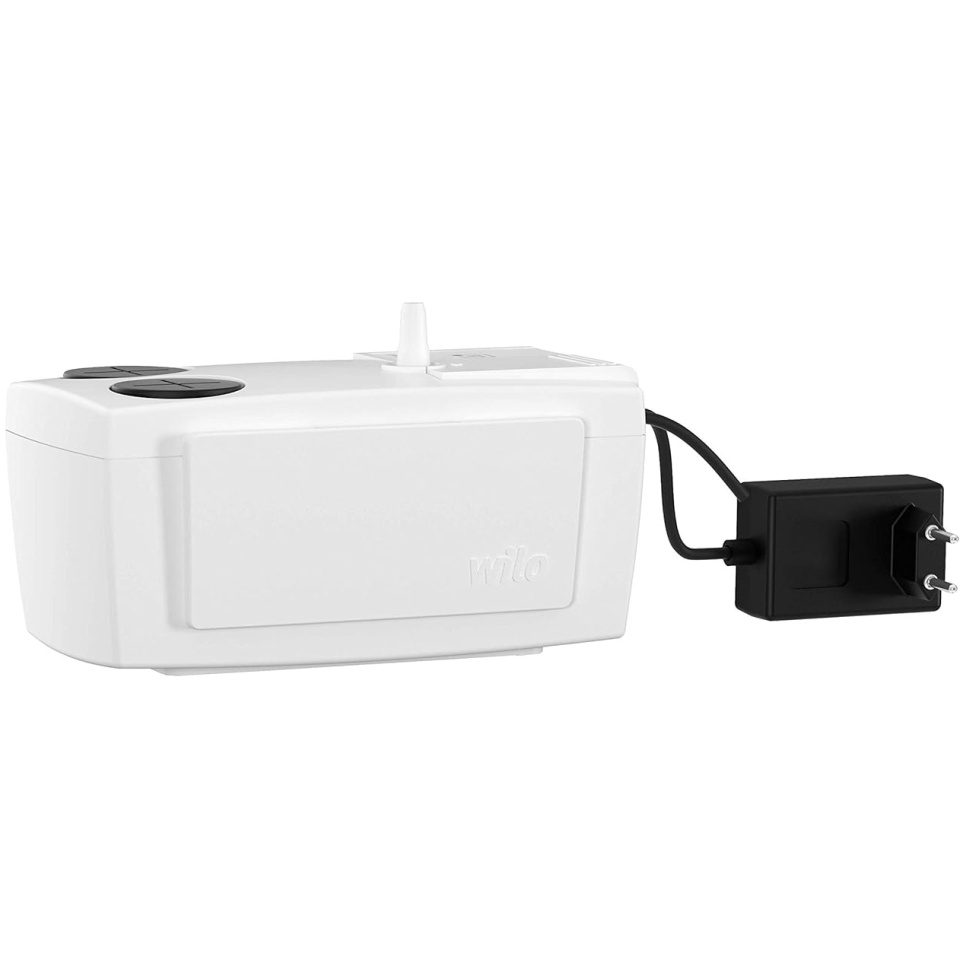

Condensate lifting unit Plavis 011-C
Condensate lifting unit for collecting and pumping condensate from condensing boilers, cooling systems and air-conditioning systems.
Ready-to-plug version with adaptable rubber guide for the inlet pipe. The level control device of the condensate lifting unit is controlled via electrode level switching. An integrated non-return ball valve prevents the condensate from returning into the tank. Thanks to its modular design, the condensate lifting unit is compact, quiet and has lower power consumption.
Special features/product advantages
- Reliable level measurement via electrode level switching
- Easy installation thanks to Plug & Pump system with adaptable inlet
- Quick and easy maintenance thanks to removable service cap and integrated non-return ball valve
- Energy savings due to low electricity consumption (≤ 20 W)
- Perfect integration into the customer environment thanks to its compact, modern construction and quiet operation (≤ 40 dBA)
Scope of delivery
- Condensate lifting unit with electrode level switching
- Tank, cover and service cap
- 1.5 m long electric cable
- Installation and operating instructions

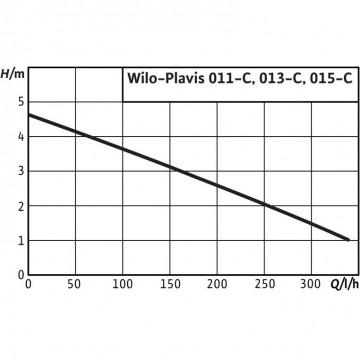

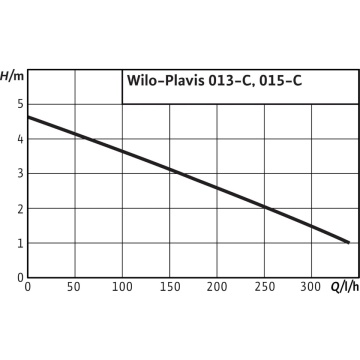

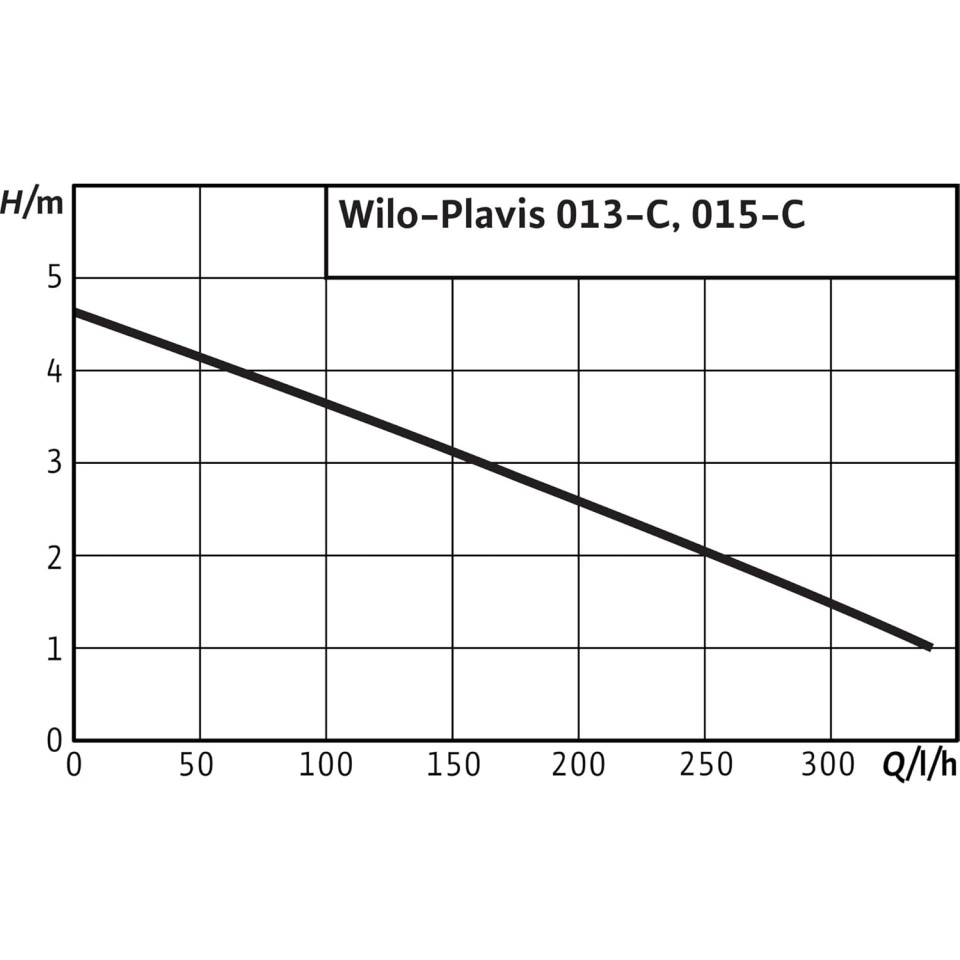

Operating Data
Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Approved field of application
Fluid temperature: 5...60 °C
Ambient temperature: 5...40 °C
Motor data
Mains connection: 1~240V/50 Hz
Voltage tolerance: +-5 %
Rated power: 0.015 kW
Rated speed: 15000 1/min
Rated current: 0.2 A
Insulation class: B
Protection class motor: IP20
Materials
Tank: ABS
Pump housing: ABS
Impeller: POM
Motor housing: ABS
Installation dimensions
Pipe connection on the suction side: Ø 18-40mm, -
Pipe connection on the discharge side: Ø 8-10mm, -
Ordering information
Brand: Wilo
Product description: Plavis 011-C
Net weight, approx.: 0.7 kg
