Condensing Gas Boiler Power Max 100 P
Description

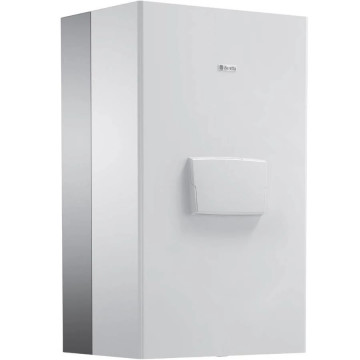

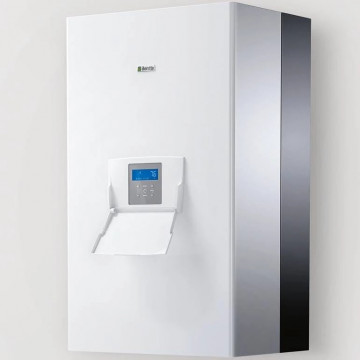

Condensing Gas Boiler Beretta Power Max 100 P Helix
Fully designed, developed and industrialized by Beretta, complete with all flue options, hydraulic and safety accessories, POWER MAX is the ideal choice for central heating systems of large domestic properties and commercial buildings, like hotels, sports centres, schools, office buildings, factories, etc.
Thanks to the countless possible configurations as stand-alone or cascade application up to 1120 Kw, POWER MAX is Beretta winning solution both for new buildings and renovations, from energy retrofitting to the replacement of old boiler systems.
The ease of mounting and the maximum flexibility of installation, combined with high efficiency and low emissions, make this product stand out in the category of commercial and light commercial appliances.
- Condensing high power boiler range that can be installed both as stand-alone or as cascade configuration.

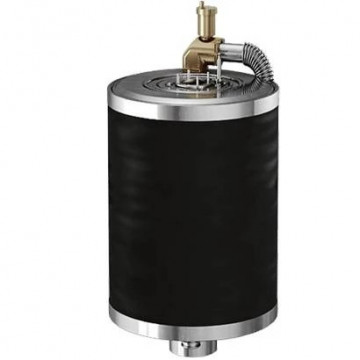

- New condensing heat exchanger in stainless steel.
- Low NOx: Class 6 According to European Directive UNI EN 15502.
- Thanks to embedded ‘Managing/Depending’ control logic, any boiler can be configured either as the ‘Managing’ or as a ‘Depending’ boiler within the cascade (same product code).
- Possibility to cascade up to 1120 kW.

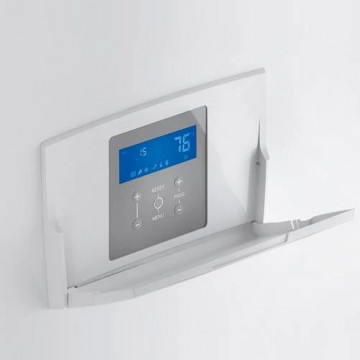

- Built-in thermoregulation with external probe supplied as option.
- Modulating and modular power regulation.
- Automatic burner ignition sequence reversal (at adjustable steps).
- Simultaneous control of two different circuits: DHW tank and high temperature.
- Management of up to 16 zones through an optional kit.
- Automatic summer/winter switch-over.
- ‘Anti-legionella’ function as standard.
- Suitable for remote control management (0-10V input or Modbus) via optional kit.
- Availability of a wide range of accessories for complete configurations.
- Can be converted to LPG through LPG kit supplied as standard.
Technical Data
Useful heating power (at 80/60oC round-trip) = 19.2-88.3 kW; Useful heating thermal power (at 50/30oC round-trip) = 97.4 kW
Maximum temperature allowed per tour = 95oC; maximum regulated temperature = 80oC Allowed working overpressure = 6 bar
Electric power consumed = 150 W; electrical protection: IP X5D
Normalized yield: up to 108.9%
Dimensions: HxWxH =1000 x 600 x 453 mm; Weight = 69 kg
Round/return connections = 3/4"; Hot/cold water connection = 1/2"; Gas connection = 3/4".
