Condensing Gas Boiler Vitodens 050-W B0KA 32 kW

Description

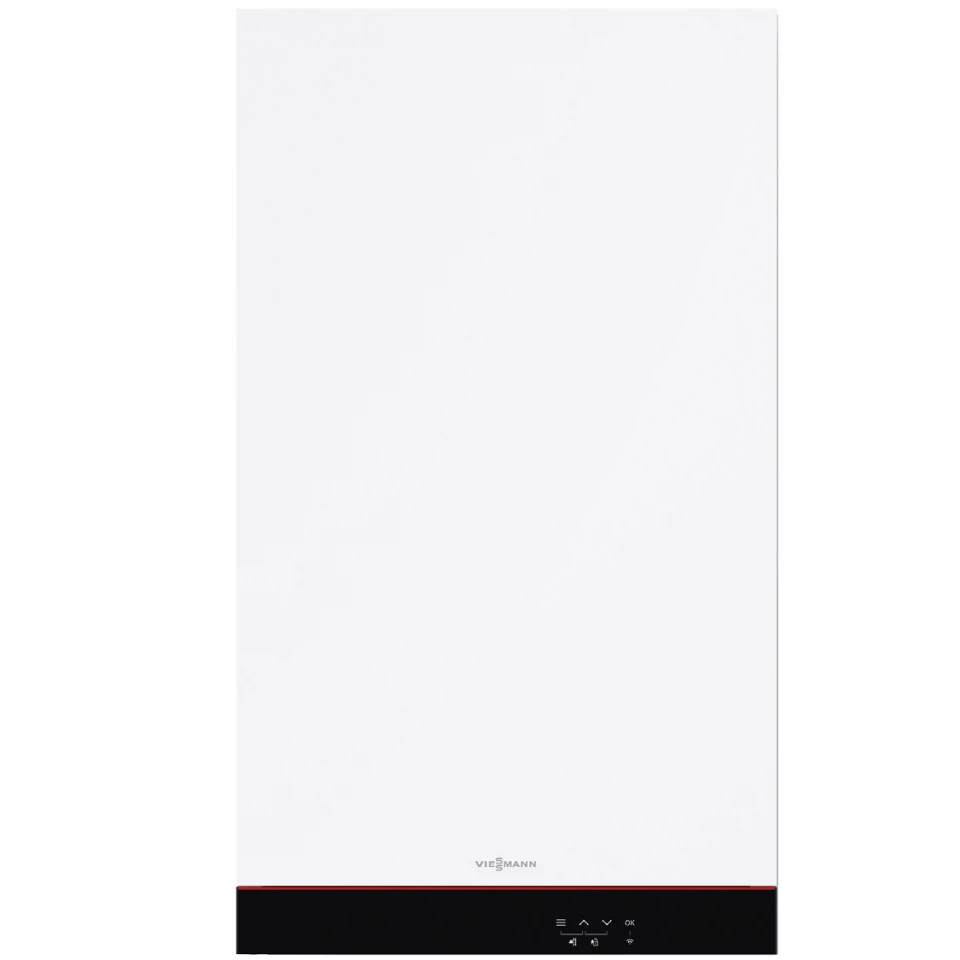

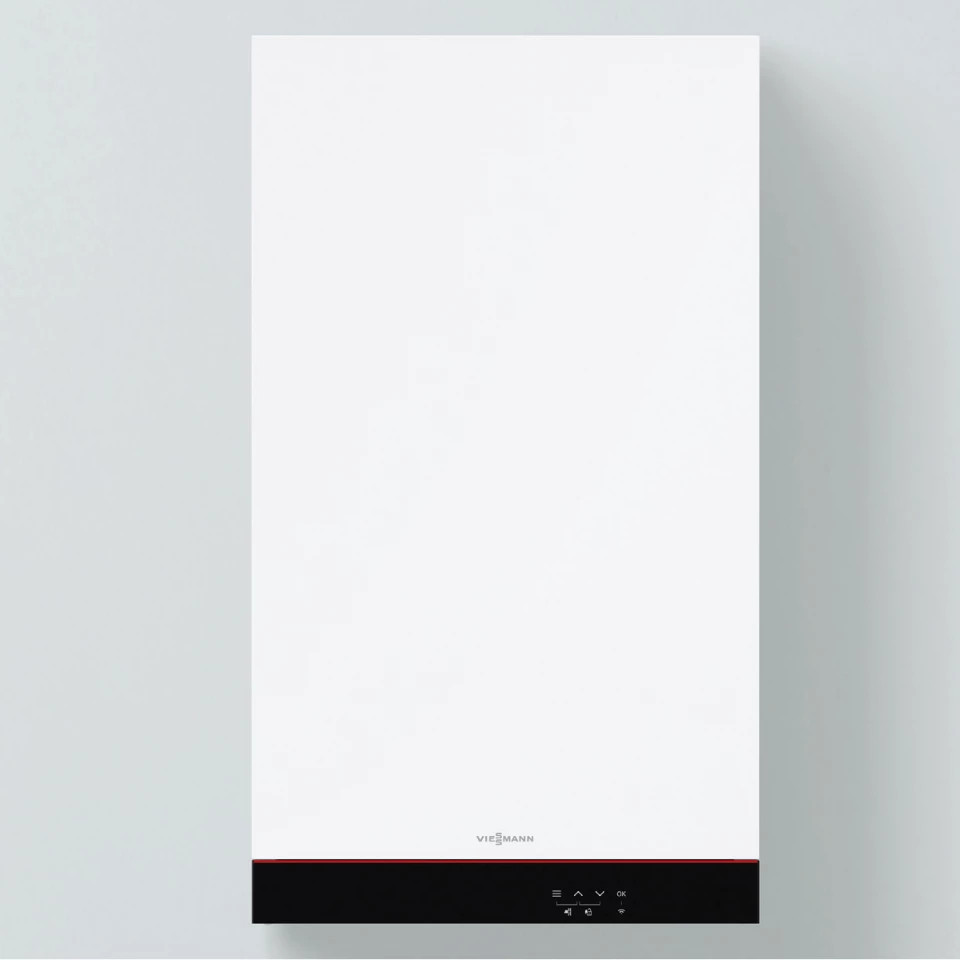

Condensing Gas Boiler Viessmann Vitodens 050-W Combi B0KA 32 kW

The new Vitodens 050-W Gas Condensing Combination Boiler is an attractively priced wall mounted gas condensing boiler. (LPG compatible).

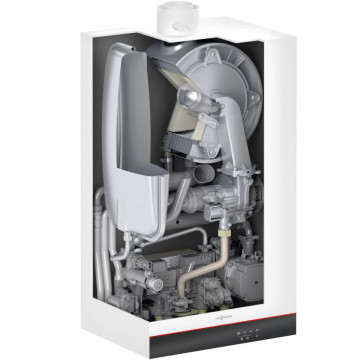

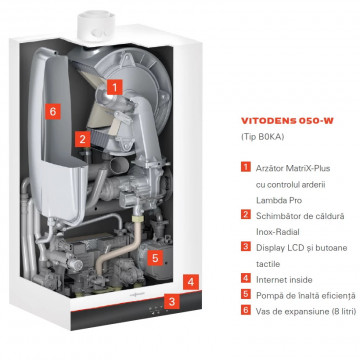

Fitted with the Viessmann patented Matrix Plus Burner and the Inox-Radial heat exchanger made of stainless steel; these are the heart of your heating system.

Product features:

• Gas condensing combi boiler, (LPG compatible, conversion to LPG is made at the control unit; no conversion kit required)
• DHW output 34.4 kW
• ERP efficiency 92% (Class A)
• Hydrogen Ready Boiler (H2 20% blend)
• Ultra Compact - can be fitted in a kitchen cupboard
• Just 700 mm in height and 300 mm depth

Product benefits:

• Particularly attractive price/performance ratio
• Durable and efficient due to Inox-Radial stainless steel heat exchanger
• MatriX-Plus burner with Lambda Pro combustion control system for permanently high efficiency and low emission values
• Easy operation via control unit with LED display and touch buttons
• Internet capability with WiFi inside
• Ideal for installation in the living area due to low operating noise and compact measurements
• Low installation height simplifies replacement of old devices
• Modulation range up to 1:10
• LPG compatible, no conversion kit required

Standard Delivery:

• Modulating, fan-assisted premix burner with Lambda Pro
• Control unit with integral WiFi interface
• Integral safety valves
• Variable speed high efficiency circulation pump and 3-way valve
• Expansion vessel (8 litres)
• Wall mounting bracket
• Fully plumbed and wired
• Boiler flue connection
• Valve fittings

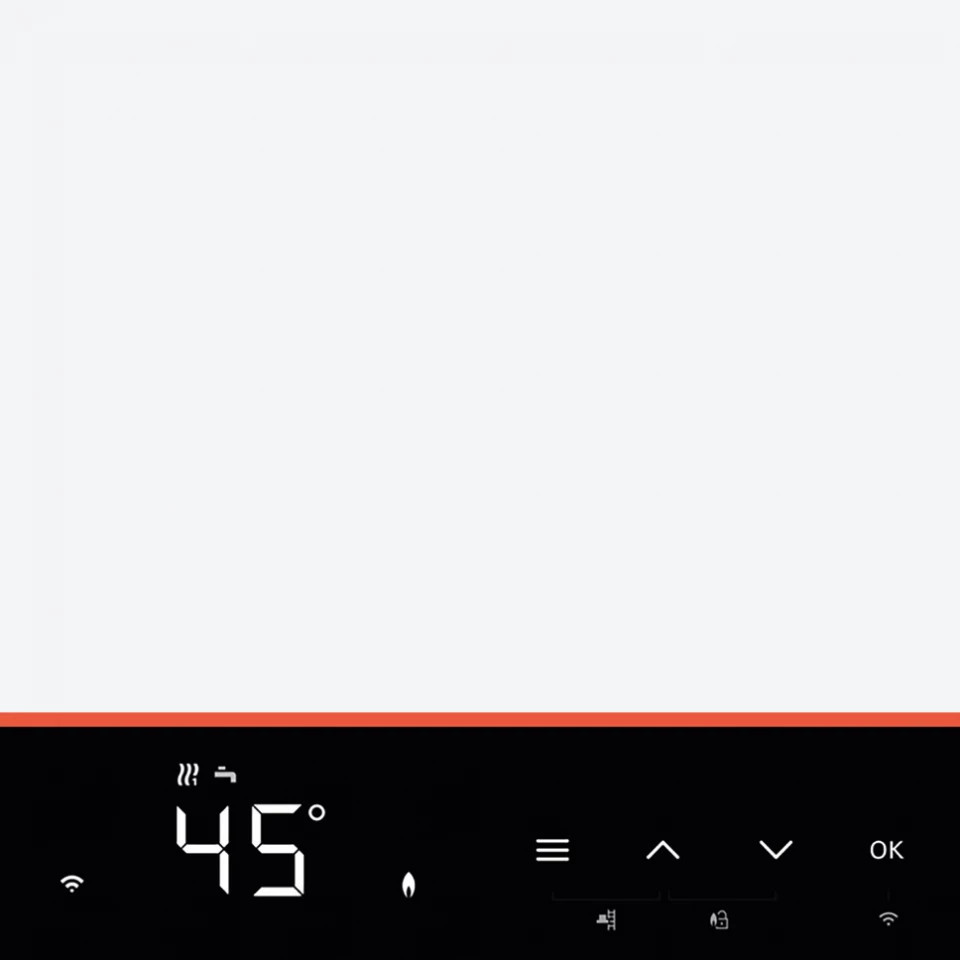

Touchscreen Display

• The boiler can be controlled by the new LCD touchscreen or by the ViCare App, some of the display features:
• User-friendly touch buttons
• Comprehensive information display
• Discreet black panel visual design

WiFi Inside:

• simple guided commissioning via the Vitoguide App
• homeowner control of heating and DHW programmes using the ViCare App
• 3rd Party controls not required when using ViCare Thermostat
• ViCare Thermostat load-compensated control meets 'Boiler-Plus'
• battery powered
• RF Connection

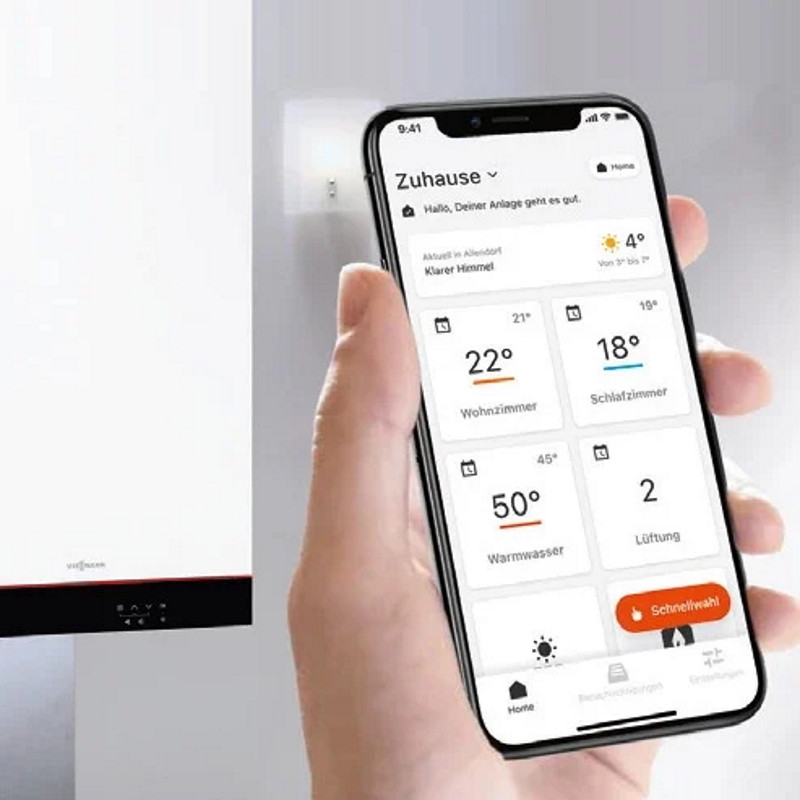

Viessmann ViCare Application:

• Download ViCare on Google Play
• Download ViCare on App Store

Additionally you may require:

• A suitable flue (see Flue tab)
• A ViCare Thermostat for load compensation (see Accessories tab) meets 'Boiler-Plus'
• An outdoor temperature sensor for weather compensation operation (see Accessories tab) meets 'Boiler-Plus'

Technical data

Rated power (at 50/30°C) =3.2-32 kW; Rated power (at 80/60°C) =2.9-29.3 kW

Maximum consumption of natural gas = 3.69 Nm3/h
Dimensions: LxWxH = 300 x 400 x 700 mm. Weight = 37 kg.
Exhaust connection Ø 60 mm. Inlet connection Ø 100 mm
Nominal power when preparing DHW = 34.4 kW. DHW flow =17 l/min (at dT=35 K)
Energy class: A.

Noise level: 31.9 dB(A) at partial load, respectively 53 dB(A) when operating on hot water

Electric power consumed = 113 W. Electric voltage 230 V, 50 Hz.

Integrated communication mode: WiFi frequency band 2400-2483.5 MHz; power max. transmission 20 dBm; Low frequency band of radio power 2400..2483.5 MHz. Maximum transmission power 10 dBm. Power supply voltage 24 V. Power consumption 4 W.
Electronic temperature limiter adjustment (TN) 91°C; Electronic regulation of cut-off temperature 110°C

Maximum temperature on tour: 82°C. Maximum pressure allowed: 3 bar.

Expansion vessel 8 liters.
