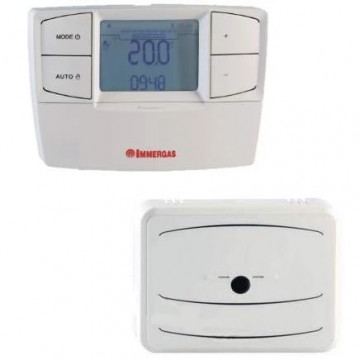

Crono 7 wireless Thermostat

Description

Crono 7 wireless Thermostat

-created to ensure the desired temperature at any time of the day, for each day of the week.

It connects to the control panel wirelessly.

Chrono 7 (receiver):

Dimensions (LxHxD): 142 x 103 x 31 mm
Power supply: 2 x 1.5 V, AA batteries
Permissible ambient temperature: 0 - + 40 ° C; storage temperature: -10 - + 50 ° C
Degree of protection cf. EN 60730: II; degree of protection according to EN 60529: IP 20
Connection mode: 2 non-polarized wires; max. length cable: 50 m (with 2x0.75 mm2 cable)
Precise temperature indication: +/- 0.5 ° C to 25 ° C *
NTC sensor room temperature: 50 k at 25 ° C
Deviation clock indication: +/- 15 minutes / year.
CRONO 7 transmitter:

Receiver dimensions (LxWxD): 105 x 82 x 26 mm
Power supply: 2 x 1.5 V, AA batteries • Duration of the batteries: 1 year (with normal use)
Actuation: Relay with zero potential contact: 5 V / 250 VAC, 5A
RF communication: 868.4 MHz, GFSK modulation, communication distance 30-100 m (depending on terrain configuration)
Power and duty cycle: Tx power <10 dBm, duty cycle <0.1% in 1 hour (in normal operation)
Permissible ambient temperature: 0 - + 50 ° C (recommended <40 ° C)
Connection: 2 non-polarized wires; max. length cable: 50 m (with 2x0.75 mm2 cable).
