Deep Well Pump 4SDm 2/12

Description

Deep Well Pump IBO 4SDm 2/12

Multi-stage deep well pumps, 98 mm in diameter, with increased resistance to sand, intended for installation in wells with diameter of at least 4 inches.

All SD series pumps were awarded the PZH hygienic attestation.

The effect of increased resistance to sand is obtained due to application of
"floating rotors" and selection of materials resistance to wear and tear: cast
iron discharge and suction port, enclosure, shaft and filtering net made of
stainless steel AISI304 / and high quality plastic rotors.

Pumps with motors 230 V ~ / 50 Hz are equipped with a starter box with in-built condensers and overcurrent protection.
Pumps with motors from 0.75 kW to 2.2 kW are available with a 1.5- m or
20 m cable. Upon client's request, it is possible to elongate the cable with
any length.
Series 4SD pumps made by IBO are the first in the market to receive surname "anti-sand". Still, as ones of few in the market, they have the structure with such a high sand resistance. Maximum sand content in water amounts up to 5%.

Application:

• supplying one-family houses and farming households with deepwater intakes.
• irrigation of gardens and orchards - ground drainage - water pipe
plants - industry

Specifications

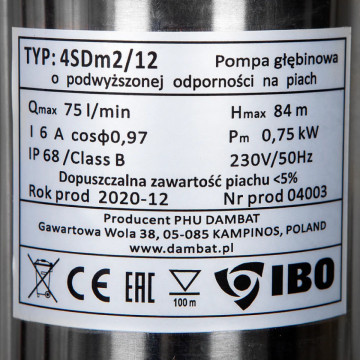

Electric power =0.75 kW; power supply: 230 V / 50 Hz.

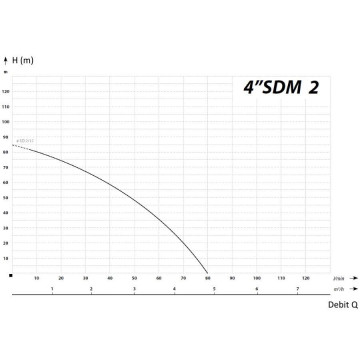

Pumping height: Hmax =84 m; Flow rate Qmax =75 l/min
Electric cable: 20 m
Sand resistance: 500 g/m3.
Dimensions: 98 x 930 mm. Weight = 16 kg.
