DialSet Fill Valve VF06

Description

DialSet Fill Valve resideo VF06

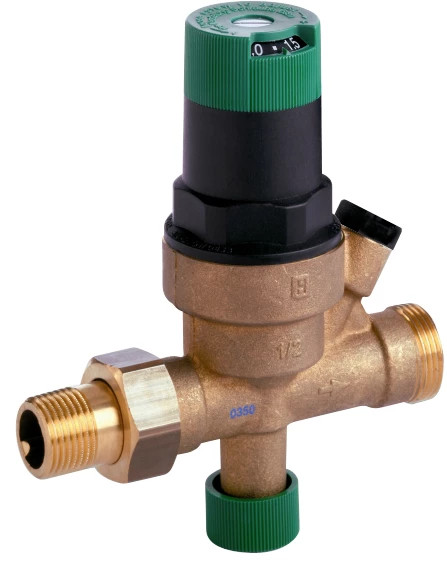

The VF06 DialSet Fill Valve from Resideo is a pressure regulating boiler feed valve with check valve, especially designed for expansion tank mounting.

With a maximum pressure of 150 psi, the VF06 provides automatic control of boiler feed water and other pressure reducing applications.

The VF06 DialSet Fill Valve from Resideo is for use with sealed heating systems, and comes with a pressure reducing valve, stop valve, a non-return valve, and hose connections. Should pressure loss occur, this valve also enables quick and easy refilling of the system.

Other features include:

• Automatic filling
• Unique and simple adjustment mechanism
• Integral strainer
• Pressure gauge tapping

SPECIFICATIONS

Adjustment Range: 8-50 psi
Factory Pressure Setting: 15 psi
Maximum Operating Pressure: 150 psi
Medium Temperature: 33 °F -140 °F
Manometer Connection: 1/4" NPT
