Diaphragm Safety valve MS 3/4x1 1.5 bar

Description

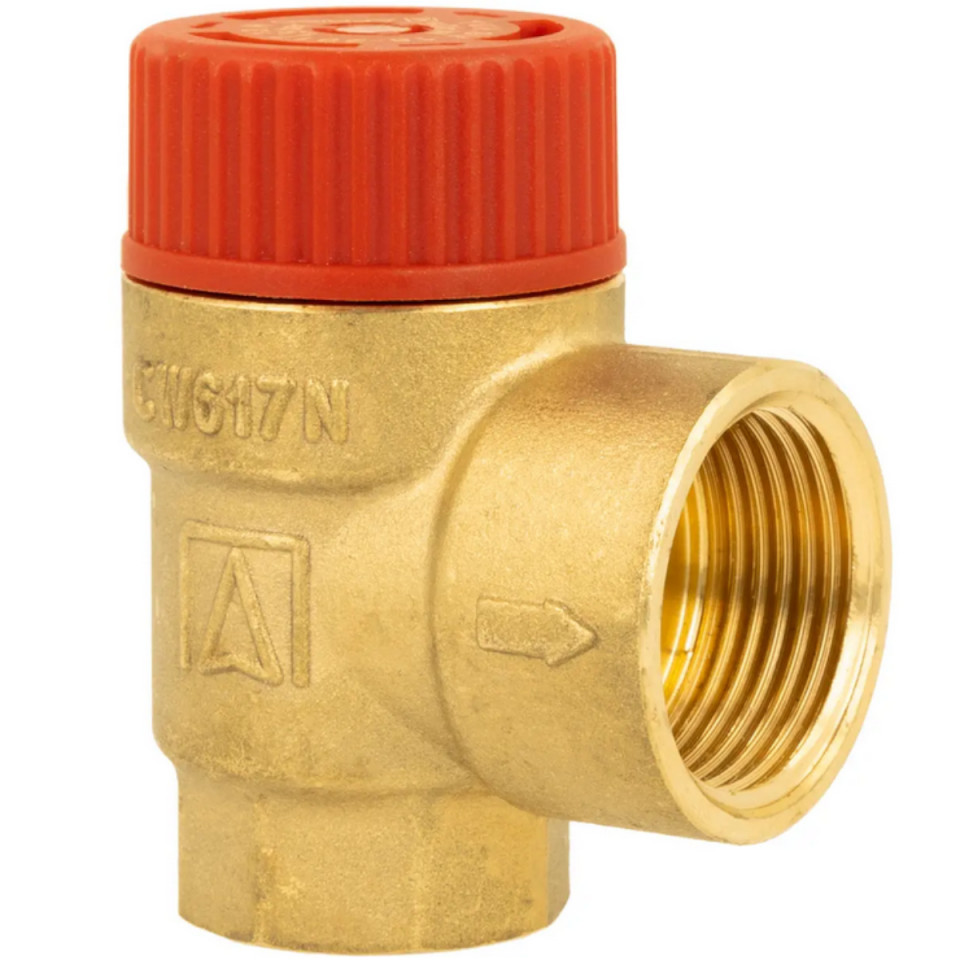

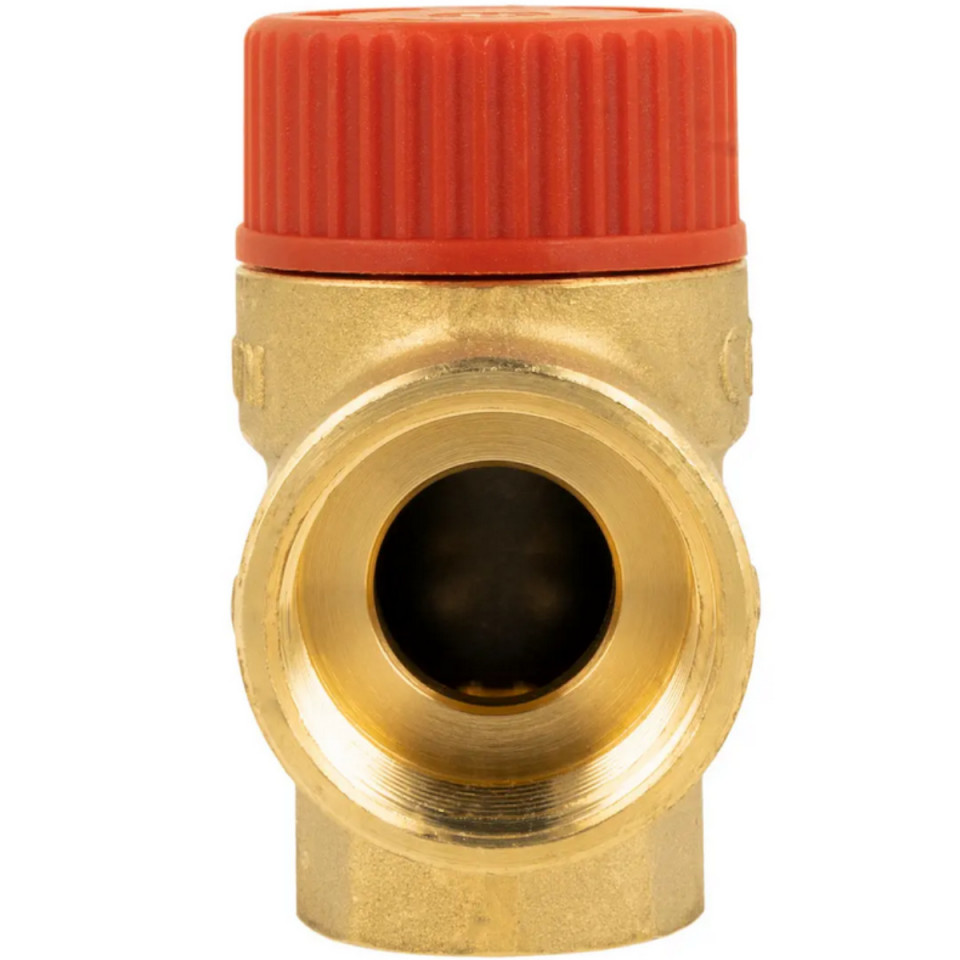

Diaphragm Safety valve Afriso MS 3/4"x 1" 1.5 bar

Safety valve with factory-adjusted opening pressure.

Benefits
■ For protection against overpressure in heating systems
■ For water, water/glycol mixtures, liquids of fluid groups 1 and 2.

Application
For sealed heating systems as per TRD 721; VdTÜV sheet Safety Valve 100 and 100/4 sheet 1; EN 12828. Also for water heating systems as
per DIN 4751-2 with flow temperatures up to 120°C and DIN 4751-3 with flow temperatures up to 95°C. Suitable for water, water/glycol mixtures (max. 50 % glycol) and liquids of fluid groups 1 and 2 (Pressure Equipment Directive, Art. 9).
