Differential pressure bypass valve DÜ 42379
RON 178.24
(VAT Included)
Delivery costs are not included
Financing through Online Credit smart by BT Direct
How can we help you?
Description

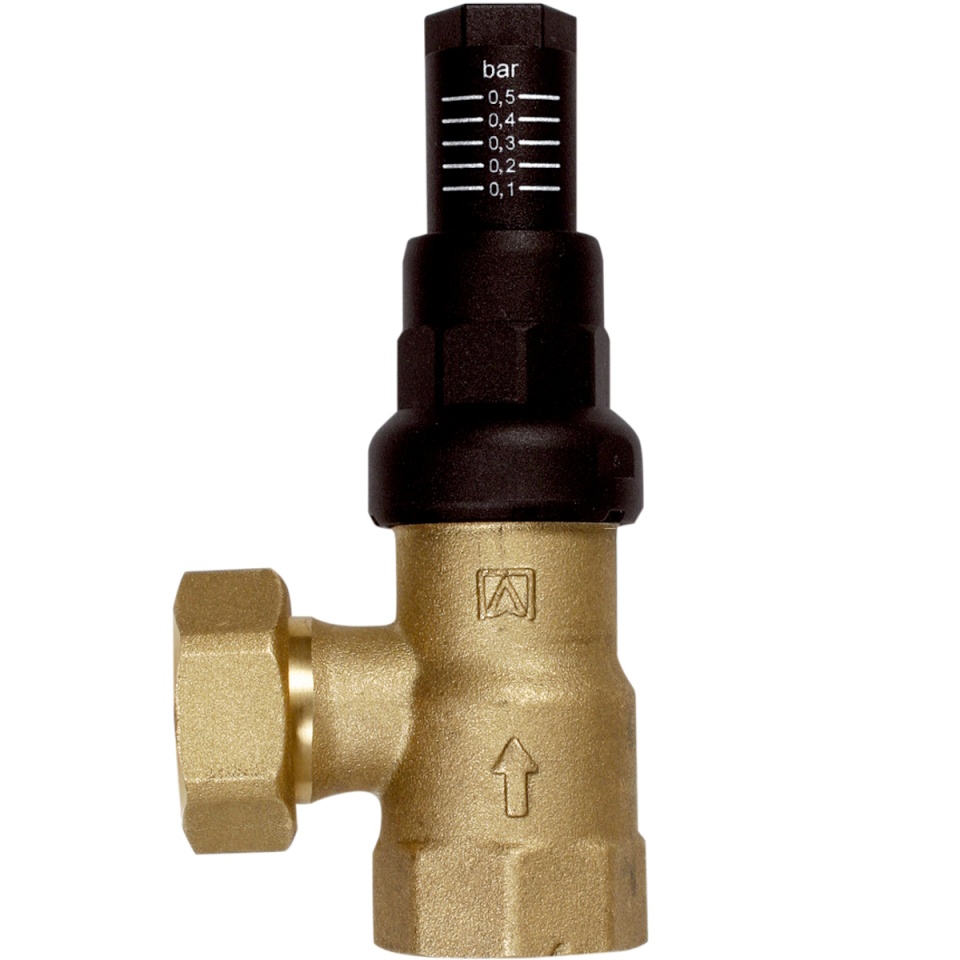

Differential pressure bypass valve DÜ Afriso 42379
- For constant pump pressure in heating systems
- Reduction of flow noise
- With adjustment scale
- Differential pressure fully adjustable
Application
For keeping the pump pressure in sealed heating systems as per EN 12828 constant and for reducing flow noise in the heating system.
Technical specifications
Operating temperature range Medium: Max. 95 °C; Medium: short-term 120 °C
Operating pressure Max. 6 bar
Differential pressure 0.1/0.5 bar fully adjustable
Housing
Material: Brass

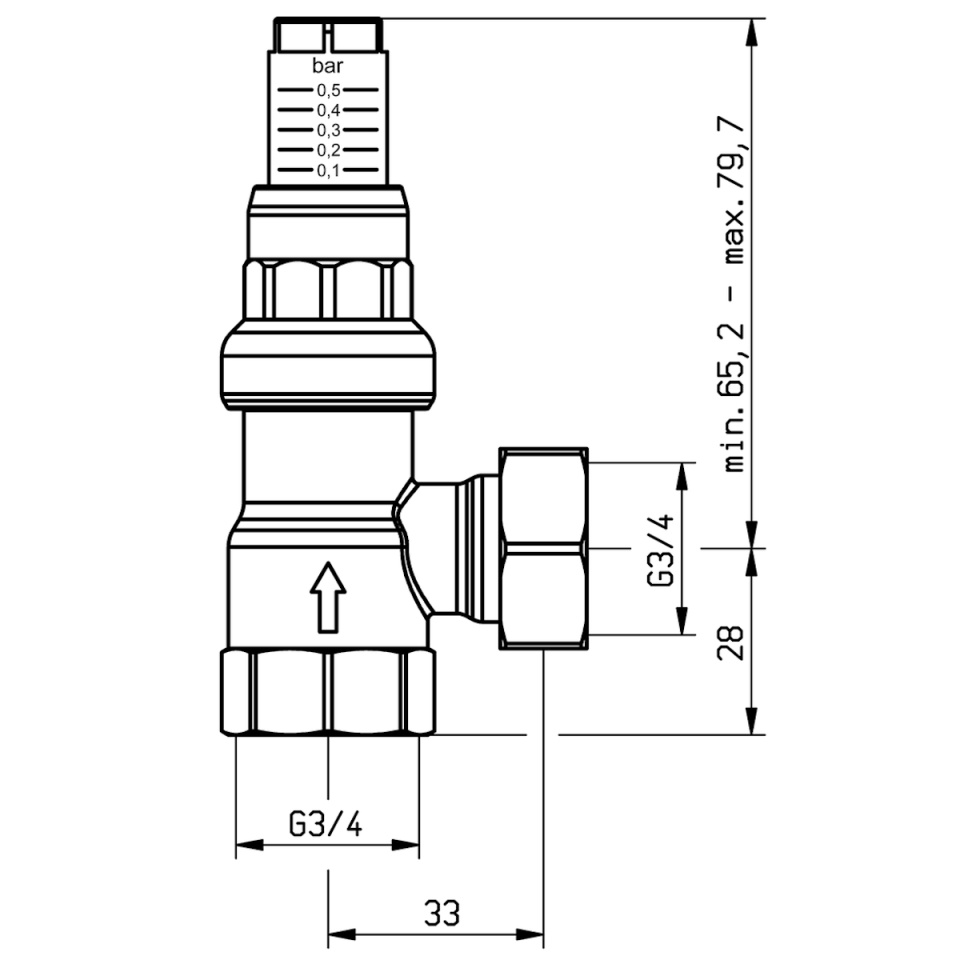

Connection angled version
Input: G¾ female
Output: Screw connection, flat-sealing with union nut G¾ screw connection, flat-sealing with union nut G1
