Differential pressure measuring instrument testo 510 i with smartphone operation
Description
Differential pressure measuring instrument testo 510 i with smartphone operation
The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.
- Measurement of gas flow and static pressure
- Measurement menu for pressure drop test including alerts
- Magnetic holder for easy attachment

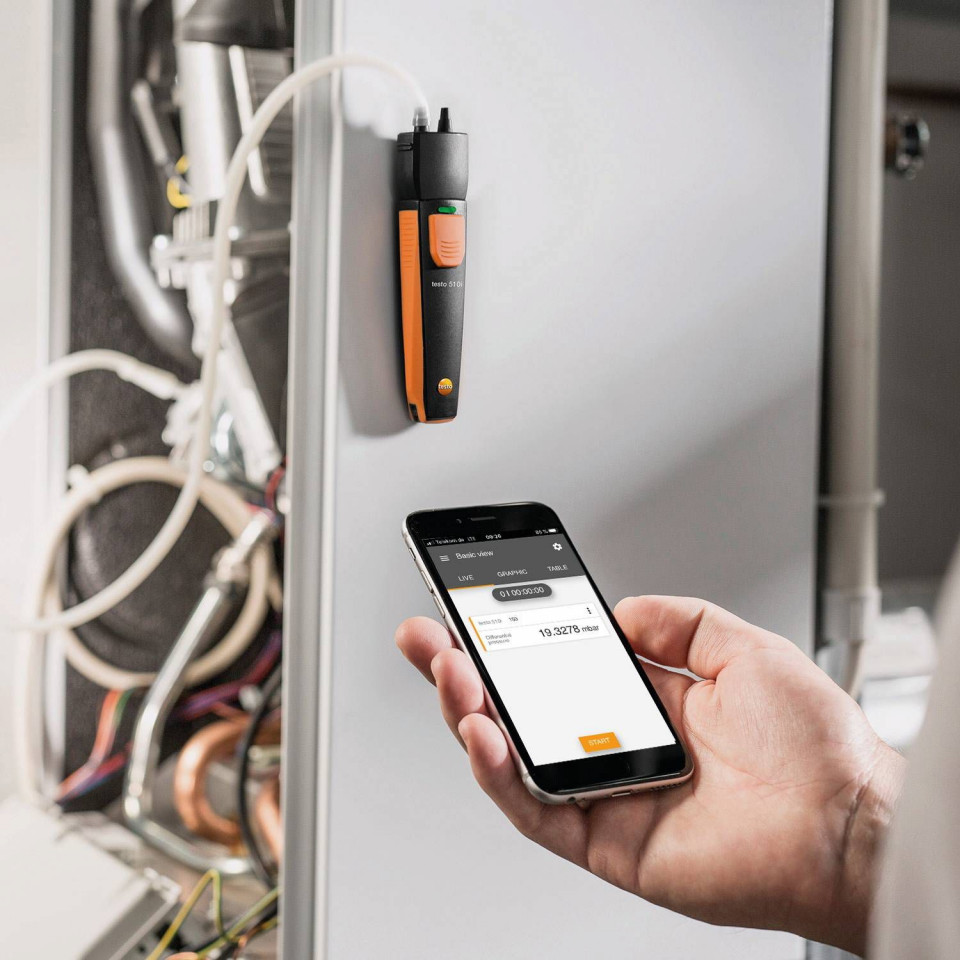

Handy and intelligent: the compact testo 510i differential pressure measuring instrument featuring professional measuring technology and smartphone operation for measuring differential pressure. Readings can be viewed conveniently on your smartphone/tablet via the testo Smart App and emailed directly.
Turn your smartphone/tablet into a measuring instrument

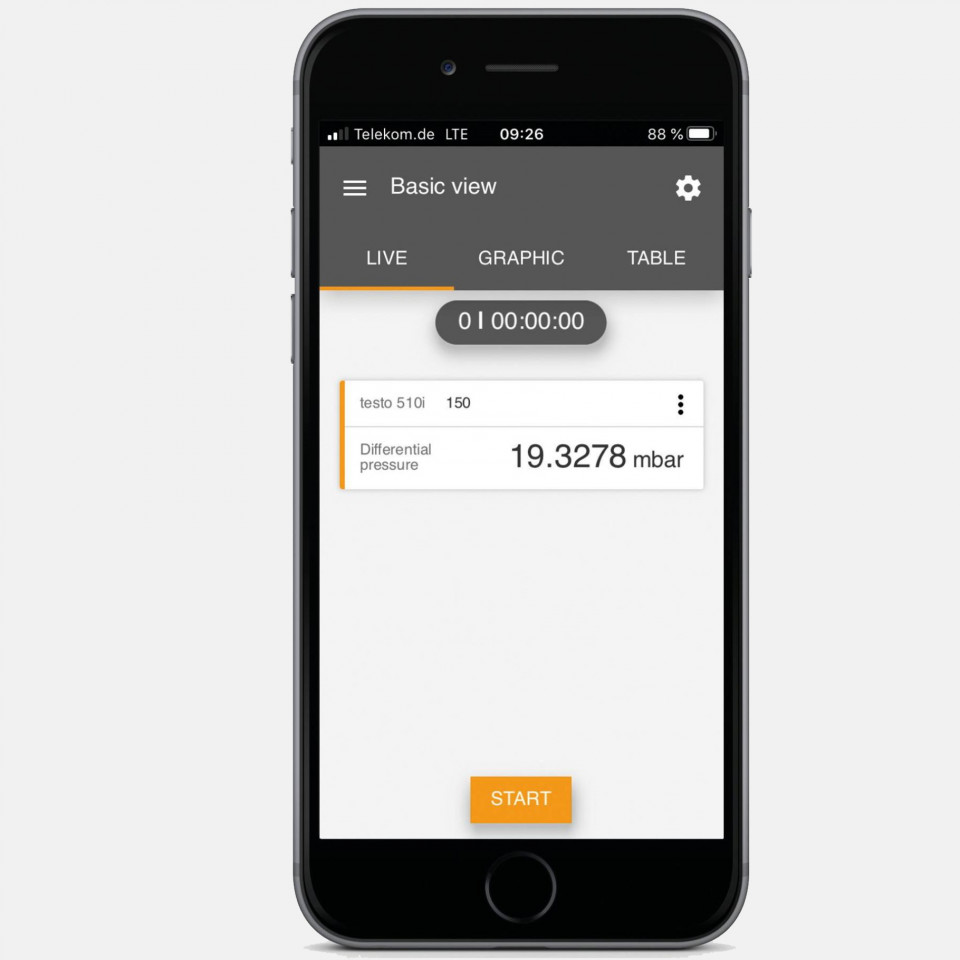

Use your smartphone or tablet as a display: installed on a terminal device, the testo Smart App allows you to view testo 510i readings conveniently and carry out reliable timed and multi-point mean calculation. The App also includes a measurement menu for the pressure drop test. All measurement data can be displayed as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.
System requirements:
- iOS 11 or later
- Android 6.0 or later
- Bluetooth 4.0
Delivery Scope
Technical Data
| Differential pressure (internal sensor) - Piezoresistive | |
|---|---|
|
Measuring range |
-150 to +150 hPa |
|
Accuracy |
±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
|
Resolution |
0.01 hPa |
| General technical data | |
|---|---|
|
Weight |
92 g |
|
Dimensions |
148 x 36 x 23 mm |
|
Operating temperature |
-20 to +50 °C |
|
Product-/housing material |
ABS / TPE |
|
System requirements |
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
|
Product colour |
black/orange |
|
Battery type |
3 AAA micro batteries |
|
Battery life |
150 h |
|
Storage temperature |
-20 to +60 °C |
Details
