Drainage Pump Padus UNI M05/T25-540/A 2

Description

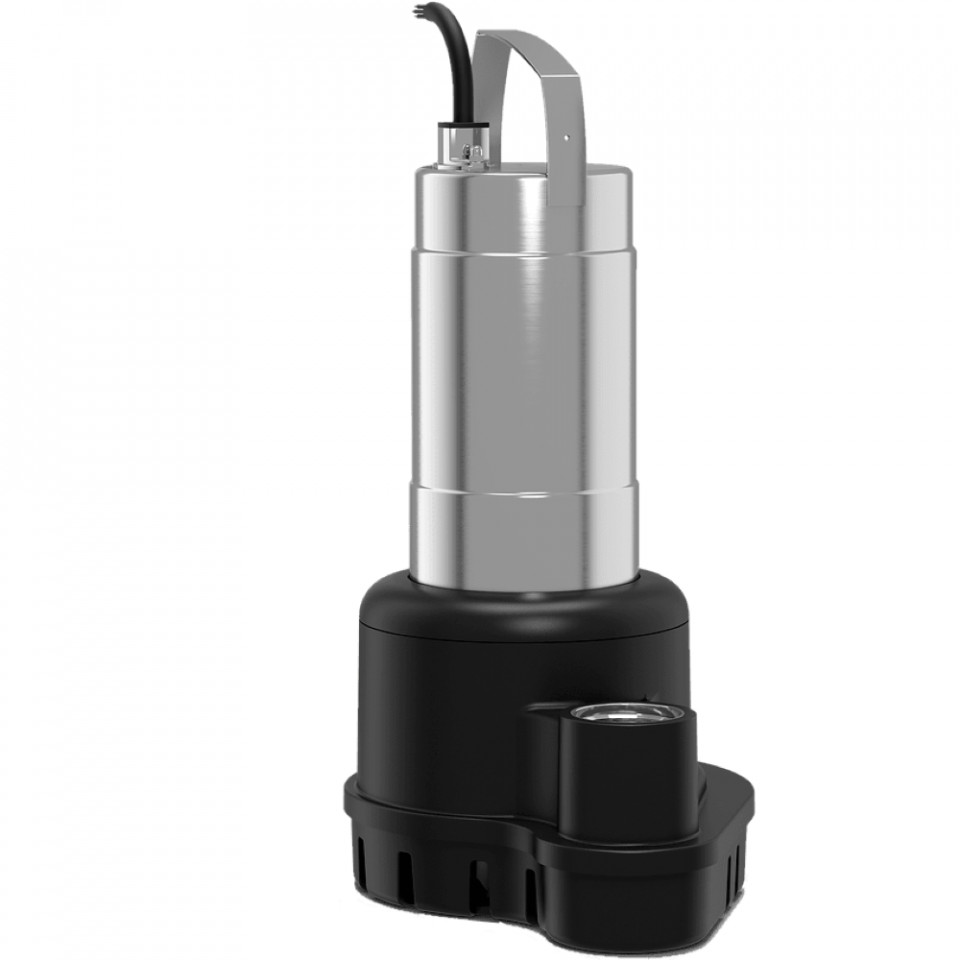

Drainage Pump Wilo Padus UNI M05/T25-540/A 2

Fully submersible drainage pump for transportable wet well installation for pumping wastewater and sewage that is free of faeces (within the meaning of EN 12050-2).

Hydraulics housing and impeller made of composite, motor housing made of stainless steel. Surface-cooled motor in three-phase current version with sealing chamber and thermal motor monitoring. 10 m connection cable with fitted CEE plug and float switch for automatic level control. The sealing on the fluid and on the motor side is performed by two bidirectional mechanical seals.
Including adapter kit for 2½" pipe installation:
- 2" pipe socket to 2½" to connect the pump
- Rubber sleeve for 2½" pipe (DN 65)
- Pipe clamp

Operating Data

Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:
Max. delivery head: 25.99 m

Product data

Impeller type: Open multi-channel impeller
Free ball passage of the hydraulics: 10 mm
Maximum operating pressure: 2.86 bar
Max. immersion depth: 7 m
Fluid temperature: 3...40 °C
Max. fluid temperature: 40 °C

Motor data

Mains connection: 3~400V/50 Hz
Voltage tolerance: +-10 %
Power factor: 0.84
Rated power: 2.5 kW
Power consumption: 3.2 kW
Rated current: 5.5 A
Starting current: 31 A
Activation type: Direct online (DOL)
Rated speed: 2848 1/min
Max. switching frequency: 60 1/h
Insulation class: F
Protection class: IP68
Operating mode (immersed): S1
Operating mode (non-immersed): S2-15 min, S3-10%

Cable

Connection cable length: 10 m
Cable type: H07RN-F
Cable cross-section: 6G1
Mains plug: CEE 16A, 3P+N+PE, 6h
Type of connection cable: Detachable

Equipment/function
Float switch: yes
Explosion protection type: -
Motor protection: Bimetall

Materials

Pump housing: PP-GF30
Impeller: PP-GF30
Shaft: 1.4401
Sealing on pump side: QQPGG
Sealing on motor side: BXPFF
Gasket material: NBR
Motor housing: 1.4301

Installation dimensions

Pipe connection on the suction side: , -
Pipe connection on the discharge side: G 2, PN 10

Ordering information

Brand: Wilo
Product description: Padus UNI M05/T25-540/A 2"1/2 KIT
Net weight, approx.: 26 kg
Article number: 6084816
