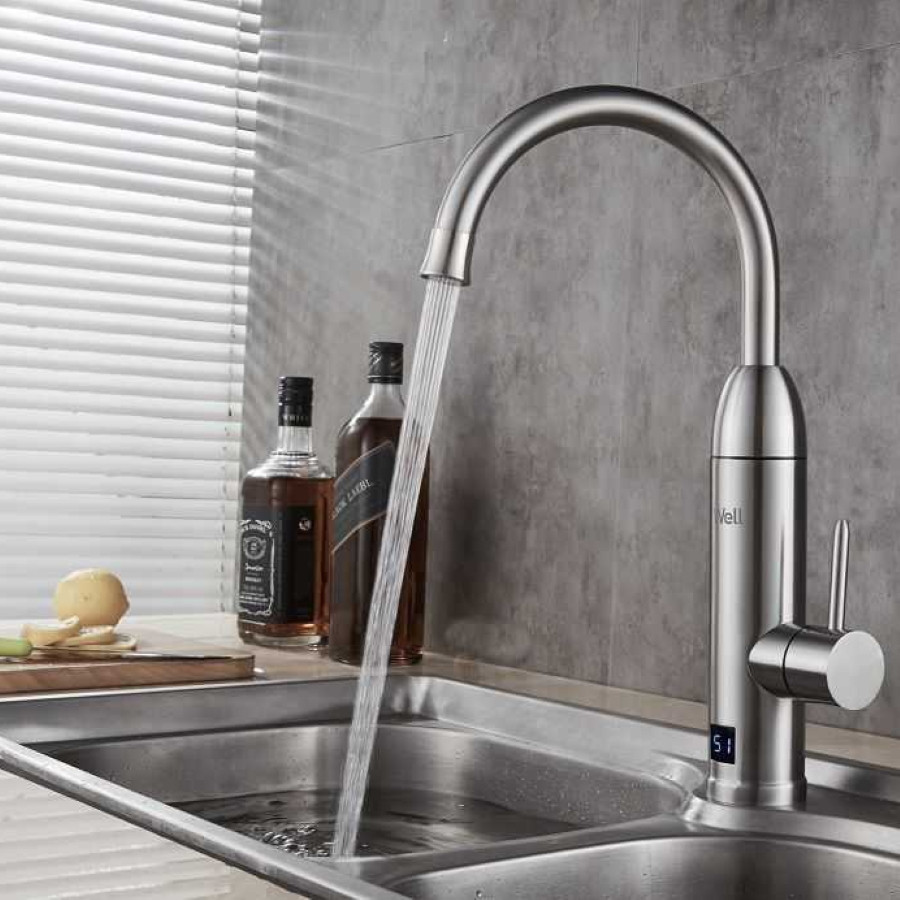

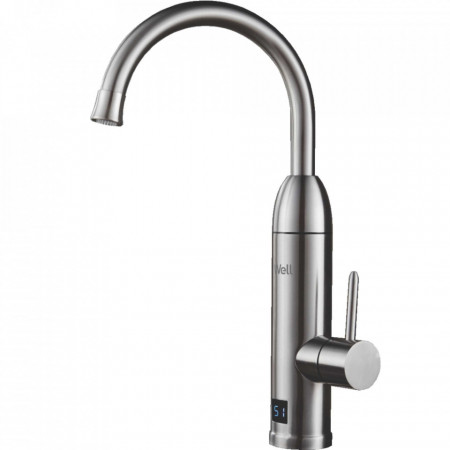

Electric Instant heating Faucet Creek

Description

Electric Instant heating Faucet Well Creek

The electric faucet with instant water heating Creek is equipped with an LCD display for displaying the hot water temperature.

The Creek electric battery ensures water heating at a temperature between 30-60°C, with the possibility of adjusting the water temperature by turning the operating handle. This faucet can be installed in any home equipped with a cold water supply system and a single-phase electrical system.

The electric supply of the electric faucets with the power of the electric heating resistance of 3000 W will be done through a separate single-phase electric circuit, specially intended for the electric faucet. The electrical circuit will be provided with a protective neutral conductor and will be made of copper conductors with a minimum section of 2.5 mm² and will be protected against short circuit and accidental current leakage by means of an automatic differential switch (differential circuit breaker) of 16 A with differential protection of 10 mA.

Also, the electrical power socket will necessarily be a socket with protective contact, Schuko type 16 A.

The execution and commissioning of the electrical installation must be done by an authorized electrician.

Benefits:

Prepare hot water instantly;
Protection against overheating;
Protection against lack of water;
It is easy to install and use;
Easy temperature regulation;
Digital display with liquid crystals.
The display will show the hot water temperature when the faucet is in HEATING mode and will turn off in CLOSED or COLD mode.

TECHNICAL DATA:

Voltage: 220-240 V
Nominal power: 3000 W
Protection factor: IPX4
Water pressure: 0.4.. 6 bar
Heating material: Stainless steel # 304
Stainless steel body
Hot water flow: 1.5-4 Litres/min
Hot water temperature: 30-60°C
Rotation: 120°
Power cable length: 1.1 m
Long life: > 10,000h
Protection against overheating
