Electric Water Heater AT50-W20VS(A)-SLIM 50liters

Description

Electric Water Heater Motan AT50-W20VS(A)-SLIM 50 liters

The water heater has a modern SLIM and versatile, compact design with effective insulation and allows easy installation both horizontally and vertically.

• simple and compact;
• high domestic hot water heating power;
• ability to operate at high temperatures;
• ability to operate at high pressures;

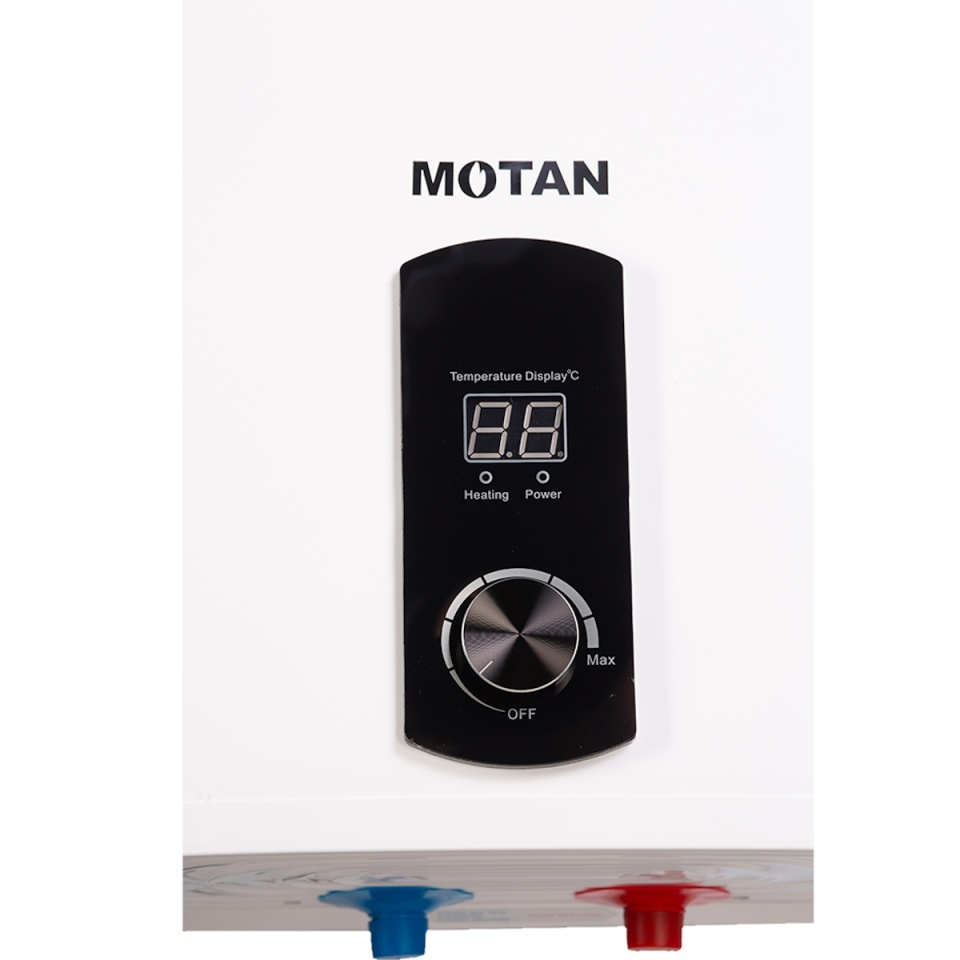

• equipped with a control panel with LCD screen;
• magnesium anode for anti-corrosion protection;
• overtemperature and overpressure protection systems;
• flexibility in mounting (HORIZONTAL OR VERTICAL);
• reduced heat loss (EFFICIENT INSULATION).

Technical data Motan electric water heater

Boiler capacity: 45 Litres
Energy efficiency class: B
Inlet-outlet connections: 1/2"
Dimensions: Width 435 mm, Depth 245 mm, Height 965 mm
Mass: 20 kg
Vertical / horizontal mounting
Electric resistance power: 2000 W
Maximum working temperature: 75ºC
Maximum working pressure: 7.5 bar
Load profile: M
Nominal voltage: 220-240 V-AC
Degree of electrical protection: IPX4
Annual electricity consumption for DHW preparation: 1314 kW/h
