Electric Water Heater BiLight GCV9S 100lt with inbuilt heat exchanger

Description

Electric Water Heater Tesy BiLight GCV9S 1004420 B11 TSRCP 100 liters with inbuilt heat exchanger

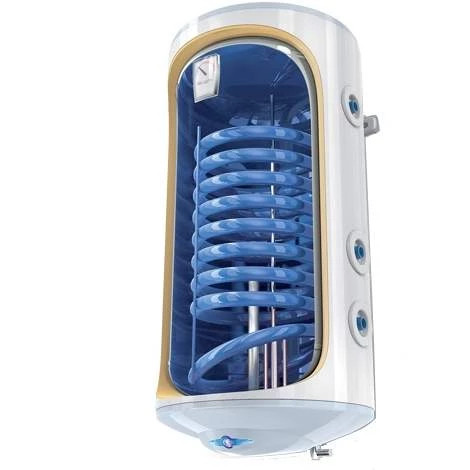

The electric water heaters of the BiLight Vertical series with inbuilt high-efficiency heat exchanger /extra power serpentine/ are a smart solution for connecting the appliance to a central heating or other similar system. It allows the utilization of alternative sources of heat energy such as solar systems, wood pellet or gas burners, etc.

•  Inbuilt high-efficiency heat exchanger /extra power serpentine/ with integrated TURBOLATOR, a patented solution for fast water heating through energy from alternative sources
• Additional opening and sleeve for placing a temperature sensor
• Specific design of the serpentine, which enhances the heating of the full water volume
• PISTON EFFECT for supervision of the speed of incoming water and increase of the hot water amount with up to 15%
• INSUTECH - an in-house TESY technology for highly efficient insulation and extremely low heat losses
• BiLight indication for easy and fast recognition of the work modes

Technical Data

Model BiLight 100 S
Real Volume 96 L
Rated power 2000 W
Heating time Δt 45K (15 - 60°C)**80°C 0:18 h:min
Energy class C
Height 0.985 m, Width 0.440 m, Depth 0.467 m, Diameter 440 mm
Thermo pocket yes
Mounting Vertical
Heat exchanger surface 0.7 m²
Heat exchanger capacity 3.2 L
Continuous flow rate of DHW at ΔT 35°C *60-80°C 433 L/h
Exchange power in continuous mode (max. coil output) *60-80°C 18.5 kW
Standing losses 64 W
