Description

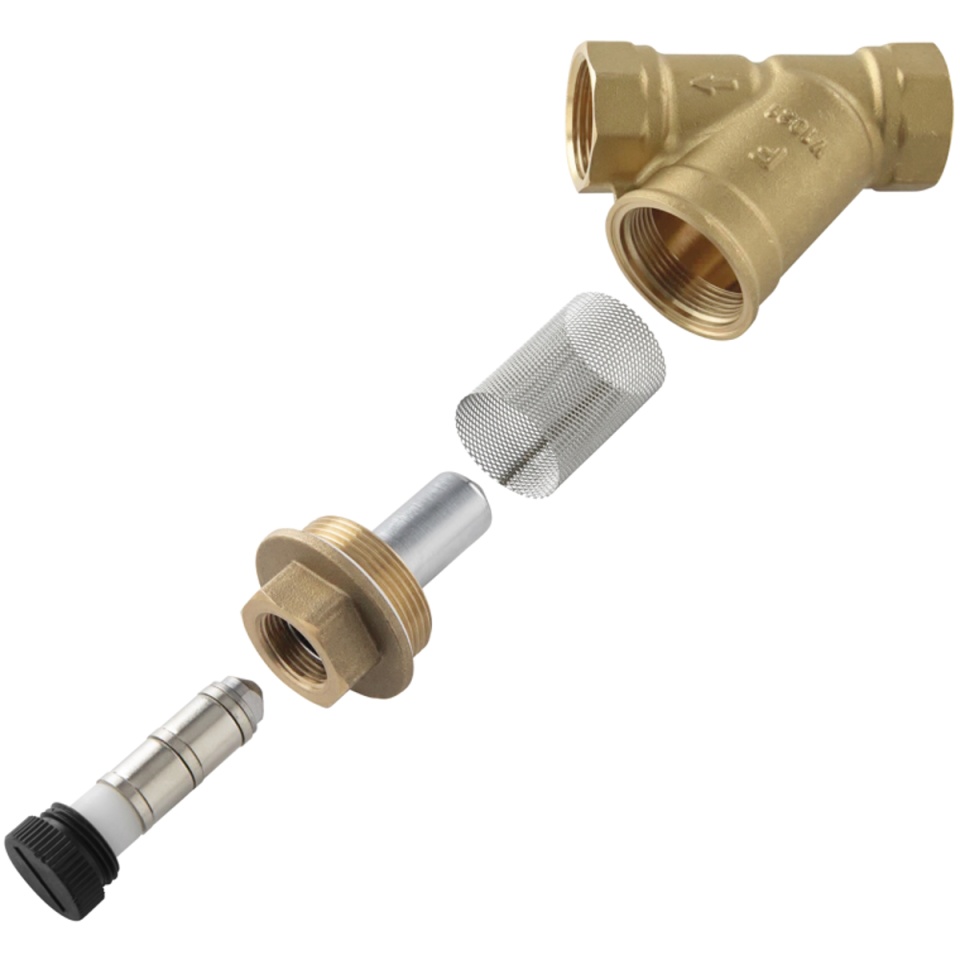

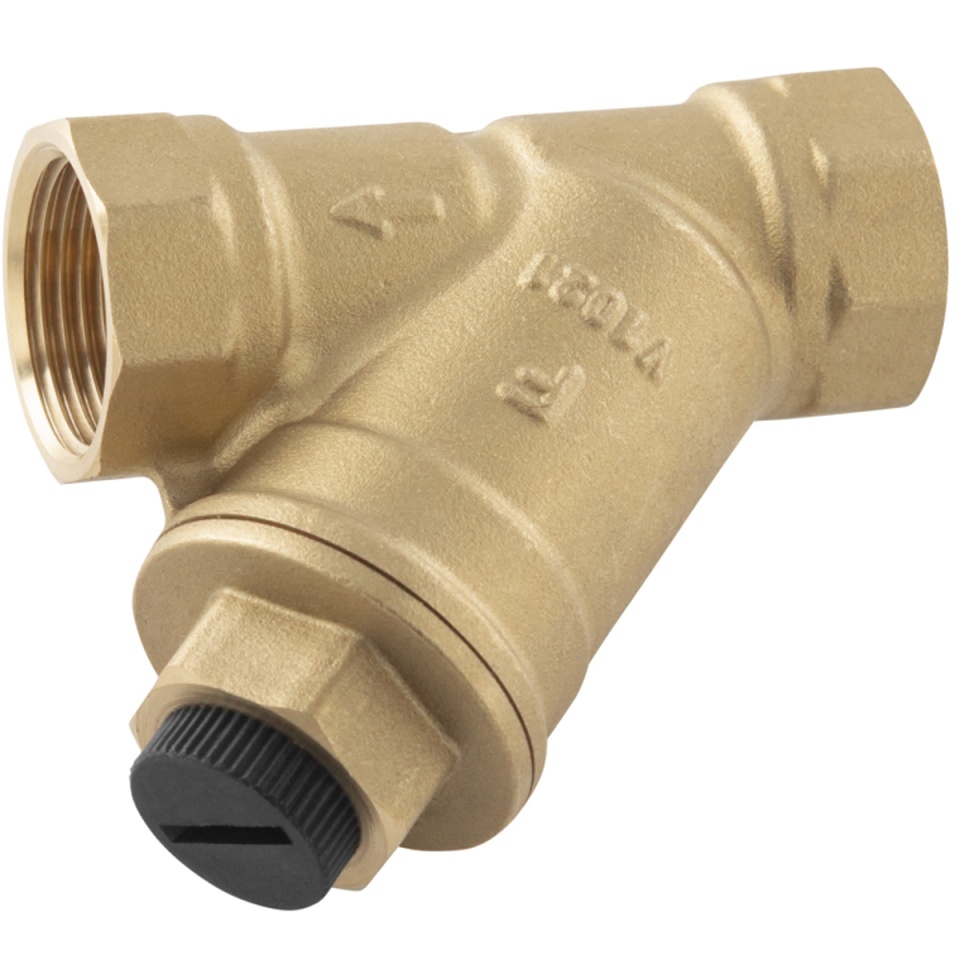

Ferro Magnet Y-strainer 3/4"

• female - female
• material of filter: AISI304 stainless steel
• mesh size of filter insert: 0.36 mm2
• neodymium magnet N35 (6000 -9500 GS)
• magnet housing: CW617N - 4MS
• for use in cold and hot water systems and in heating and cooling systems where the operating medium is water or water-glycol solution (up to 50%)
• nominal pressure: 16 bar (PN16)
• maximum operating temperature: 100°C
• NICKEL FREE - all product elements which may have contact with potable water are not covered with nickel
• CW617N-4MS brass - the latest hygienic standard
• media valves: water, glikol 50%
