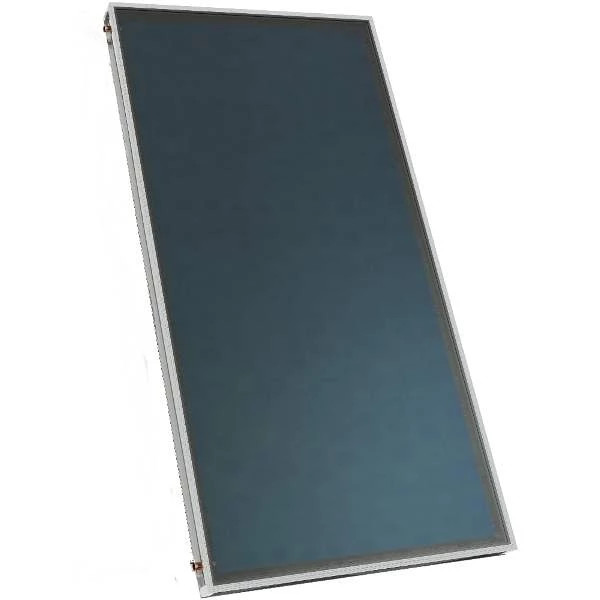

Flat plate solar collectors SP 08 200 CSL

Description

Flat plate solar collectors with a selective absorber aluminium absorber Tesy SP 08 200 CSL

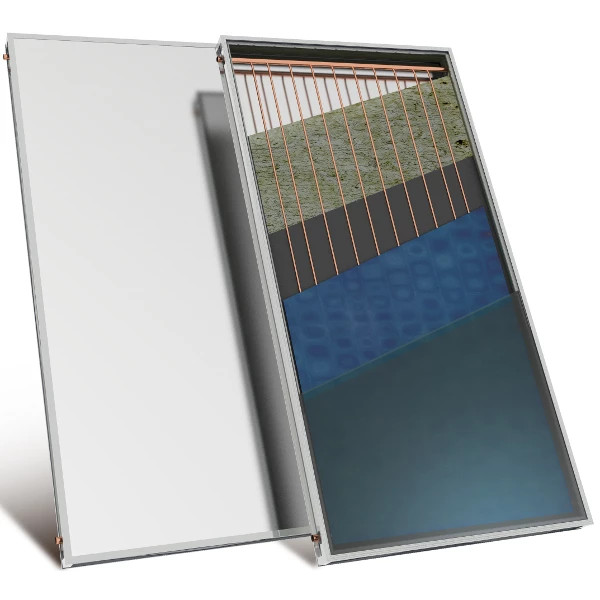

Flat aluminum absorber welded with LASER technology.
Selective coating ensures a high efficiency of the collector.
The prismatic glass (reduced amount of cast iron) retains the accumulated heat and allows the passage of the maximum amount of solar radiation to the absorber.
Mineral wool insulation guarantees minimum heat loss in extreme conditions.

External dimensions [mm] 2030 x 1030 x 80
Absorber surface [m2] 1.8 m²
Net weight 36.5
Aluminum absorber
Selective coverage
Absorption factor 95%
Reflection factor 5%
Maximum working pressure 10 Bar
Test pressure 15 Bar
Maximum working temperature 165 °С
Heat transfer fluid PG:H2O (30:70)
Panel capacity 1.28 l
Connection types 22 mm
Collector efficiency η 77
Heat loss - coefficient a1 3.95
Thermal loss - coefficient a2 0.016
Frame Al
Back cover galvanized steel 0.5 mm
Glass Prismatic glass of 3.2 mm
Thermal insulation of the collector Glass wool
Laser welding type
