Flat rectangular Expansion vessel RP200/12

Description

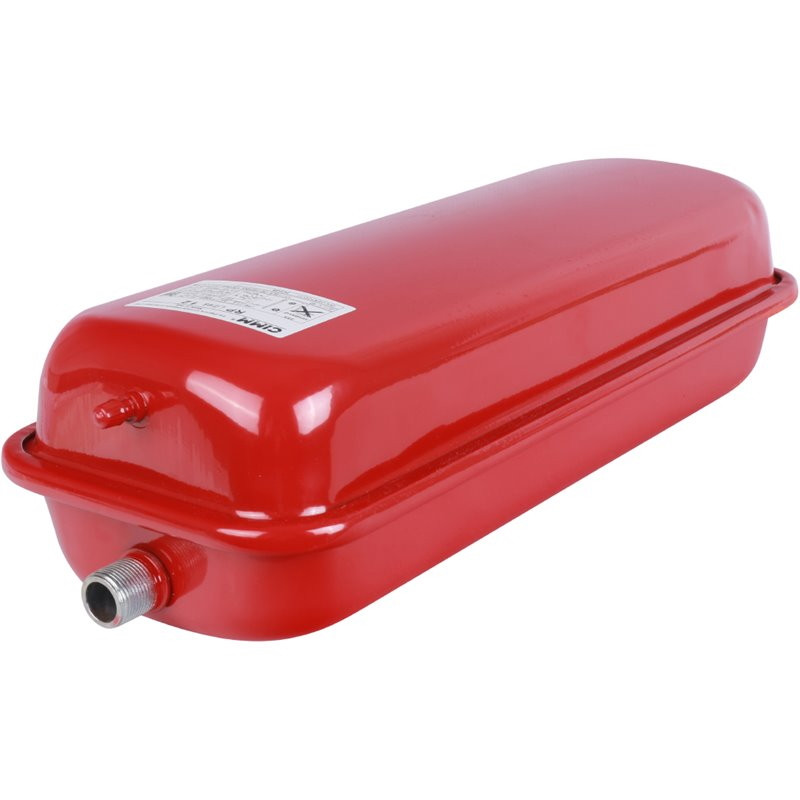

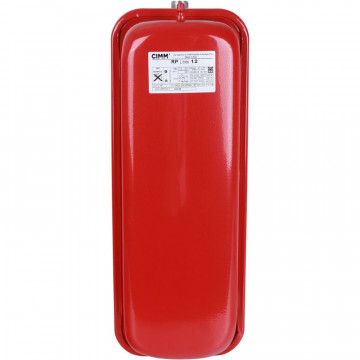

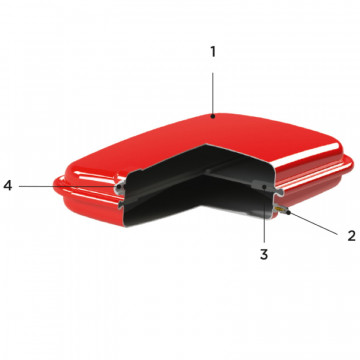

Flat rectangular Expansion vessel CIMM RP200/12

• Flat expansion tank with a rectangular shape to optimize spaces in closed circuits

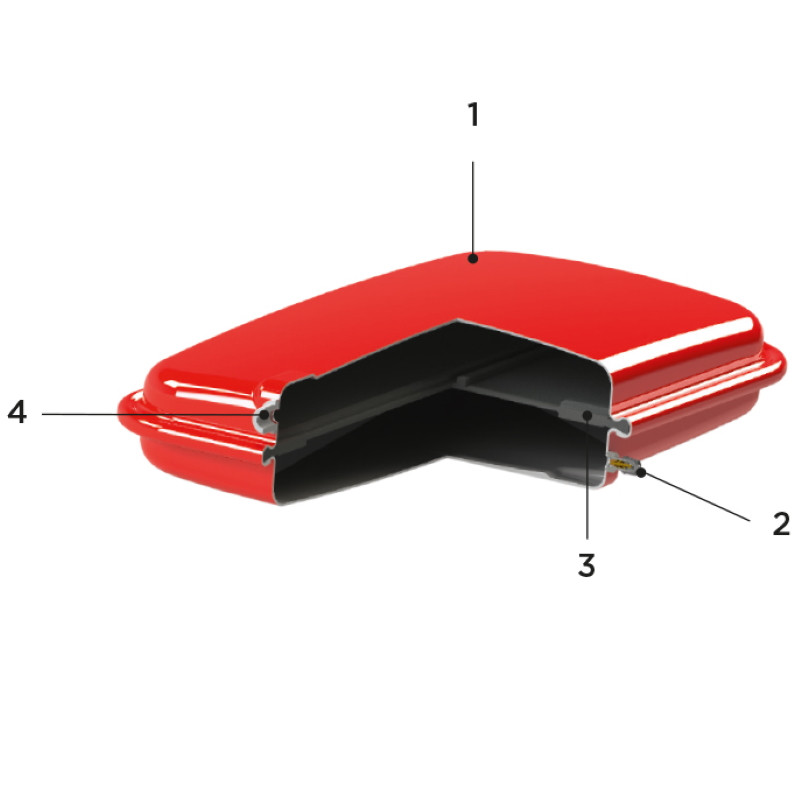

• Rubber diaphragm fixed membrane
• 100% Made in Italy
• Produced according to the standards established by PED 2014/68/UE and DIN EN 13831 regulations
• Quality certified and guaranteed by international regulations
• High level of customization
• Epoxy powder exterior painting to guarantee a high level of protection against oxidation and a fine aesthetic final quality
• Accurate quality controls during all manufacturing process phases

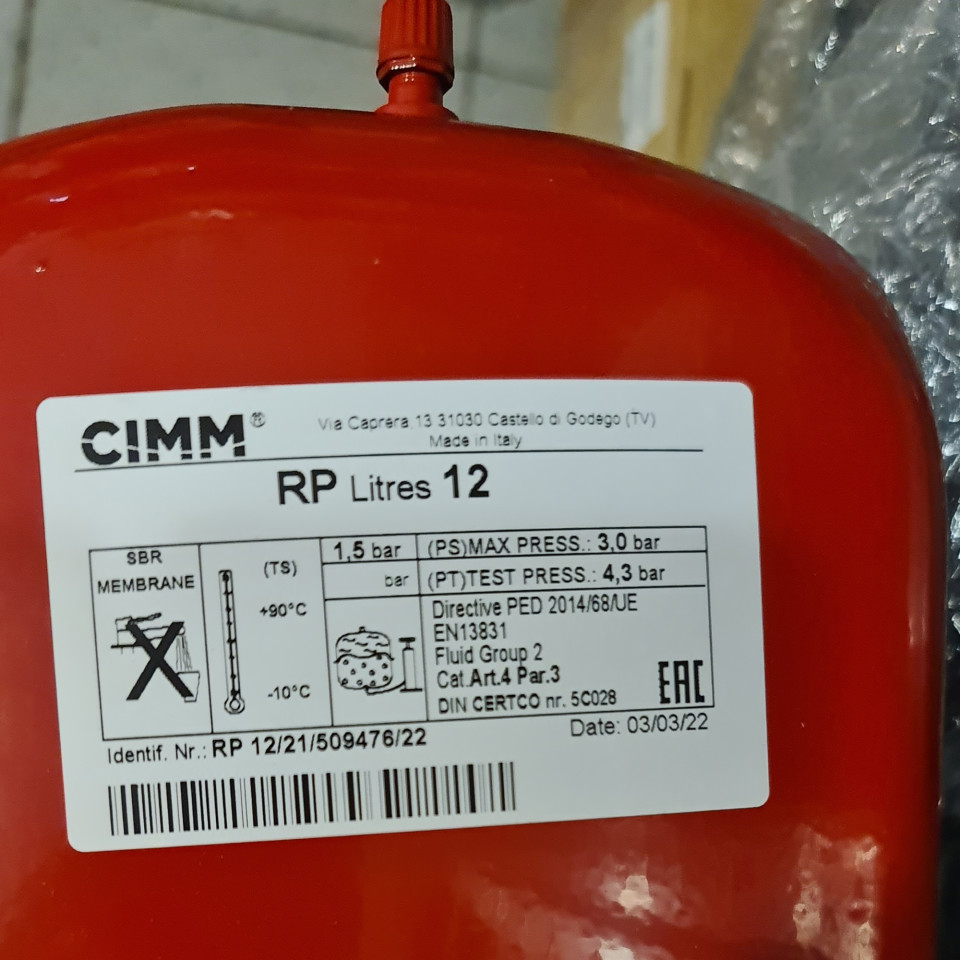

Technical specifications

Capacity: 12 liters
Dimensions: 200x515x146 mm
Water connection inlet: M 3/4" Gas
Rubber membrane type: SBR
Standard preload pressure: 1.5 bar
Maximum working pressure: 3.0 bar
Working temperature: -10° C - +90° C
Exterior finish color: Red RAL 3000
