Flue Gas Thermostat CTF151
Description

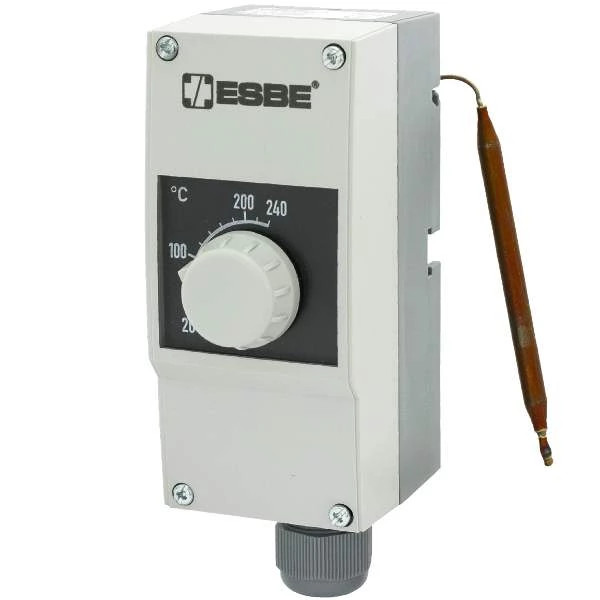

Flue Gas Thermostat ESBE CTF151
- On/off switch based on flue gas temperature.
- Switch temperature between 20°C and 240°C.
The series CTF150 is typically used for on/off control of circulation pumps and load units.
The flue gas thermostat consists of a temperature probe connected to the switch unit.
The switch is used to control the electrical supply to a circulation pump or a load unit with an integrated circulation pump. The temperature probe can be mounted on the outside of the flue gas pipe, or inside the pipe using the immersion pocket series CTF851.
The switch unit is prepared for easy wall mounting.
Technical data
Enclosure rating: IP54 (EN 60529)
Hysteresis: 7% of the scale range
Contact rating: N/C contact: max. 16(2,5)A 230 VAC;
N/O contact: max. 6,3(2,5)A 230 VAC;
min. 24V AC/DC, 100mA
Weight: 0,2 kg
Temperature probe: Ø6 mm x 96 mm
Temperature probe line: Ø1,5 mm x 1500 mm
Immersion pocket: Ø8 mm x 0,75 mm, length 100 mm
Storage temperature: -30°C to +50°C
Usage temperature: 0°C to +50°C
Material, Case lid: Plastic ABS
Material, Housing: Plastic PA (inforced)
Material, Immersion pocket: Stainless steel (CrNi, 1.4571)
Material, Temperature probe: Stainless steel (CrNi, 1.4301)
Material, Temperature probe insulation: Plastic PVC hose
