Gas combi Boiler Vitodens 100-W 32 B1KG

Description

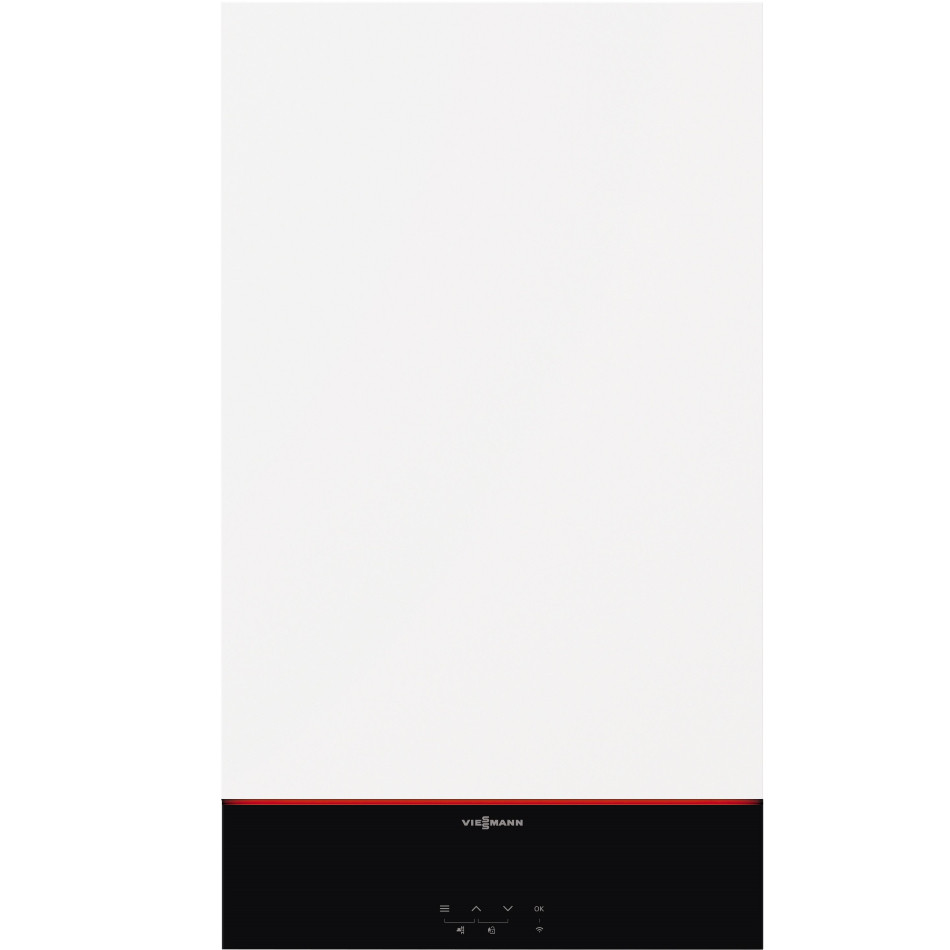

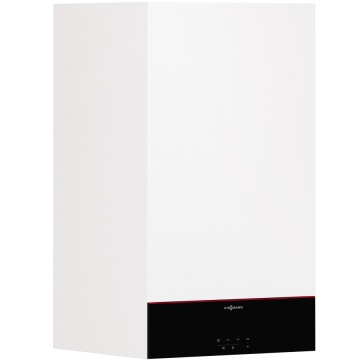

Viessmann Vitodens 100-W 32 B1KG wall mounted gas condensing combi boiler.

Very attractive price/performance ratio: Class A rated for energy efficiency. With reliable Viessmann product quality.

Durable and efficient: Up to 94% of the fuel used is converted into heat.

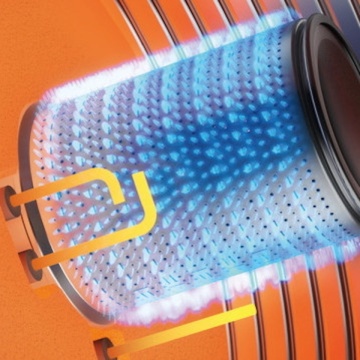

MatriX-Plus burner: With Lambda Pro combustion controller for consistently high efficiency and clean combustion.

Simple and intuitive operation: Via LCD screen with 7-segment display and touch buttons; alternatively via mobile device

Web-enabled via integrated WiFi interface: For more convenience, energy savings and security with ViCare

Natural gas with 20 % hydrogen content: Certified for 20 % hydrogen content in natural gas.

Compact and efficient wall mounted gas condensing boilers with a very attractive price/performance ratio

As a large-scale manufacturer with many years of experience in the production of wall mounted boilers, we know what matters. Viessmann product quality is something you can rely on. Viessmann wall mounted boilers are well known for innovative technology and performance, but their reliability and durability are renowned.

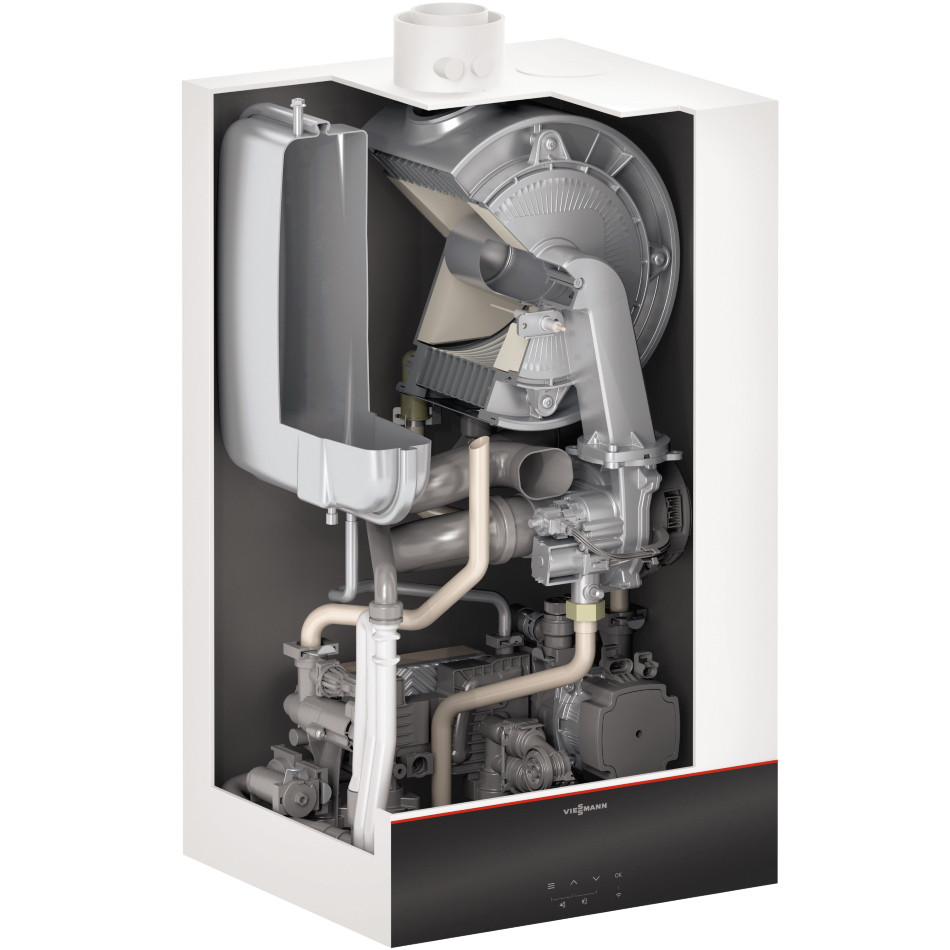

Thanks to advanced assemblies, this wall mounted gas condensing boiler is extremely compact and can be installed even in small recesses. No side service clearances are required, since all the connections are easily accessible from the front. This makes Vitodens wall mounted boilers ideal for modernisation of apartments or detached houses.

Equipped for the future

The technology that enables the use of natural gas/hydrogen blends for heating buildings is already available and on the market in many thousands of cases. In principle, the gas condensing boilers of the latest Vitodens 100 generation can already be operated with 20 percent hydrogen today. Home and apartment owners who opt for these modern wall mounted and compact appliances are therefore ideally equipped for the future. Learn more about climate-neutral heating with hydrogen.

Stainless steel Inox-Radial: efficient and durable

Stainless steel makes all the difference. The corrosion-resistant stainless steel Inox-Radial heat exchanger is at the heart of the Vitodens 100-W. It converts the consumed energy into heat very efficiently. In addition, the highly durable, high grade stainless steel ensures reliability.

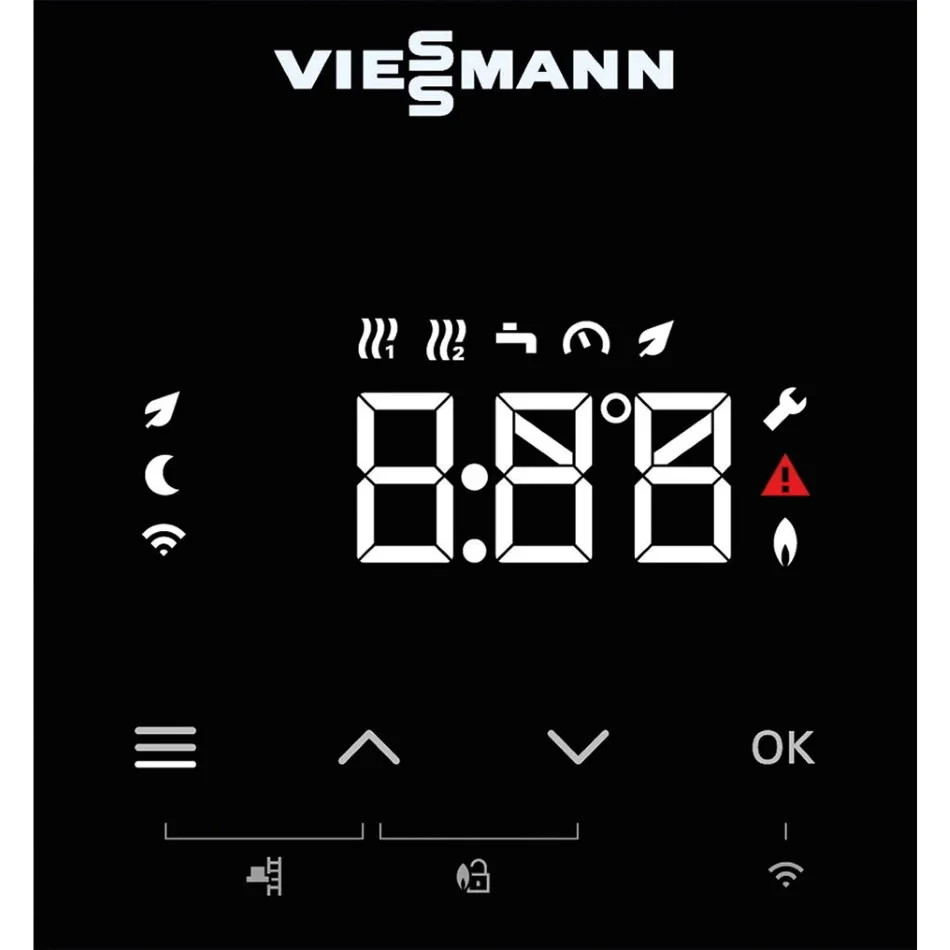

Simple operation with 7-segment display

The LED screen with 7-segment display of the new Viessmann One Base platform features a discreet "black panel" visual design and is noted for its simple, easy to understand operation. It can be used for convenient control of heating systems with a direct heating circuit and/or a heating circuit with mixer.

Energy savings, convenience and security with ViCare

The Vitodens with the new Viessmann One Base platform has an integral WiFi interface. This connects the heating system directly to the internet if required. Operating the heating system is very simple and intuitive with the ViCare app. It sets the course for digital services and is in direct contact with the local heating contractor.

As an option (subject to an additional charge), ViCare can use the smartphone's GPS function to detect how far the user is from the heating system. If specified distances are exceeded, the room temperature is automatically reduced. A further benefit is that Viessmann offers a five year guarantee covering the whole system as soon as connectivity is set up.

ViCare thermostat for more convenience and efficiency

You can also expand the system with a digital ViCare thermostat to enjoy even more convenience and efficiency.

Product details

Output in kW 3.2-32 kW

ERP Efficiency 94% (Class A)

Fuel Natural gas, LPG, 20 % hydrogen mixture

Dimensions
Length (depth) 360 mm, Width 400 mm, Height 700 mm
Weight 33 kg
Flue gas connection Ø 60 mm. Ventilation air connection Ø 100 mm
DHW flow rate (Combi boiler)
@ 35˚C temp. rise (cont) 14 l/min
@ 30K rise (EN13203-1) 17 l/min

Application area: Detached/terraced houses, apartments, for new build and modernisation projects

Operation: Simple and intuitive operation via LED screen with 7-segment display and touch buttons; alternatively via mobile device. Web-enabled thanks to integral WiFi interface for more convenience, energy savings and security with ViCare.

Additional features
MatriX-Plus burner with Lambda Pro combustion controller for permanently high efficiency and clean combustion. Certified for 20 % hydrogen content in natural gas.
