Gas condensing Boiler Condens 100 120 CH2

Description

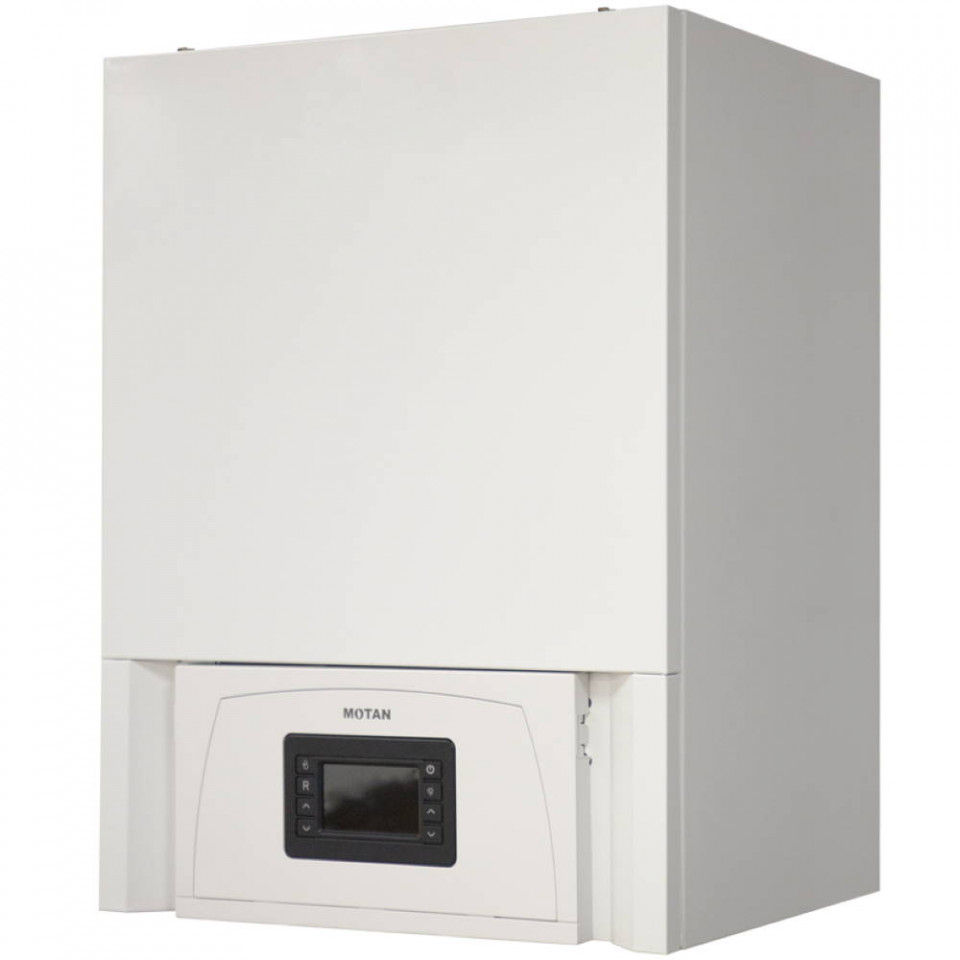

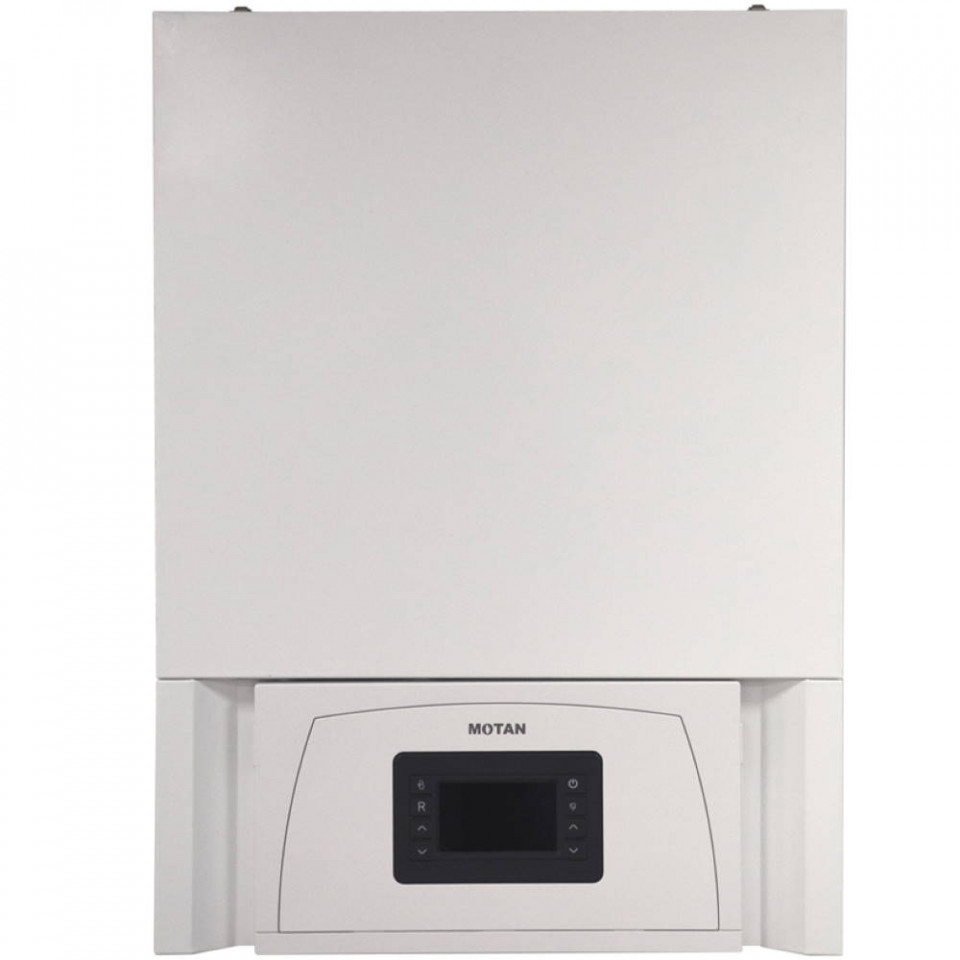

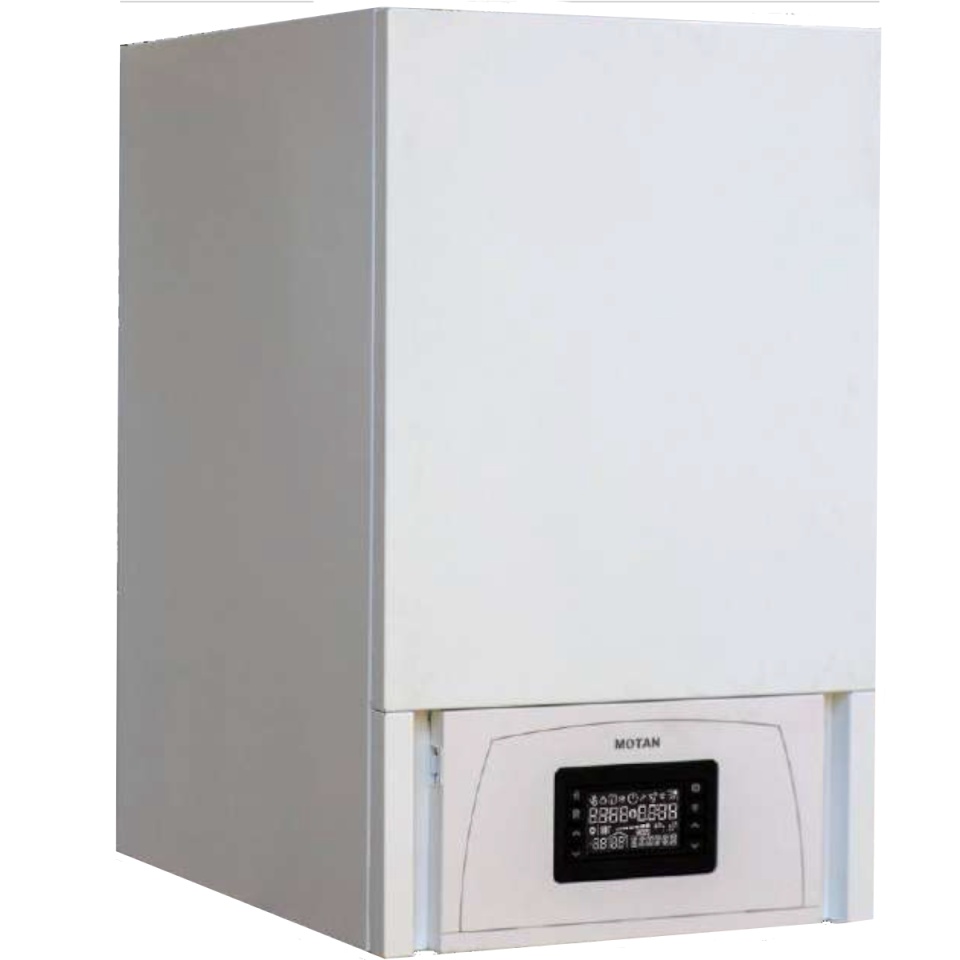

Motan Condens 100 120 CH2 gas Boiler for heating.

This Boiler is intended only for the heating installation.

The Condens 100 120 CH2 condensing Boiler operates in total condensation mode and is the top model in the MOTAN range of gas Boilers.

Condensing Boiler, specially designed for heating;
Efficiency up to 105% and modulation ratio of 1:6;
Environmentally friendly. During operation it emits significantly reduced amounts of NOx, CO and CO2 - NOx Class 5;
Designed and built for maximum efficiency and economy in operation according to the latest European legislative requirements - low energy pump;
The possibility of mounting in cascade;
Energy efficiency ★★★★ (dir. 92/42/CEE);

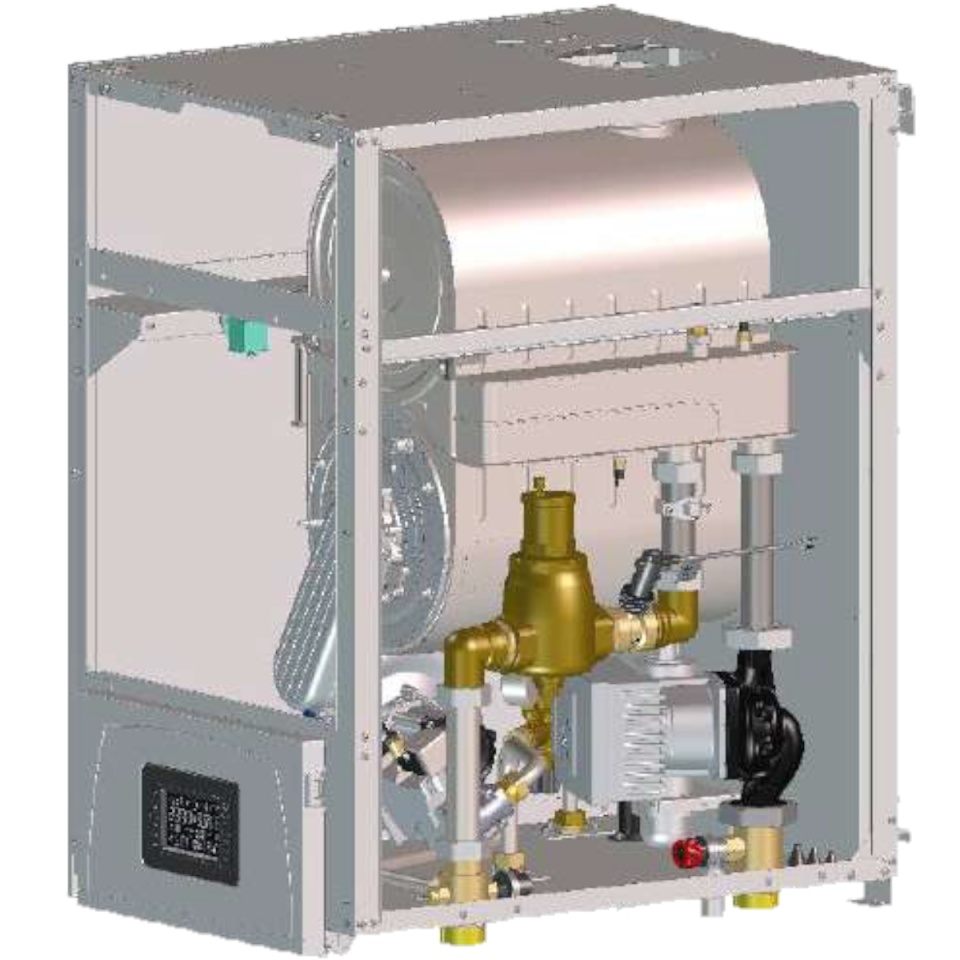

Valmex Circond stainless steel main heat exchanger
Fan with built-in gas-air nozzle SIT
SIT gas valve

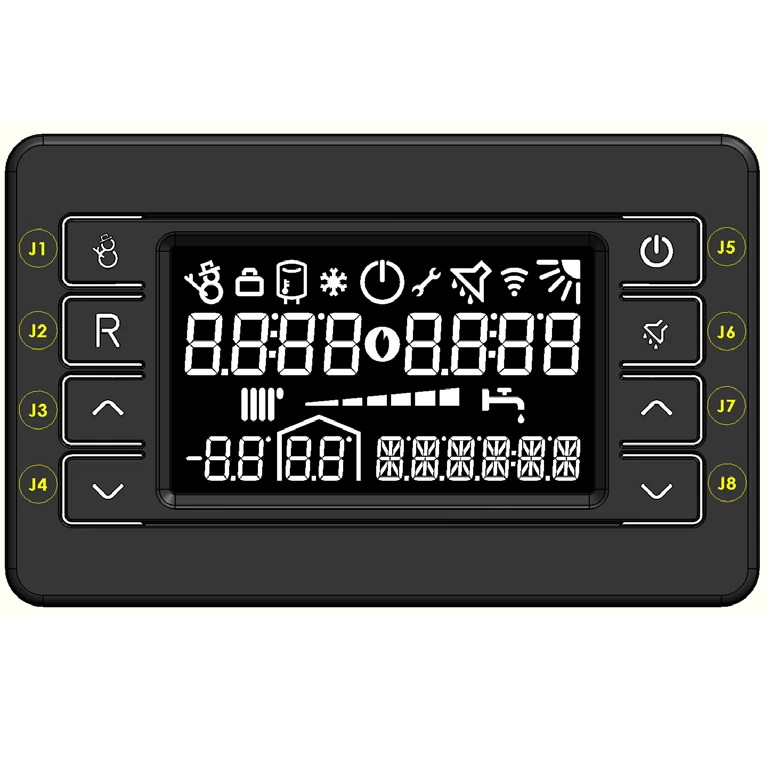

Control panel with LCD display that provides an advanced graphic interface.

Technical data

Energy efficiency (dir. 92/42/CEE) ★★★★
Forced draft, variable speed fan
Reference gas G20
Class Nox 5
Seasonal heating energy efficiency class A
Maximum rated power (80/60ºC) (G20-I2H) 110 kW
Maximum rated power (50/30ºC - condensing) (G20-I2H) 113 kW
Thermal efficiency at nominal calorific power (80/60ºC) 98%

Thermal efficiency at normal calorific power (50/30ºC - condensation) 105%
Maximum nominal gas consumption 11.8 m3/h
Maximum recommended supply pressure 31 mbar
Nominal gas supply pressure G20 - 21 mbar
Flue gas temperature: approx. 64°C
Heating circuit water pressure 1-3 bar
Heating circuit temperature adjustment range 30-80 degrees C
Dimensions 857 x 514 x 723 mm
Weight 94.5 kg
Connections: Flow/Return 1 1/4", Cold water 3/4", Gas 3/4"
Electrical power consumed 500 W
Electrical protection grade IPX5D

The price includes the standard flue gas exhaust / air intake kit.
