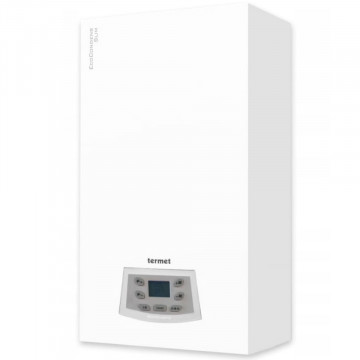

Gas condensing Boiler Ecocondens Slim 20 Combi

Name: Gas condensing Boiler Ecocondens Slim 20 Combi
Brand: Termet
SKU: WKJ6011000000/EU
Price: 4300.82 RON
Availability: InStock

RON 4,300^.82 (VAT Included) RON 4,777^.98

RON 3,554^.40 (VAT excluded)

Delivery costs are not included

Buy now, pay later from RON 94.05 / Month Details

How can we help you?

Call us: +40740015767 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

Gas condensing Boiler Thermet Ecocondens Slim 20 Combi

New ECOCONDENS SLIM gas condensing boiler is a technically advanced, reliable and efficient device.

Wide modulation range makes it a perfect solution for houses and flats with small areas and low heat demand, while ensuring a high level of sanitary comfort (L class).

Compact dimensions of the boiler (depth of only 250 mm!) predispose it to be installed e. g. into cabinets, which allows to optimize available space.

energy class: A
heat exchanger made of stainless steel
wide range of modulation: from 13% to 100%
high efficiency circulation pump
stepless speed regulation fan (controlled electronically)
cylinder burner made of stainless steel – low level of NOx emission (6th class)
complete protection system
optimization of boiler operation is possible due to application of:
- outdoor temperature sensor
- temperature regulator: ON/OFF, Open-Therm or 0-10V,
- ROUND system for remote boiler control via smartphone,
- EVOHOME system for remote control of up to 11 heating zones
- ready-to-use multi-zone modules for controlling up to 3 SIM heating systems
boilers can also cooperate with:
- heat pumps air/water
- solar panels
- domestic hot water cylinder by 3-way valve (concerns system boilers).

Specifications

Thermal power (at temp. 80/60°C) 2,7 - 20,0 kW
Thermal power (at temp. 50/30°C) 3,0 - 22,0 kW
Heat load 2,8 - 20,4 kW
Seasonal space heating energy efficiency ηs 93 %
Efficiency of the boiler at nominal load and average
boiler water temperature of 70°C 97,6 %
Efficiency of the boiler at partial load
and return water temperature of 30°C 107,9 %
Seasonal space heating energy efficiency class A
Useful heat output at rated thermal power P4 (for modulated
boilers - arithmetic mean of min and max) 20,0 kW
Useful heat output at 30% of rated power P1 (for modulated
boilers - 30% of arithmetic mean) 6,6 kW
Efficiency η4 88,0 %
Efficiency η1 98,0 %
Max water pressure 3 bar
Max CH temperature 95 °C
Standard adjustable temperature 20 - 80 °C
Pump head at 0 flow 0,7 bar
Range of water temperature regulation 30 - 60 °C
Sound power level LWA 48 dB
Emission of nitrogen dioxide 21 mg/kWh
Emission class of nitrogen dioxide (NOx) 6
Expansion vessel capacity 6 dm³
Standby mode power consumption PSB 0,003 kW
Electricity consumption at full load elmax 0,06 kW
Electricity consumption at partial load elmax 0,02 kW
Type and supply voltage ~ 230 ±10%/ 50Hz V
Protection degree IPX4D
Heating water and gas connection G 3/4 inch

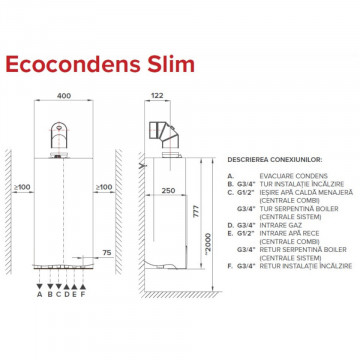

Dimensions 777 x 400 x 250 mm
Weight 31,5 kg
Exchanger material stainless steel
