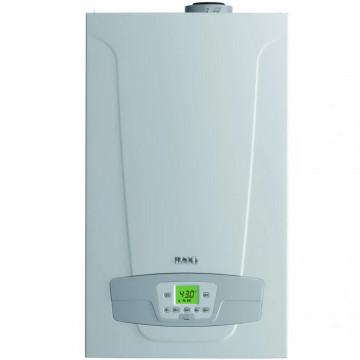

Gas Condensing Boiler Luna Duo-tec MP+ 1.50

Description

Gas Condensing Boiler Baxi Luna Duo-tec MP+ 1.50 for Heating

Features

• Wide modulation ratio up to 1:9 (1:5 mod. 1.130 and 1.150) better efficiency and noiseless operation

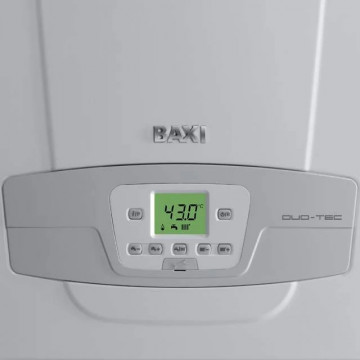

• Digital control panel with back-lighted wide LCD display
• High efficiency and wide modulation circulating pump included inside the boiler

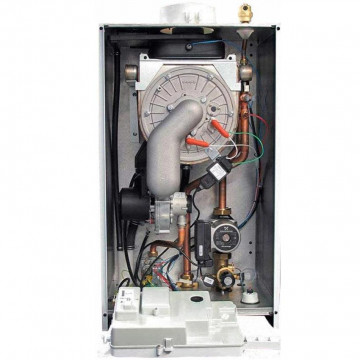

• Heat exchanger, with combustion chamber and hydraulic circuit, composed by stainless steel coils
• Metal frame that allows single and cascade installation of the boilers in the center of thermic rooms
• Enhanced electronics allows to manage cascade installations up to 16 boilers
• Simplified maintenance operations: frontal access to the internal components
• Maximum operating pressure: 4 bar

Hydraulic system

• Modulating pump included in the boiler (Luna Duo-tec MP models)
• High efficiency full modulating pump with enhanced head pump (Luna Duo-tec MP+ models) System to prevent pump sticking operating every 24 hours
• Flow and return NTC sensors
• Water tray for condensate drain from supply air duct

Thermoregulation system

• Built-in climatic regulation (outdoor sensor supplied as optional)
• Mixed zones systems (high and low temperatures) installation option
• Cascade system installation option (up to 16 boilers) NTC sensor for DHW cylinder control option
• Heating and DHW timers integrated in the control panel

Control system

• Full electronic anti-frost device
• Electronic thermometer
• Central heating pressure gauge
• Flow over-temperature thermostat
