Gateway sensoNET VR921

Description

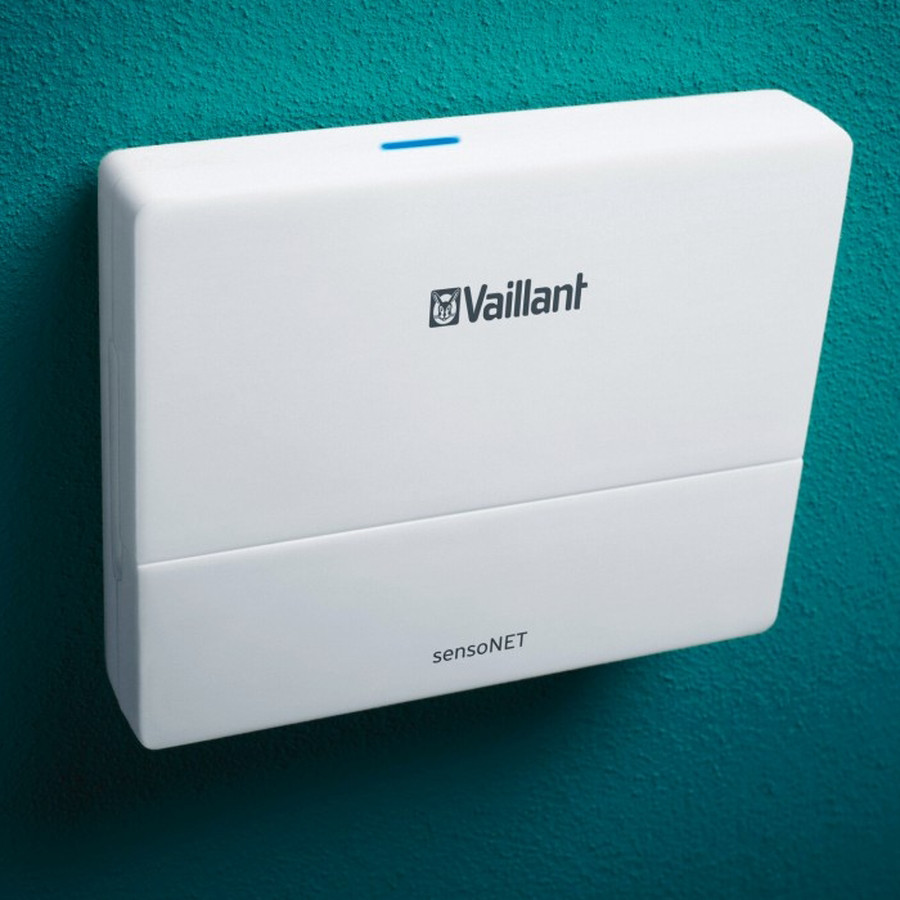

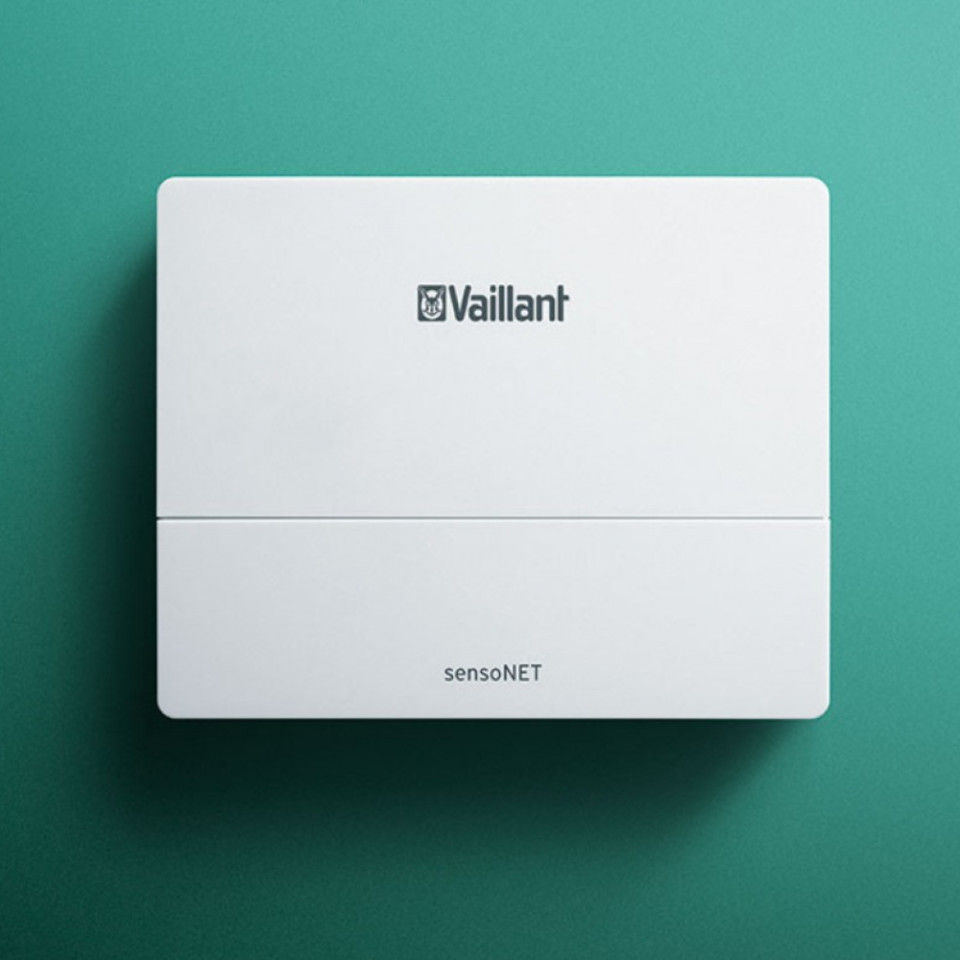

Communication Gateway Vaillant sensoNET VR921

• Be in total control of your heating system with the sensoAPP. The sensoAPPprovides the ability to remotely control the heating system to ensure comfort as well as operating in a cost efficient manner
• The sensoAPP notifies the user about the status of their heating system. This includes operational irregularities, information about when maintenance is required and preventative notifications
• With the sensoAPP, you can easily set up time programmes for heating and hot water
• Understand the energy consumption of your Vaillant heating appliances to help the user be more environmentally conscious and change their behaviours to use less energy

Technical Data

Rated voltage 5 to 24 V
Requirement for the power supply ES1 or PS1 in accordance with IEC 62368-1
Radio frequency bands 868.0–868.6 MHz, 869.4–869.65 MHz
WLAN radio frequency band 2.4 GHz
Radio frequency output at 868.0 – 868.6 MHz (max. e.r.p.) 6.6 dBm
Radio frequency output at 869.4 – 869.65 MHz (max. e.r.p.) 6.9 dBm
WLAN radio frequency output (max. e.r.p.) 17.5 dBm
WLAN channels 1 – 13

Power consumption (average) 3.0 W
Maximum envirnomental temperature 50℃
Low-voltage wire (bus line) – cross-section ≥ 0.75 mm²
Ethernet cable (LAN) min. Cat 5
Height 96 mm, Width 122 mm, Depth 36 mm
IP rating IP 21
Protection class III
Permitted degree of environmental pollution 2

Technical data – Plug-in power supply unit

Rated voltage 110 to 240 V~
Rated current 0.5 A
Output AC voltage 5 V
Max. output direct current 2.1 A
Power frequency 50/60 Hz
IP rating IP 20
Protection class II
Permitted degree of environmental pollution 2
