Description

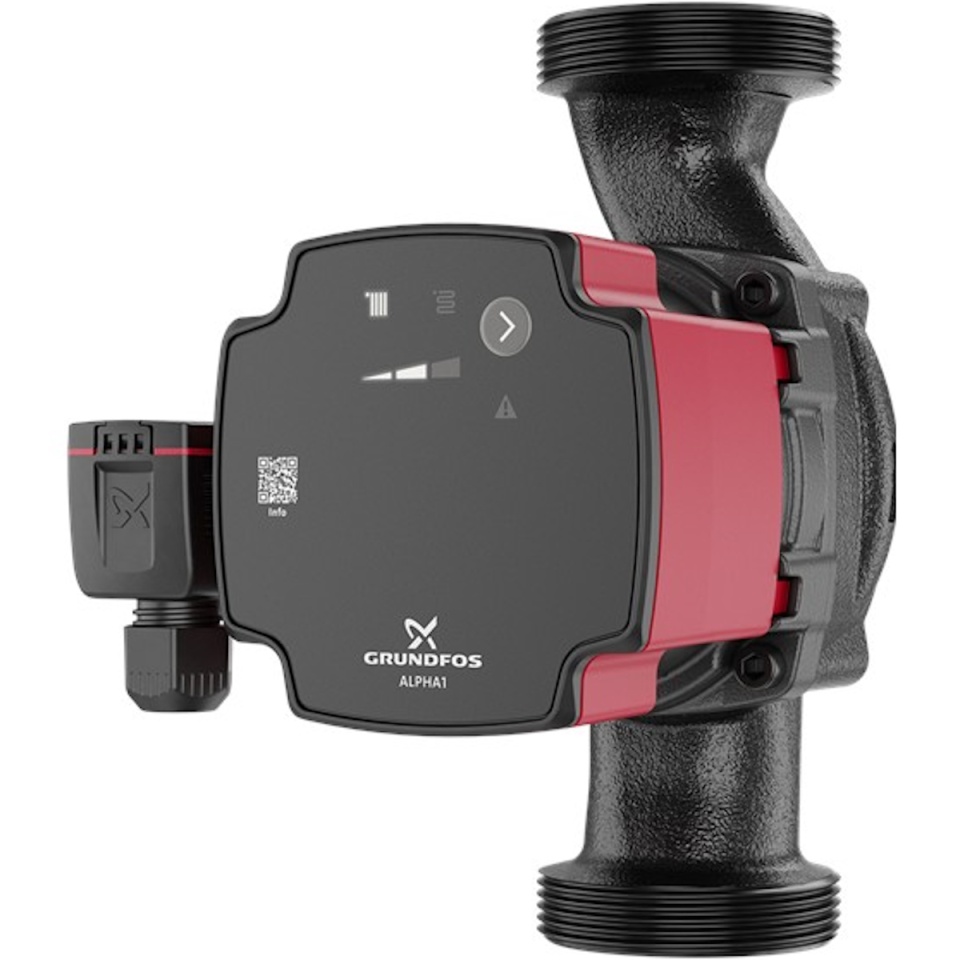

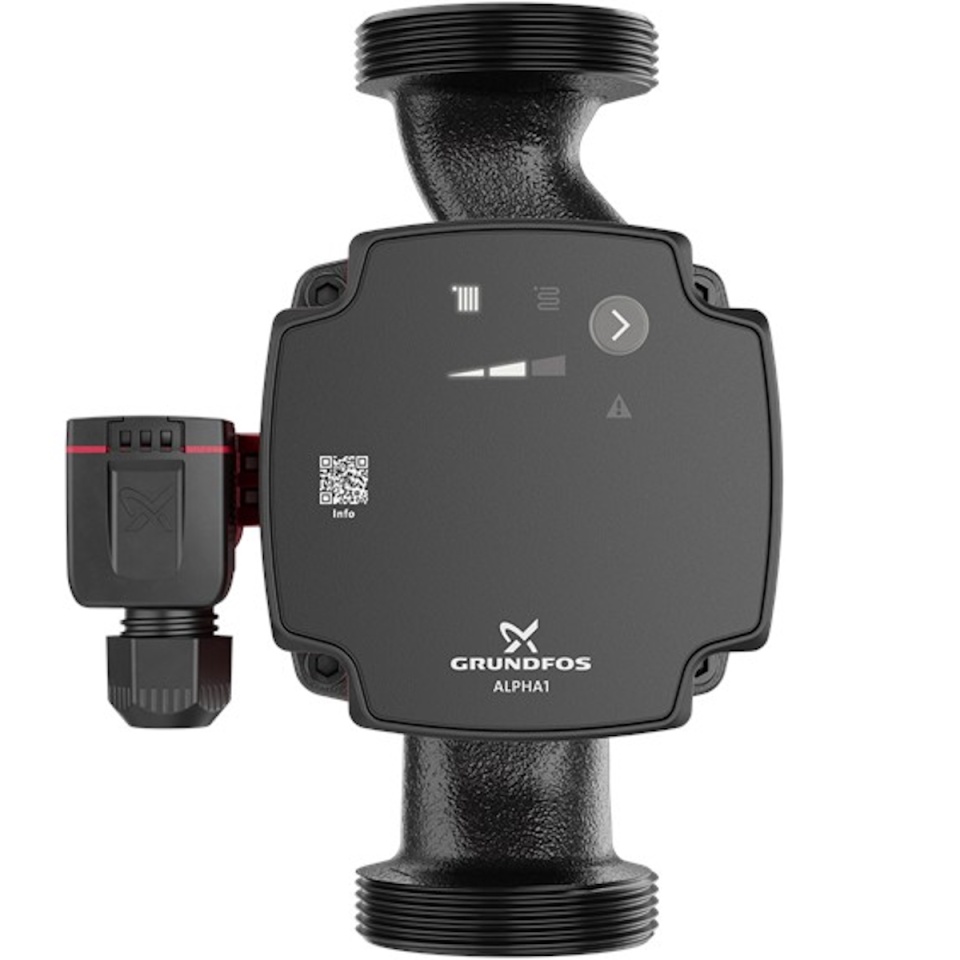

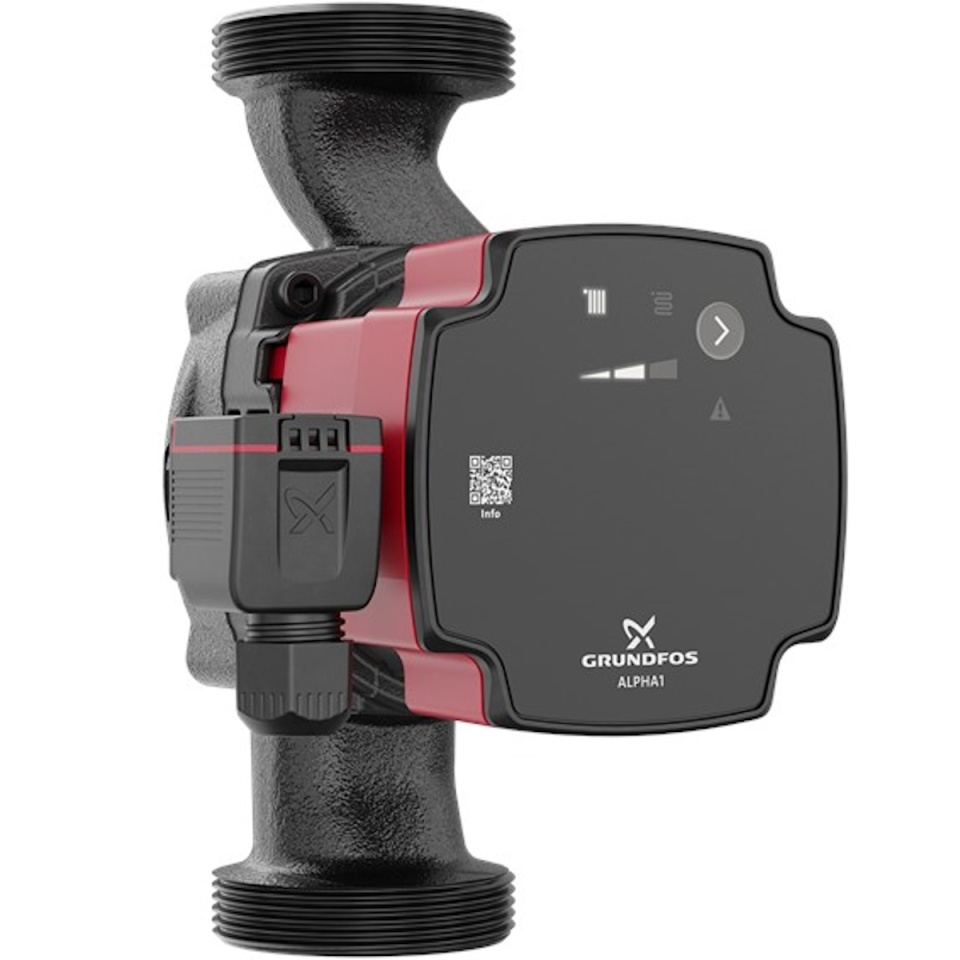

Grundfos ALPHA1 32-60 180 Circulation Pump (PN: 93074162)
The Grundfos ALPHA1 32-60 180 circulation pump (Part Number 93074162) is a high-efficiency canned-rotor circulator designed for moving liquids in domestic and commercial heating and cooling systems. Built around an electronically commutated permanent-magnet motor (ECM technology), the ALPHA1 delivers exceptional energy performance with a variable power consumption ranging between just 4 W and 45 W, achieving an Energy Efficiency Index (EEI) of ≤ 0.20.
Featuring a 2" (DN32) threaded connection and a 180 mm port-to-port dimension, this model is an ideal choice for both new installations and direct replacements in radiator systems, underfloor heating, or boiler loops.
Key Features & Benefits:
-
3 Pre-Set Control Modes: Proportional pressure, constant pressure, and constant curve (3 fixed speed levels), easily selectable via a single control button.
-
Low Power Consumption: Intelligent motor control adjusts performance based on actual system demand, significantly reducing electricity bills.
-
High Starting Torque: Eliminates the risk of rotor lock/seizure after long idle periods (such as during summer months).
-
Robust Construction: Electrocoated cast iron pump housing for enhanced corrosion resistance, featuring ceramic shaft and bearings for smooth, quiet operation.
-
Easy Electrical Connection: Fast wiring with the tool-free ALPHA Plug connector.
Technical Specifications
| Technical Parameter | Value |
| Manufacturer | Grundfos |
| Product Range | ALPHA1 |
| Model Name | ALPHA1 32-60 180 |
| Product Code / EAN | 93074162 / 5715467403886 |

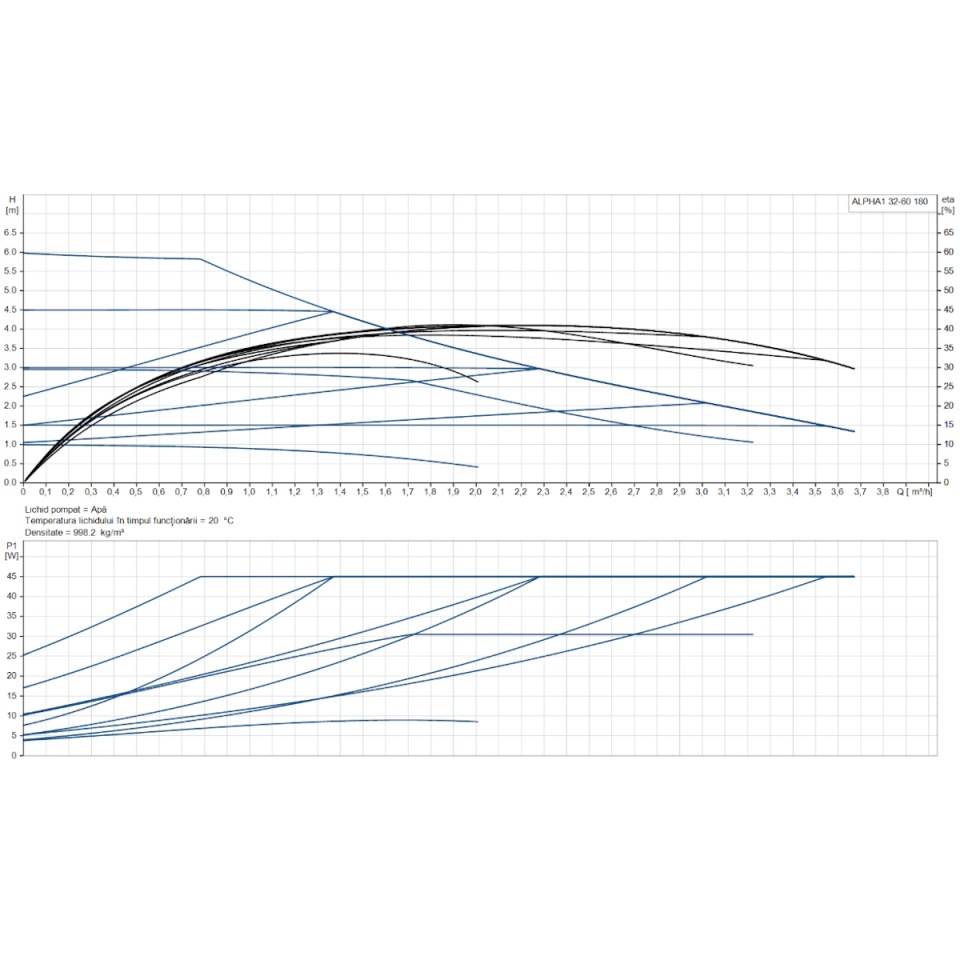

| Max Flow Rate (Qmax) | 3.5 m3/h (Nominal flow: 2.28 m3/h) |
| Max Head (Hmax) | 6 m (Nominal head: 3.06 m) |
| Port-to-Port Distance | 180 mm |
| Pipe Connection | G 2" (for DN32 union fittings) |
| Max Operating Pressure | 10 bar (PN 10) |
| Power Input (P1) | Min. 4 W – Max. 45 W |
| Mains Voltage | 1 x 220–240 V, 50/60 Hz |
| Energy Efficiency Index (EEI) | < 0.20 |
| Liquid Temperature Range | -10 oC ... +110 oC |
| Ambient Temperature Range | 0 oC ... +55 oC |
| Pump Housing Material | Cast Iron (EN-GJL-150) |
| Impeller Material | Composite (PES + 30% GF) |
| Enclosure Class / Insulation | IP44 / Class F |
| Net Weight | 2.1 kg |
Applications
-
One-pipe and two-pipe radiator heating systems.
-
Underfloor heating systems.
-
Air conditioning and boiler circulation loops.
Frequently Asked Questions (FAQ)
Q: What do the numbers "32-60 180" stand for in the model name?
-
32: Refers to the nominal connection diameter (DN32 / 2" thread size).
-
60: Represents the maximum pump head of 6.0 meters.
-
180: Indicates the overall fitting length / port-to-port distance (180 mm).
Q: Are pipe unions included with the pump?
-
The package typically includes the sealing gaskets and the ALPHA Plug electrical connector. The set of 2" x 1 1/4" pipe unions is usually sold separately if not already present on your installation.
Q: Can this pump be used for domestic hot water (DHW)?
-
For potable domestic hot water loops, pump housings made of bronze or stainless steel (such as the Grundfos COMFORT or ALPHA N ranges) are required. The cast iron housing of the standard ALPHA1 is designed for closed heating and cooling circuits.
