HEP Optimo Basic 25-4.0 G180 Circulator Pump

Name: HEP Optimo Basic 25-4.0 G180 Circulator Pump
Brand: Armstrong Fluid
SKU: 0623-34204.2-71
Price: 880.69 RON
Availability: InStock

RON 880^.69 (VAT Included)

RON 727^.85 (VAT excluded)

Delivery costs are not included

Buy now, pay later from RON 20.52 / Month Details

How can we help you?

Call us: +40740015767 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

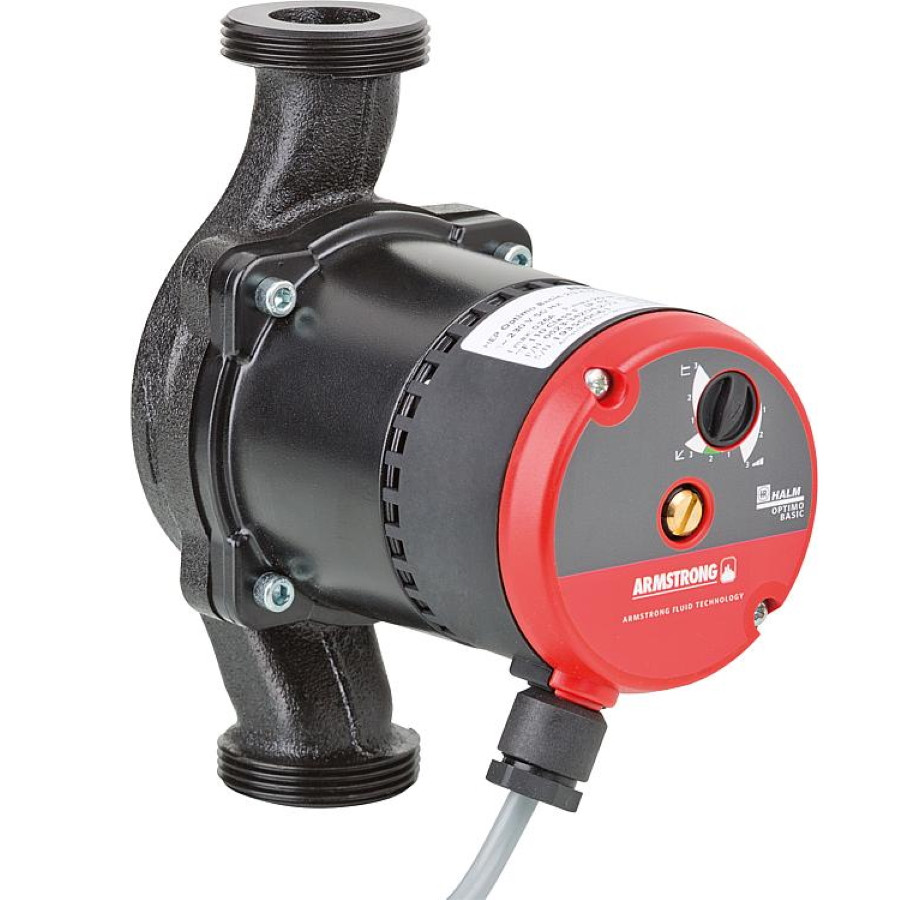

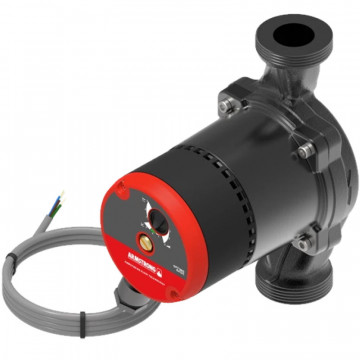

Armstrong HEP Optimo Basic 25-4.0 G180 Circulator Pump

The electronically controlled HEP Optimo Basic high efficiency wet rotor circulators with permanent magnet technology are designed for use in heating systems with variable or constant rate of flow.

Benefits

Manual start-up feature
Smooth running
Very low energy consumption
Integrated night economy feature
Air vent screw
Convenient operation
Space-saving axially integrated terminal box
Automatic adjustment to pressure conditions
Cataphoretic coated pump housing
Pre-mounted, cable (1 m)
Compact design

EEI

≤ 0.17 HEP Optimo Basic XX-4.0 GXXX
≤ 0.18 HEP Optimo Basic XX-6.0 GXXX
≤ 0.20 HEP Optimo Basic XX-8.0 GXXX

Technical Data

Applications: Residential heating applications including underfloor, solar and heatpumps
Description: The electronically controlled HEP Optimo Basic N high efficiency wet rotor circulators with permanent magnet technology are designed for use in heating systems with variable or constant rate of flow.
Materials: Pump housing - Cast Iron, Impeller - Polyamide (PA-GF 25), Shaft - Ceramic, Bearing - Ceramic, Bearing Plate - Stainless Steel, Can - Stainless Steel
Configuration: 3 control modes: Proportional pressure, fixed speed and constant pressure

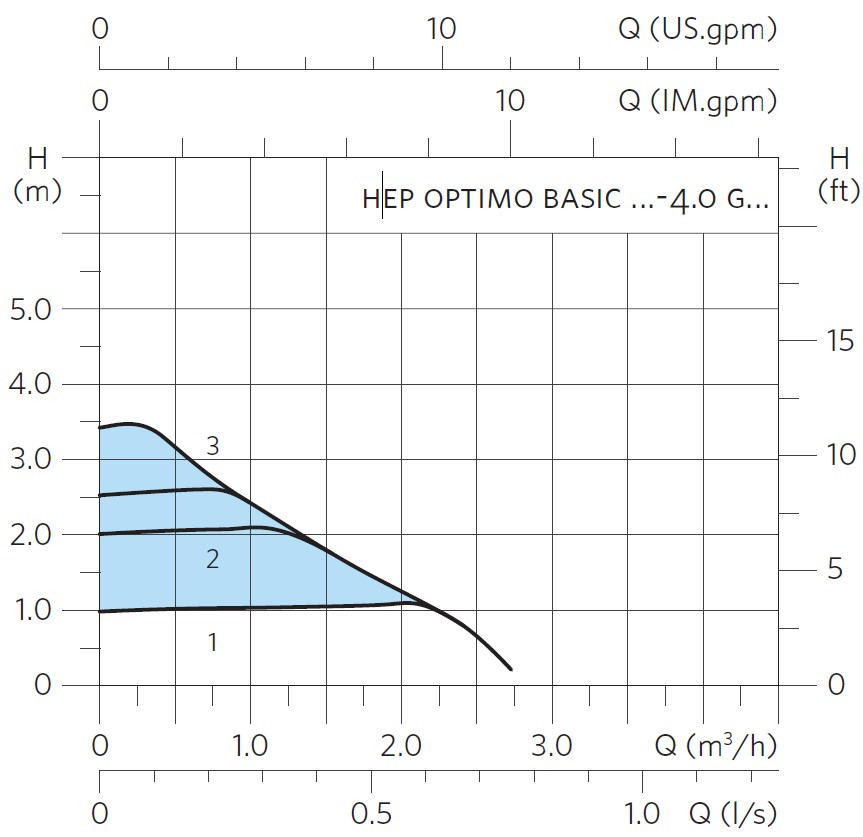

Performance Range: Up to 2.5 m³/h; 3.8 m head
Temperature: Max ambient temp. +40°C; max fluid temp. +110°C
Power: 4-23 W
Size: 1" threaded connections;180 mm installation lengths

Motor protection

External motor protection is not required.

Integrated night economy feature

When the automatic night economy feature is activated, the circulation pump switches between normal mode and economy mode (characteristic curve MIN). The flow temperature is detected by a temperature sensor, the pump reacts accordingly. For this, it is necessary for the circulation
pump to be installed in flow
