Description
IBO OHI 25-60 180 Central Heating Circulation Pump
Reliable & Energy-Efficient Heating Solution
Upgrade your heating system with the IBO OHI 25-60 180 circulator pump. Engineered for residential and commercial heating setups, it delivers constant fluid circulation while minimizing power consumption. The integrated 3-stage mechanical switch allows you to easily adjust pressure and flow to match your system’s exact requirements.
Why Choose the IBO OHI 25-60 180 Pump?
-
3 Adjustable Power Modes: Select between 46W, 63W, or 93W to balance energy efficiency with maximum head lift (up to 6 meters).
-
High-Temperature Tolerance: Handles operating water temperatures up to +110°C and system pressures up to 10 bar.
-
Glycol Compatibility: Suitable for heating systems using up to a 30% glycol mixture for frost protection.
-
Standard Fit: 180 mm port-to-port installation length with 1 1/2" connection threads makes replacing older pumps fast and hassle-free.

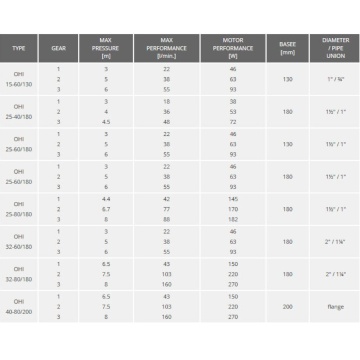

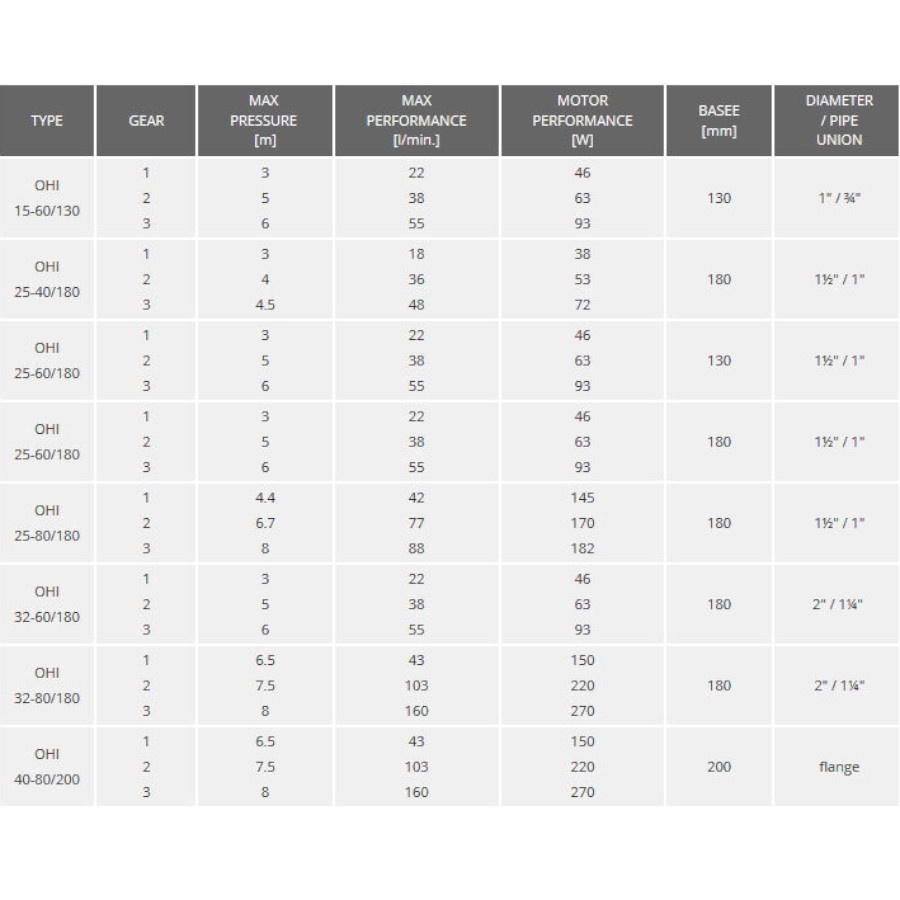

Technical Data Table
| Specification | Value / Detail |
| Model | IBO OHI 25-60 / 180 |
| Port-to-Port Distance | 180 mm |
| Connection Diameter | 1 1/2" Thread (DN25 / 1" pipe) |
| Motor Power (230V) | 46 / 63 / 93 W (Speed 1 / 2 / 3) |
| Flow Rate (Min / Med / Max) | 22 / 38 / 55 L/min (Speed 1 / 2 / 3) |
| Maximum Head Lift | 3 / 5 / 6 m (Speed 1 / 2 / 3) |
| Max Operating Pressure | 10 bar |
| Max Water Temperature | +110°C |
| Max Glycol Concentration | Up to 30% |
| Protection Rating / Insulation | IP 44 / Class B |
| Net Weight | 2.4 kg |
