Description

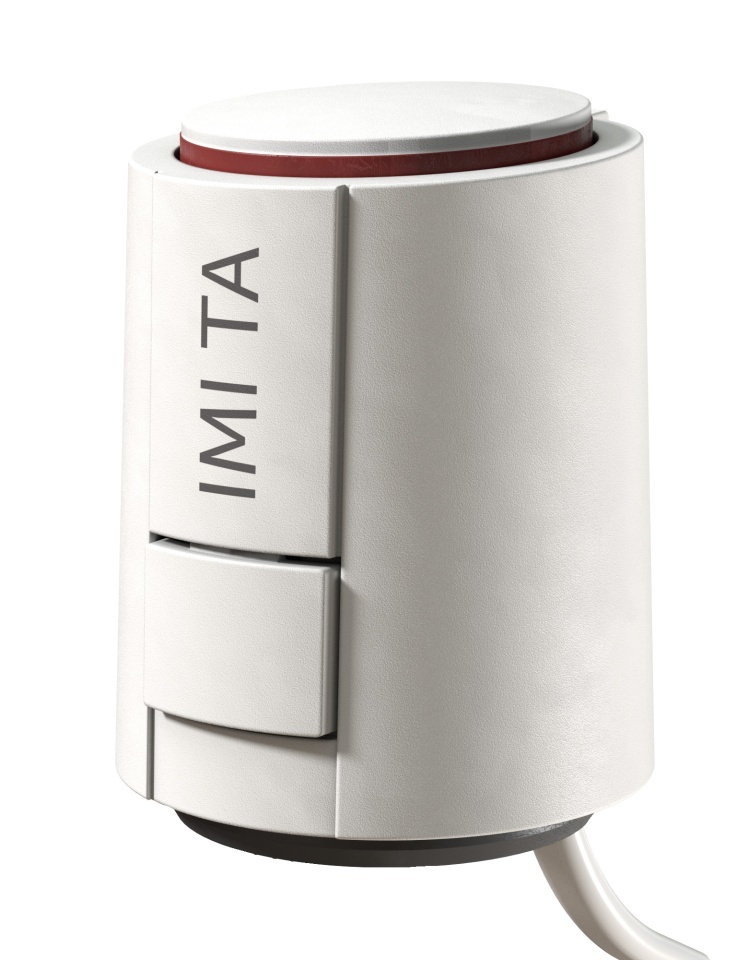

IMI Heimeier EMO T II 230V NC Thermoelectric Actuator (1m Cable)
The IMI Heimeier EMO T II 230V NC Thermoelectric Actuator is a high-precision, reliable thermal actuator designed for ON/OFF control in heating, ventilation, and air conditioning (HVAC) systems. Featuring a Normally Closed (NC) operation mode, this 24V actuator is engineered for seamless integration with floor heating manifolds, thermostatic radiator valves, and fan coil units.
Superior Engineering & Easy Status Visualization
Equipped with a highly visible position indicator, the EMO T II allows technicians and homeowners to check the open/closed status of the valve at a glance. Its compact design and robust construction ensure noiseless, maintenance-free operation over a long service life.
Quick & Hassle-Free Installation
Designed with user efficiency in mind, the EMO T II actuator mounts effortlessly onto compatible M30x1.5 valve bodies (such as IMI Heimeier, TA, and standard underfloor heating distributors) without requiring specialized tools. The included 1-meter connection cable provides flexible wiring during installation.
Key Benefits & Features:
-
Normally Closed (NC) Functionality: Ensures safety by automatically closing the valve circuit in the event of a power interruption.
-
Energy-Efficient Operation: Low power consumption designed for continuous duty in modern climate control systems.
-
IP54 Enclosure Rating: Provides excellent protection against dust and water splashes in manifold cabinets.
-
Universal M30x1.5 Connection: Fully compatible with IMI Heimeier thermostatic valve bodies and standard UFH manifolds.
3. Technical Specifications Table
| Technical Parameter | Specification / Value |
| Brand / Manufacturer | IMI Heimeier |
| Model / Series | EMO T II |
| Product Type | Thermoelectric Actuator |
| Operating Voltage | 230 V AC / DC |
| Control Mode | ON / OFF |
| Action / Circuit State | Normally Closed (NC) |
| Connection Thread | M30 × 1.5 mm |

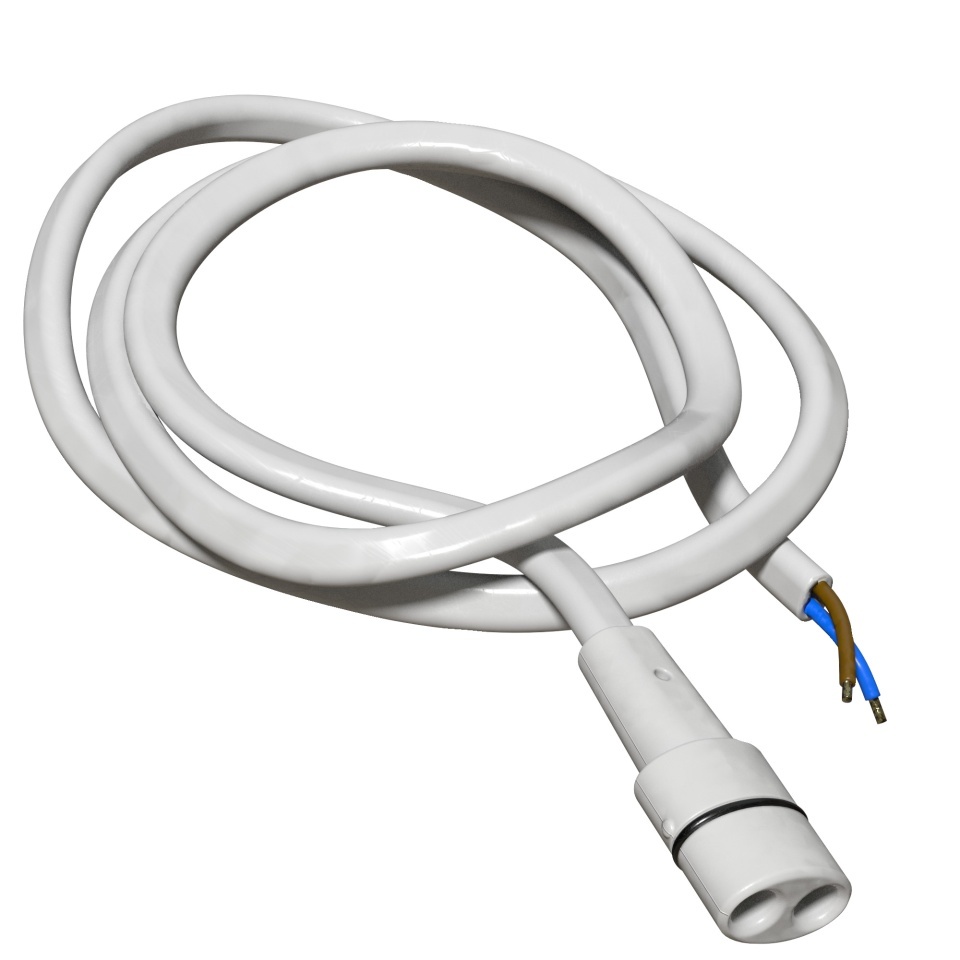

| Cable Length | 1.0 m |
| Position Indicator | Integrated All-Round Visual Indicator |
| Protection Class / IP Rating | IP54 |
| Operating Temperature Range | 0 °C ... +50 °C |
| Medium Temperature Range | Max. 100 °C |
| Closing / Opening Time | Approx. 3 – 4 minutes |
| Mounting Orientation | 360° Universal Mounting |
Looking for reliable thermal actuators for your HVAC installation?
The EMO T II 230V NC delivers precise control, quiet operation, and easy tool-free installation on M30x1.5 valves.
