📊 IMI TA-SCOPE Balancing Instrument: Premium HVAC Diagnosis & Balancing
Optimize any heating or cooling system with the TA-SCOPE, a high-performance wireless electronic instrument for hydraulic balancing and diagnosis. Engineered by IMI Hydronic Engineering, the TA-SCOPE is a robust handheld computer designed to measure differential pressure, flow, temperature, and power in complex hydraulic systems. 🌡️💧📡
This instrument doesn’t just measure; it provides a complete solution for system balancing, ensuring uniform heat distribution and a significant reduction in energy costs.
✨ Why is TA-SCOPE the Essential Tool for Professionals?
1. Absolute Precision and Wireless Measurement 📶🎯

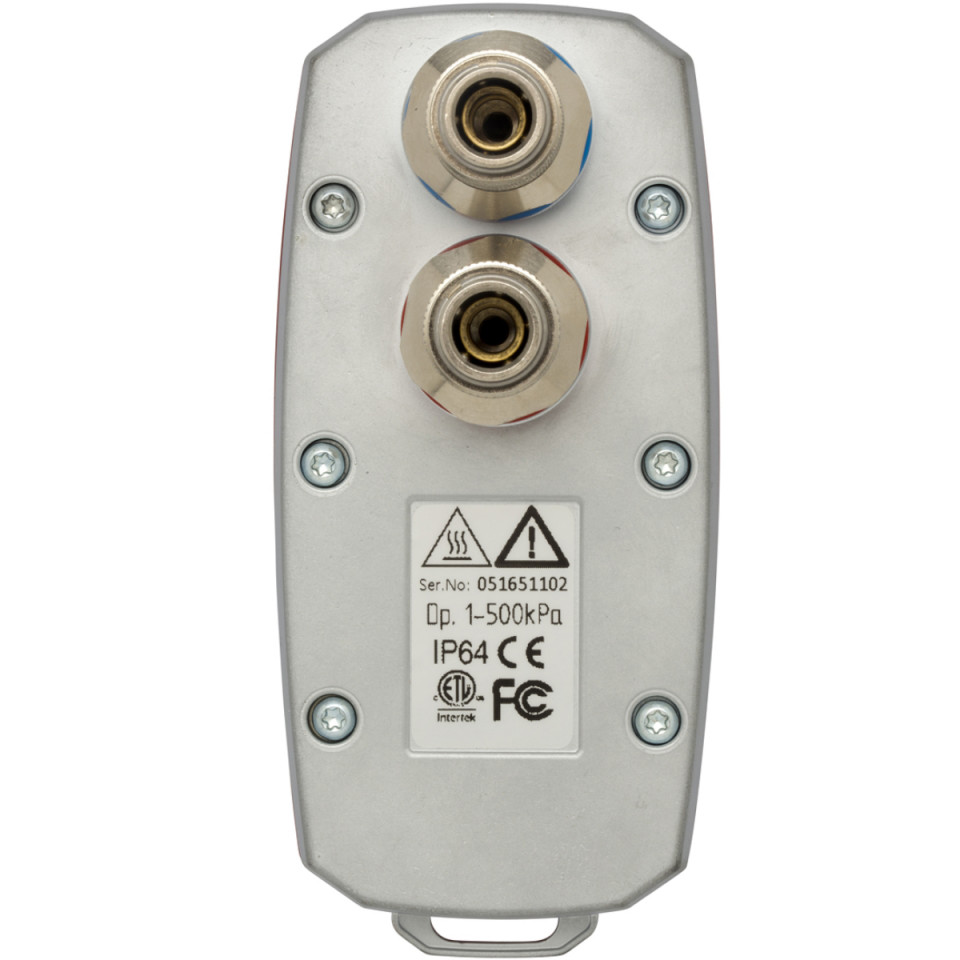

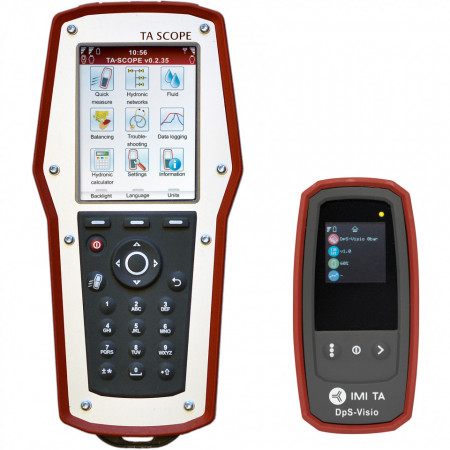

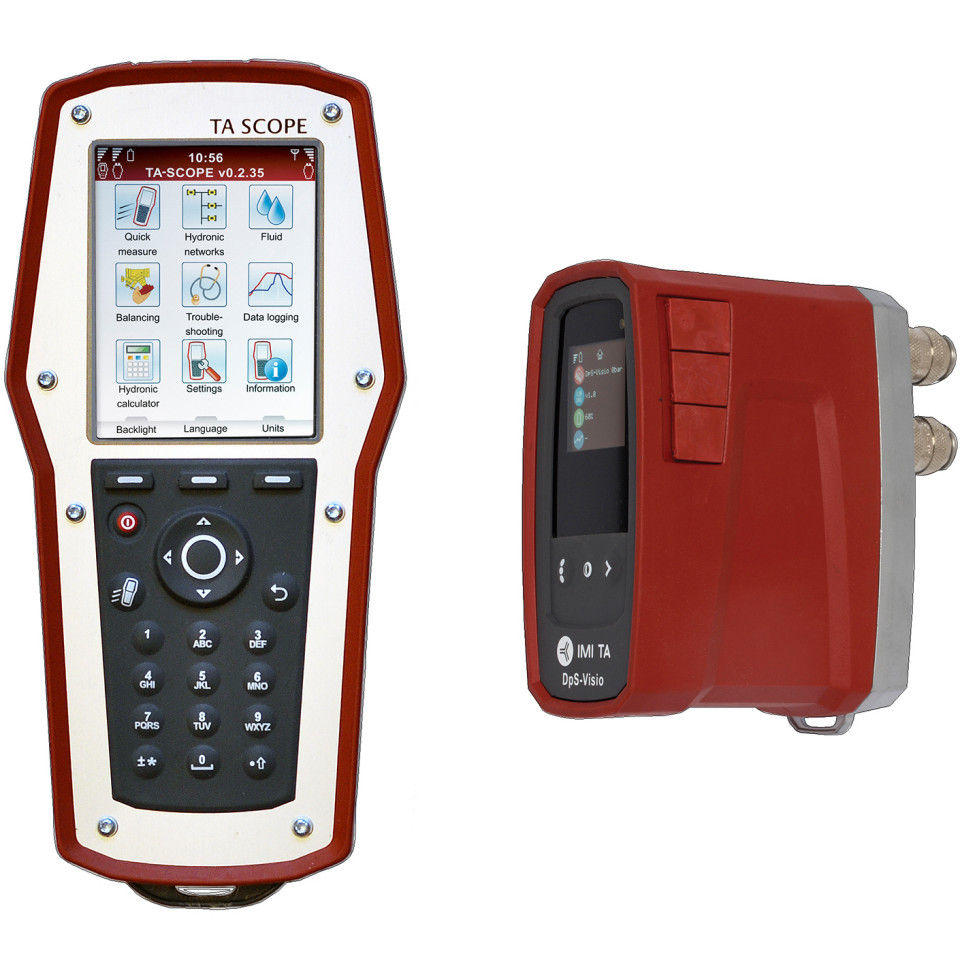

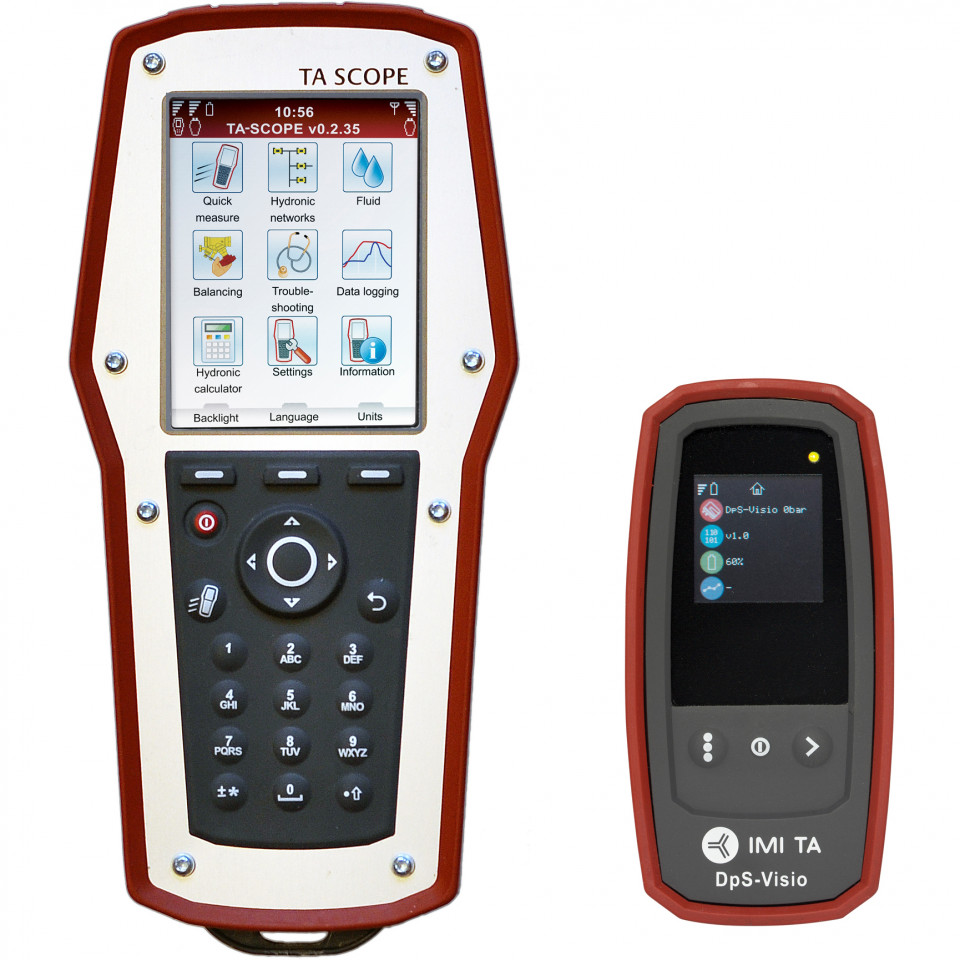

Equipped with a sensor unit (DpS) that communicates wirelessly with the handheld unit, the TA-SCOPE allows remote data reading, facilitating rapid on-site balancing. The sensor is calibrated to provide maximum accuracy even at low flow rates, making it essential for fine-tuning balancing valves.
2. Built-in Database for Balancing Valves 📚⚙️
The instrument comes pre-loaded with the hydraulic characteristics of all TA (Tour & Andersson) valves, as well as those from major global brands. Select the valve, and TA-SCOPE instantly calculates the correct flow based on the differential pressure (Δp), eliminating manual calculations and human error.
3. Advanced Logging and Reporting Functions 📝📈
You can record data over long periods (Data Logging) to analyze system behavior in real-time. Later, data can be downloaded into the HySelect software to generate professional balancing reports, which are crucial for project handover to clients.
4. Robust Design for Job Site Conditions 🏗️🛡️
With a shock-resistant casing and moisture protection (IP64 for the sensor), the TA-SCOPE is built to withstand the toughest work environments. The color interface and intuitive menu (available in multiple languages) make navigation quick and easy, even for new users.
🛠️ Key Technical Specifications:
| Feature | IMI Heimeier TA-SCOPE Details |
| Measurement Functions | Δp, Flow, Temperature, Power |
| Differential Pressure Range | 0 - 1000 kPa (or 2000 kPa optional) |
| Communication | Wireless (Bluetooth) or via Cable |
| Battery Life | Up to 25 hours of continuous use |
| Memory Capacity | Up to 1000 measurements/logs |
| Software Compatibility | HySelect (PC data transfer) |
Measurement range:
Total pressure:
TA-SCOPE max. 1 600 kPa
TA-SCOPE HP max. 2 500 kPa
Differential pressure:
TA-SCOPE 0 - 500 kPa
TA-SCOPE HP 0 - 1 000 kPa
Recommended pressure range during flow measurements:
TA-SCOPE 1 - 500 kPa
TA-SCOPE HP 3 - 1 000 kPa
Measurement deviation:
Differential pressure:
TA-SCOPE 0.1 kPa or 1% of reading, whichever is the highest
TA-SCOPE HP 0.2 kPa or 1% of reading, whichever is the highest
Flow: as for differential pressure + valve deviation
Temperature: <0.2°C
Temperature:
Temperature liquid medium measurement: -20°C – +120°C
Ambient temperature for the instrument:
During operation and charging: 0°C – +40°C
During storage*: -20°C – +60°C
*) Do not leave water in the sensor when there is a risk of freezing.
Humidity:
Ambient humidity: max. 90%RH
Battery capacity, operating and charge times:

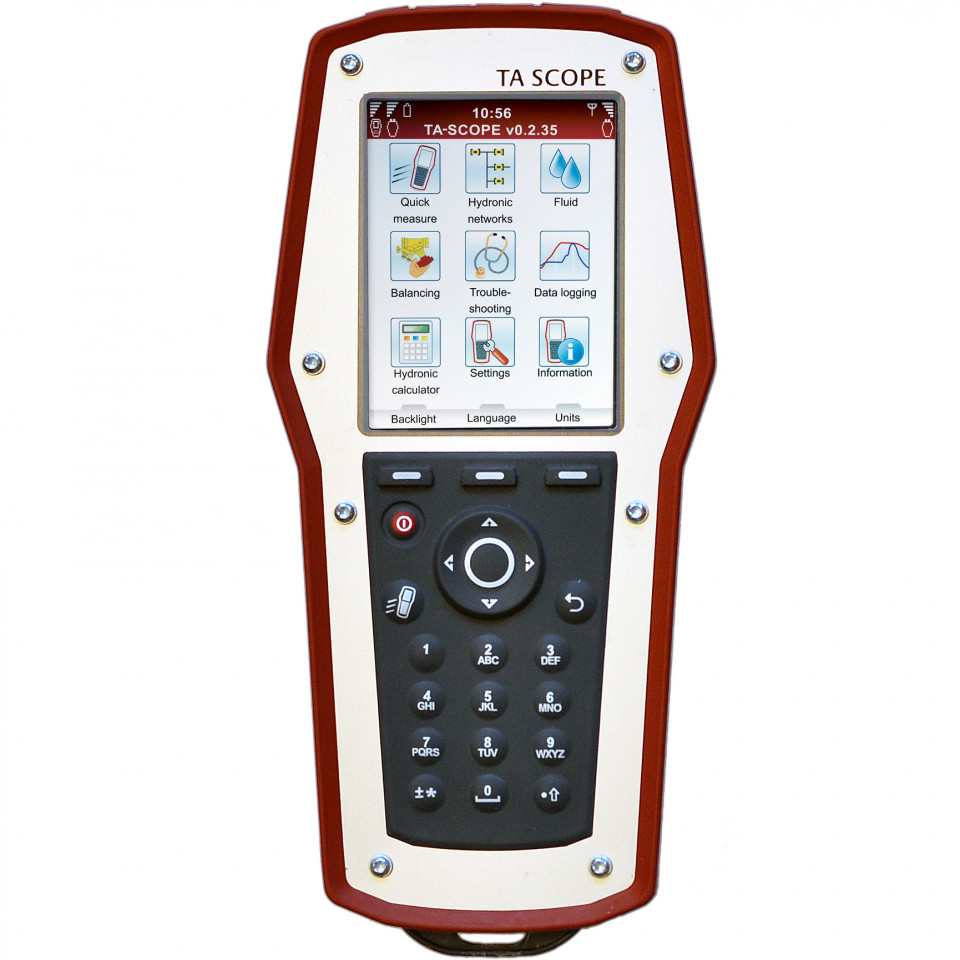

Handheld unit:
- battery capacity: 4 400 mAh
- operating time (with backlight on): >25 h
- charge time to full capacity: 6-7 h

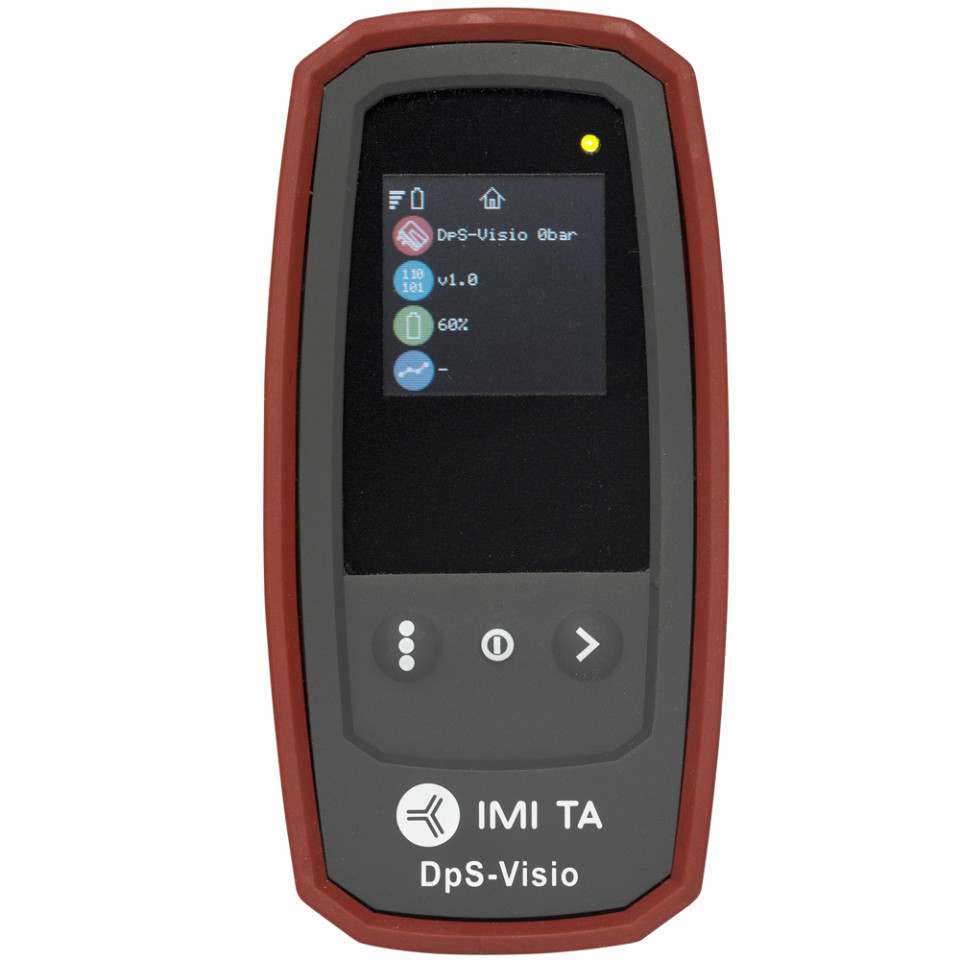

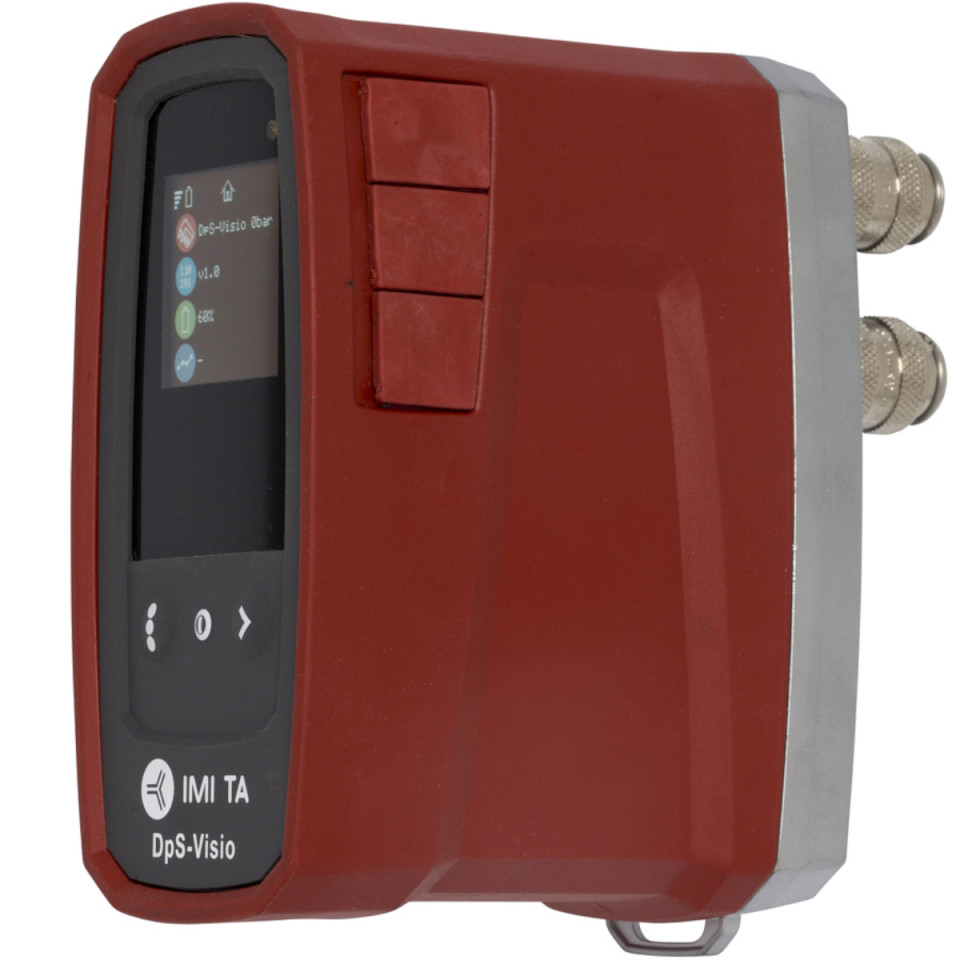

DpS-Visio (Dp sensor unit):
- battery capacity: 1 400 mAh
- operating time (continuous measurements): >25 h
- charge time to full capacity: 2.5 h
Logging time (in sleep mode): >100 days
Ingress protection:
Handheld unit (in wireless mode): IP64
Dp sensor unit (in wireless mode): IP64
Safety pressure and temperature probe: IP65
Digital temperature sensor: IP65
Charger:
Input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Connectors: EU, UK, US, AU/NZ

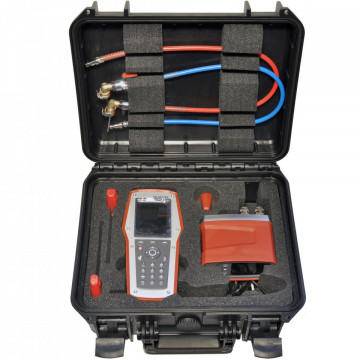

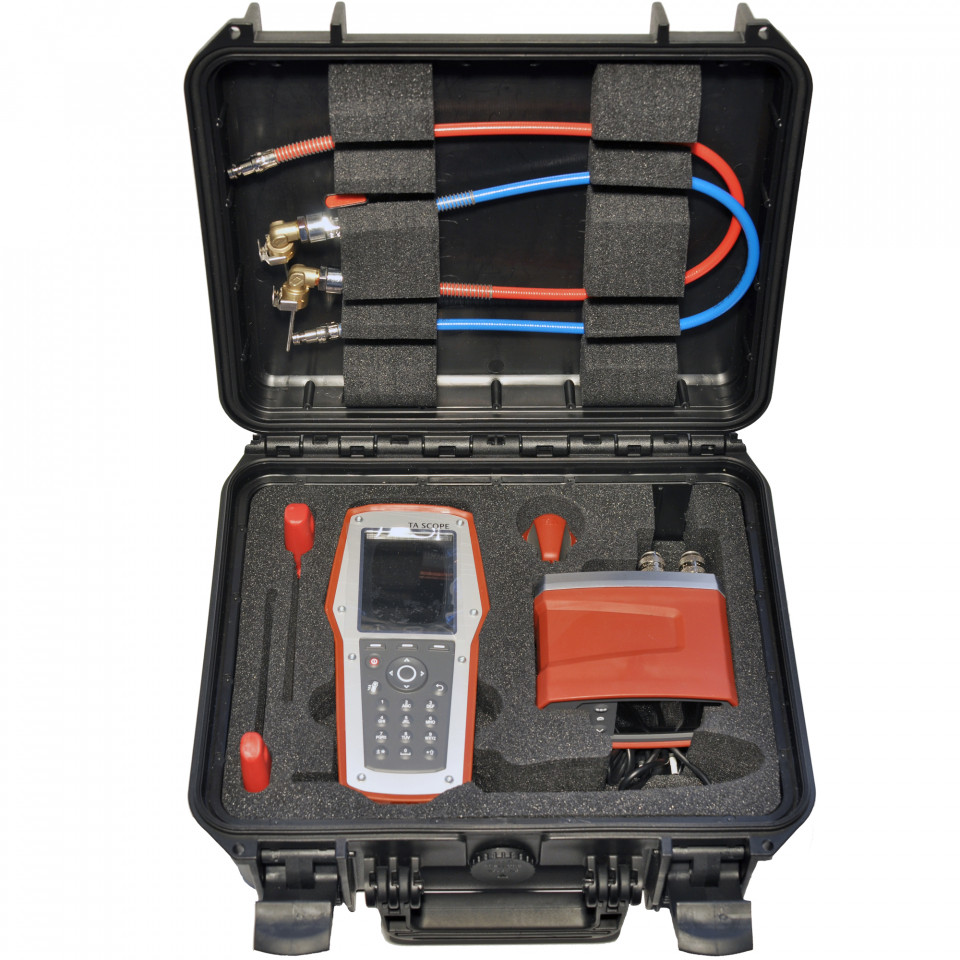

Case dimensions:
TA-SCOPE Premium case:
LxWxH = 426x290x159 mm
TA-SCOPE case:
LxWxH = 335x290x150 mm
✅ Benefits of Buying from Termix.ro
-
Professional Equipment Distributor: We provide original measurement and control instruments for large-scale HVAC projects. 🔧
-
Technical Support: Our team can guide you through the advanced functions of the TA-SCOPE instrument. 📈
-
Service and Calibration Support: We offer information regarding the periodic maintenance required for precision devices. 🛡️
-
Secure International Shipping: As a high-value item, we ensure insured transport and special handling for your order. 📦🚚
🏆 TA-SCOPE: Hydraulic Efficiency Under Your Control
The IMI Heimeier TA-SCOPE transforms hydraulic balancing from a technical challenge into a simple, fast, and extremely accurate process. It is the ideal investment for installation companies aiming to deliver perfectly functional systems with minimum energy consumption and maximum thermal comfort.
