Indirect heating Tank FB2 800 with 2 heat exchangers
RON 7,260.52
(VAT Included)
Delivery costs are not included
Financing through Online Credit smart by BT Direct
How can we help you?
Description

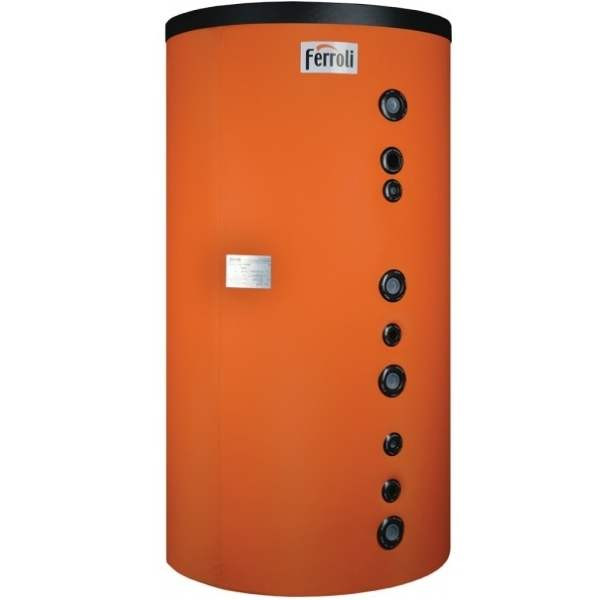

Indirect heating Tank Ferroli FB2 800 with 2 heat exchangers and an optional electric heating element
- 2 spirals for connection to the heating system and solar collectors.
FB Tank stores the thermal energy supplied by the boilers on gaseous or liquid fuel, and minimizes the burner starts, respectively balances the thermal energy supply regime of the boilers on wood, chips, and pellets.
The buffer is made of high quality S235JR steel (EN 10025) protected with anti-corrosion paint.
FB is intended for use only for thermal heating agent, not for domestic hot water storage.
The working pressure of the storage tank is 3 bar.
The external insulation is made of soft polyurethane 100 mm thick with PVC coating, in accordance with DIN 4753-8.
| DATE TEHNICE | U.M. | 500 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 |
|---|---|---|---|---|---|---|---|---|
| Diametru fara izolatie | mm | 650 | 790 | 790 | 1000 | 1150 | 1150 | 1250 |
| Diametru cu izo.de 100mm | mm | 850 | 990 | 990 | 1200 | 1350 | 1350 | 1450 |
| Inaltime fara izolatie | mm | 1610 | 1860 | 2040 | 2170 | 2200 | 2680 | 2720 |
| Inaltime cu izo. de 100mm | mm | 1660 | 1910 | 2090 | 2220 | 2250 | 2730 | 2770 |
| Presiune maxima de lucru | bar | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Temp max. de lucru | grdC | 95 | 95 | 95 | 95 | 95 | 95 | 95 |
| Greutate | kg | 140 | 185 | 220 | 348 | 456 | 497 | 640 |
| Serpentina solar | ||||||||
| Supr. serpentina inf. | mp | 1,7 | 2,9 | 3,0 | 3,4 | 4,0 | 4,0 | 4,5 |
| Volum serp. inf. | litri | 10,5 | 17,9 | 18,5 | 21 | 24,6 | 24,6 | 27,7 |
| Supr. serpentina sup. | mp | 1,0 | 1,8 | 2,0 | 2,4 | 2,4 | 2,4 | 3,1 |
| Volum serpentina sup. | litri | 6,2 | 11,1 | 12,3 | 14,8 | 14,8 | 14,8 | 19,1 |
| Presiune max. de lucru | bar | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Details
SKU
2060015203205
Categories
Weight
185 kg
Brand
Physical Characteristics
Volume
501-800 liters
Material
Steel
Colour
Black, Orange
DHW Tank Type
with 2 Coils
