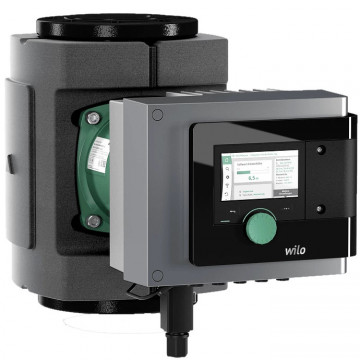

Inline Glandless Pump Wilo Stratos Maxo 50/0,5-9 PN6/10
Premium smart-pump Wilo-Stratos MAXO.
High-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for cold water, heating water and water/glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on pump type.
Control modes:
- Permanent, automatic performance adaptation to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control mode.
- Constant temperature (T-const.)
- Constant differential temperature (dT-const.)
- Needs-based volume flow optimisation of the feeder pump through connectivity and communication between multiple pumps (Multi-Flow Adaptation).
- Constant volume flow (Q-const.)
- Differential pressure control (dp-c) to a remote point in the pipe network (index circuit evaluator)
- Constant differential pressure (dp-c)
- Variable differential pressure (dp-v) with the option to set the nominal duty point
- Constant speed (n-const.)
- User-defined PID control
Functions:
- Heat quantity measurement
- Cooling quantity measurement
- Pump automatically deactivates when no flow is detected (No-Flow Stop)
- Switchover between heating and cooling mode (automatic, external or manual)
- Adjustable volume flow limiter using the Q-Limit function (Qmin. and Qmax.)
- Operating modes of twin-head pumps: Efficiency-optimised parallel operation for dp-c and dp-v, main and standby operation
- Ability to save and restore configured pump settings (3 restoration points)
- Fault and warning messages shown in plain text with advice on resolving the issue
- Pump venting function for automatic venting of the rotor chamber
- Automatic setback operation
- Automatic deblocking function and integrated full motor protection
- Dry-running detection
Display:
- Control mode
- Setpoint
- Volume flow
- Temperature
- Power consumption
- Electric consumption
- Active influences (e.g. STOP, No-Flow Stop)
Version:
- 2 configurable analogue inputs: 0–10 V, 2–10 V, 0–20 mA, 4–20 mA and commercially available PT1000; +24 V DC power supply
- 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, heating/cooling, manual override (uncoupled from building automation), operation lock (key lock and remote operation configuration protection))
- 2 configurable signal relays for operational and fault messages
- Slot for Wilo-CIF modules with interfaces for building automation BA (optional accessories: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)
- Wilo Net as a Wilo system bus for communication between Wilo products, e.g. Multi-Flow Adaptation; double pump operation and Wilo-Smart Gateway
- Integrated temperature sensor
- Automatic emergency operation with definable pump speed for exceptional circumstances, e.g. bus communication or sensor value malfunction
- Graphic colour display (4.3 inches) with one-button manual operation
- Use the Wilo-Assistant app to read and set operating data and –among other things– set up a commissioning protocol through the Bluetooth interface (no further accessories required)
- Integrated double pump management (double pumps are prewired) when using 2 single pumps as double pump unit (connection via Wilo Net)
- Cable break detection when using an analogue signal (in connection with 2–10 V or 4–20 mA)
- Outdoor installation with weather protection possible in accordance with the installation and operating instructions
- Pre-set date and time
- Thermal insulation shell for heating applications
Scope of delivery
- Pump
- Optimised Wilo-Connector the same for all sizes
- 2x threaded cable connection M16 x 1.5
- Washers for flange screws M12 and M16 (for nominal connection diameters DN 32 to DN 65)
- 2x gaskets for threaded connection
- Thermal insulation shell
- Concise Installation and operating instructions
Optional accessories:
- ClimaForm cold insulation to avoid the formation of condensate
- CIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
- PT 1000 (B) pipe contact sensor (for domestic hot water)
- PT 1000 (AA) sensor for installation in immersion well
- Differential pressure sensor
- Smart Gateway
Operating Data
Fluid media: Water 100 %
Fluid temperature: 20,00 °C
Requested flow:
Requested head:
Fluid temperature: -10...110 °C
Ambient temperature: -10...40 °C
Maximum operating pressure: 10 bar
Minimum suction head at 50 °C: 5 m
Minimum suction head at 95 °C: 12 m
Minimum suction head at 110 °C: 18 m
Motor data
Energy efficiency index (EEI): ≤ 0.17
Interference emission: EN 61800-3;2004+A1;2012 /residential area (C1)
Interference immunity: EN 61800-3;2004+A1;2012 /industrial environment (C2)
Mains connection: 1~230V/50 Hz
Power consumption: 550 W
Min. speed: 650 1/min
Max. speed: 3050 1/min
Protection class motor: IPX4D
Threaded cable connection: 5 x M16x1.5
Materials
Pump housing: 5.1301/EN-GJL-250
Impeller: PPS-GF40
Shaft: 1.4028, DLC-coated
Bearing: Carbon, antimony-impregnated
Installation dimensions
Pipe connection on the suction side: DN 50, PN 6/10
Pipe connection on the discharge side: DN 50, PN 6/10
Port-to-port length: 280 mm
Ordering information
Brand: Wilo
Product description: Stratos MAXO 50/0,5-9 PN6/10
Net weight, approx.: 18,8 kg
Article number: 2164588
