Level indicator Unimes
RON 446.98
(VAT Included)
RON 369.40
(VAT excluded)
Delivery costs are not included
How can we help you?
Description

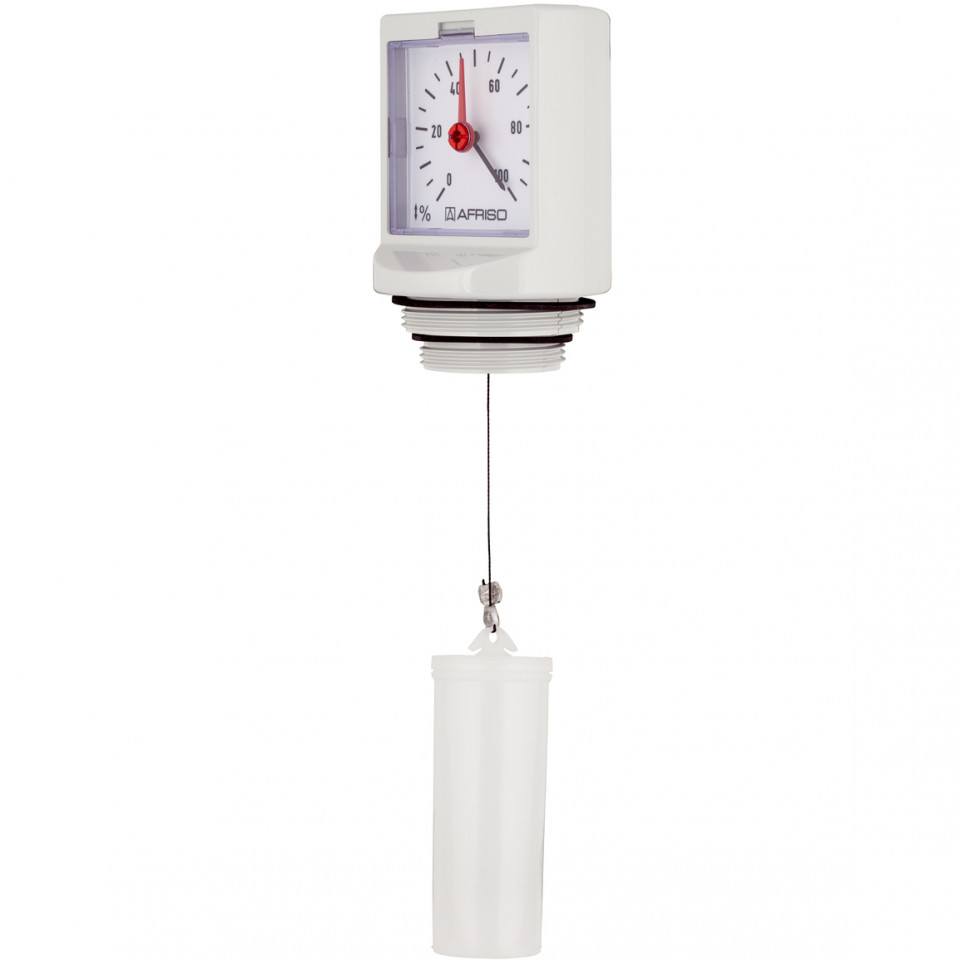

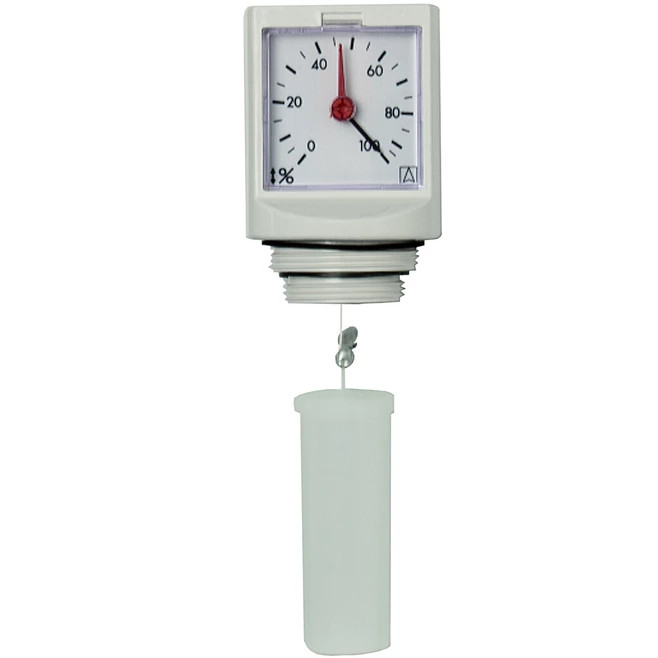

Level indicator Afriso Unimes
Benefits
- No power supply required
- Reference pointer for easy consumption monitoring
- Measured values are displayed in % liquid level
- Mounting flexibility due to connection threads G1½ and G2
- Materials resistant to biofuel and biodiesel with max. 100 % FAME
- Green fuels ready: suitable for use at tank facilities filed with the new paraffinic fuels HVO or GTL.
Application
For continuous level measurement in tanks containing fuel oil EL (DIN 51603-1), diesel fuel (EN 590), liquid fuels as per DIN SPEC 51603-6 and DIN/TS 51603-8 as well as biofuel and biodiesel with up to 100 % FAME (EN 14214) or other low-viscosity media which do not attack materials used. This product is therefore ideal for all ecologically upgraded fuel oil consuming systems that use the new paraffinic fuels HVO or GTL as an admixture or 100 %.
For tank heights from 900 to 2,000 mm.
Technical data
Measuring range (tank height) 0/900 to 0/2,000 mm
Scale (displayed values) 0/100 % liquid level
Connection thread G1½ and G2
Housing/float
Indicator: ABS, impact-resistant
Window: SAN
Float: PE-HD, ∅ 41 mm
