Mitre Saw GCM 12 GDL Professional

Description

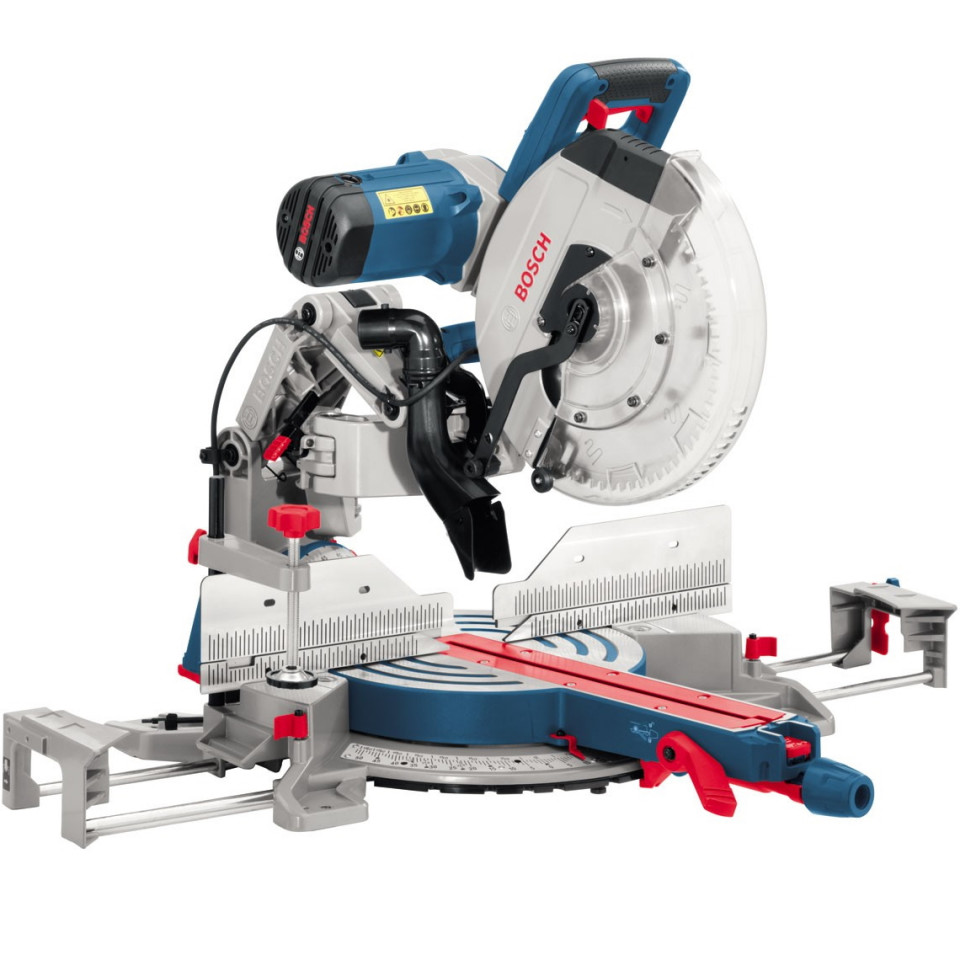

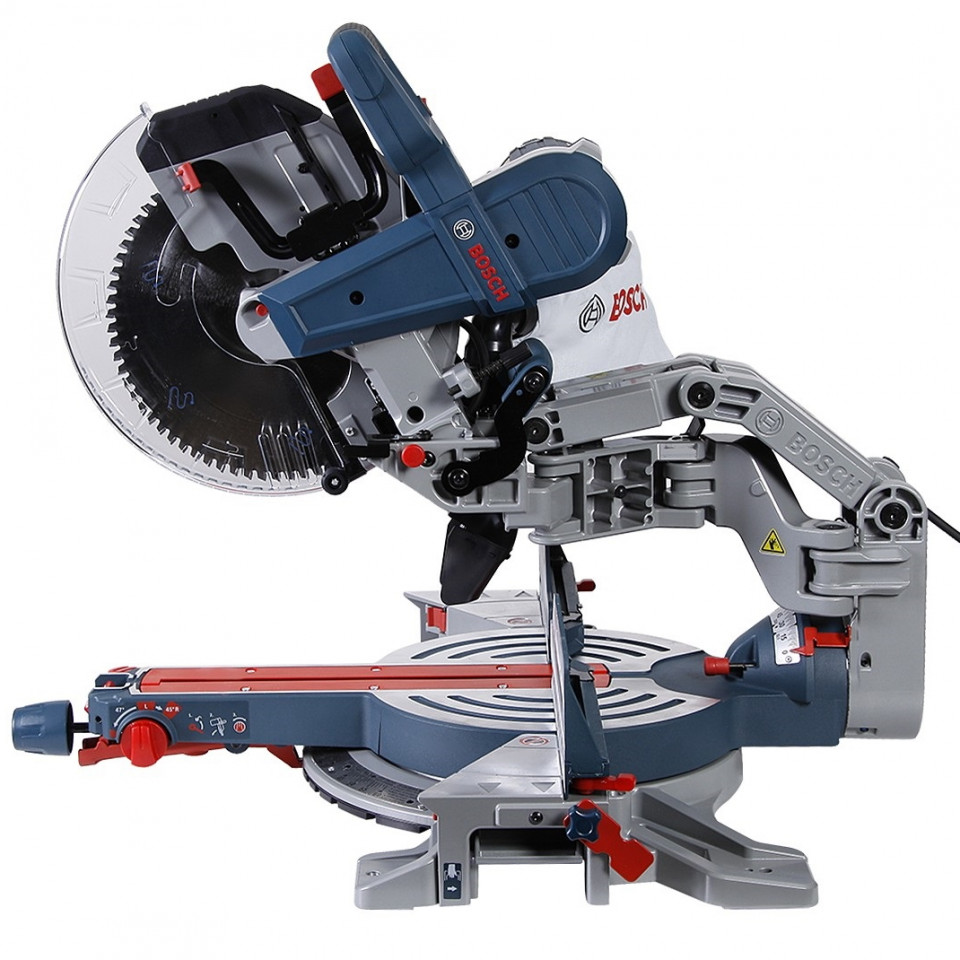

Mitre Saw Bosch GCM 12 GDL Professional

Highest-precision sawing: mitre saw with Bosch´s patented glide arm design

• Innovative, maintenance-free glide arm is extremely robust for precision that lasts
• Glide arm´s hinge design makes the mitre saw compact from front to back
• Double line laser and top-quality saw blade ensure highly accurate cuts

TECHNICAL DATA

Cutting capacity, 0° 104 x 341 mm
Cutting capacity, 45° mitre 104 x 240 mm
Cutting capacity, 45° bevel 51 x 341 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R
Tool dimensions (width x length x height) 1100 x670 x740 mm
No-load speed* 4,000 rpm
Saw blade diameter 305 mm
Saw blade bore diameter 30 mm
Weight* 32.1 kg
Rated input power 1,500 W
Total vibration values (Sawing wood)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Noise/vibration information
Sound pressure level 93 dB(A). Sound power level 106 dB(A)
Uncertainty K 3 dB

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.

With the most accurate cutting results in the Bosch range, the GCM 12 GDL Professional is the top choice for jobs that demand highest precision. The mitre saw´s innovative, maintenance-free glide arm is extremely robust and offers high endurance. Thanks to the glide arm´s hinge design, the GCM 12 GDL Professional is compact from front to back. Equipped with a double line laser and top-quality saw blade, this mitre saw ensures highly accurate cuts.

Equipment & Application

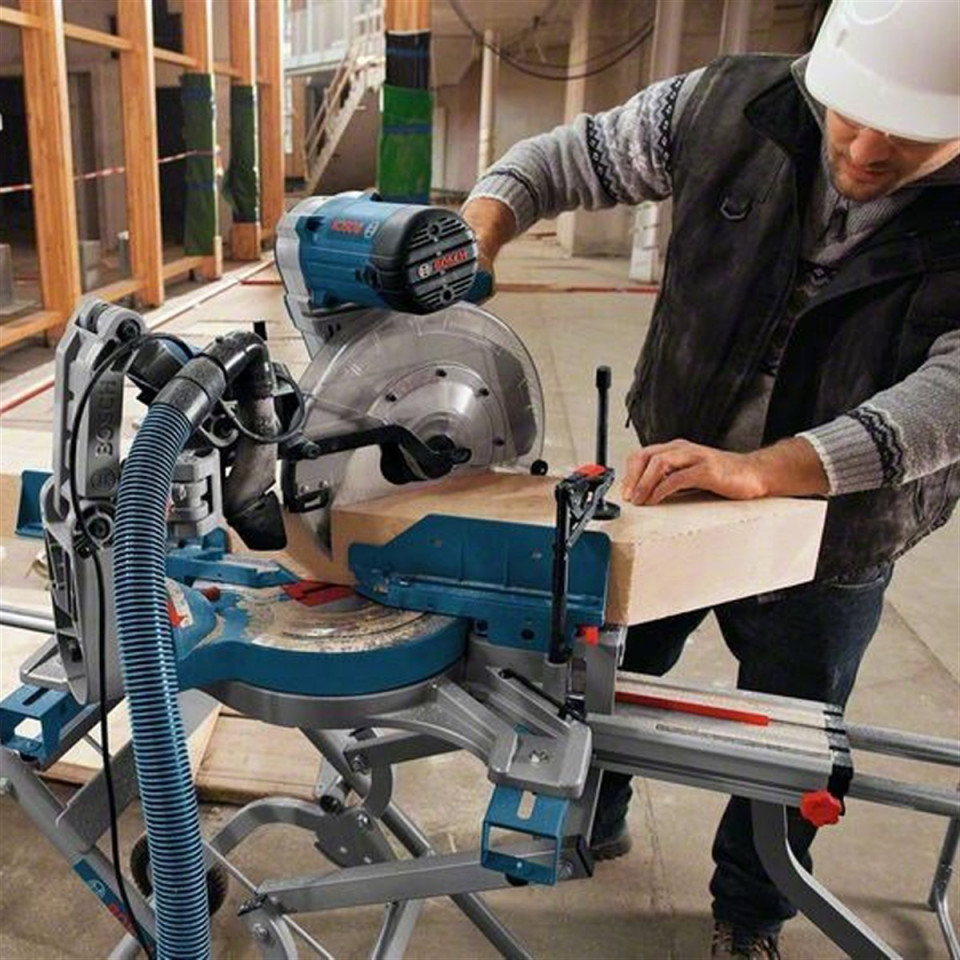

The GCM 12 GDL Professional is intended for cross, mitre bevel and groove cuts in wood, timber beams, and wood composites as well as in board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.

Additional Information

The GCM 12 GDL Professional also includes features such as intelligent brake system, precision double line laser, and soft start.
