Mitsubishi Electric PLA-SM71EA 24,000 BTU Commercial Ceiling Cassette Air Conditioner
Premium Recessed Climate Control for Offices, Restaurants & Retail Spaces

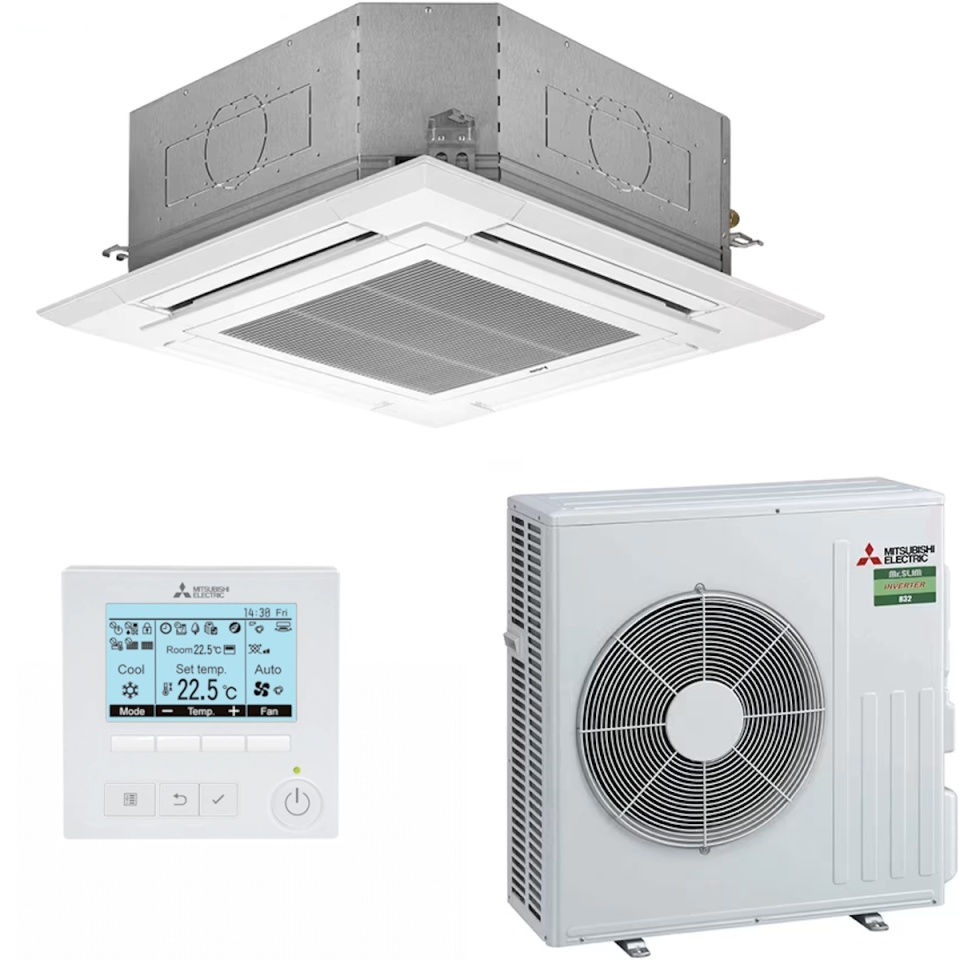

The Mitsubishi Electric PLA-SM71EA / SUZ-SA71VA (24,000 BTU / 7.1 kW) is an industry-leading 4-way ceiling cassette system engineered for medium-to-large commercial environments and open-plan offices (50–75 $m^2$). Powered by advanced single-phase 220V Inverter technology, this unit delivers ultra-quiet operation, rapid thermal response, and maximum seasonal energy savings. Designed to fit seamlessly into standard suspended ceilings, it provides a clean, unobtrusive architectural aesthetic without compromising on cooling capacity.
Draft-Free 360° Airflow & Independent Vane Control

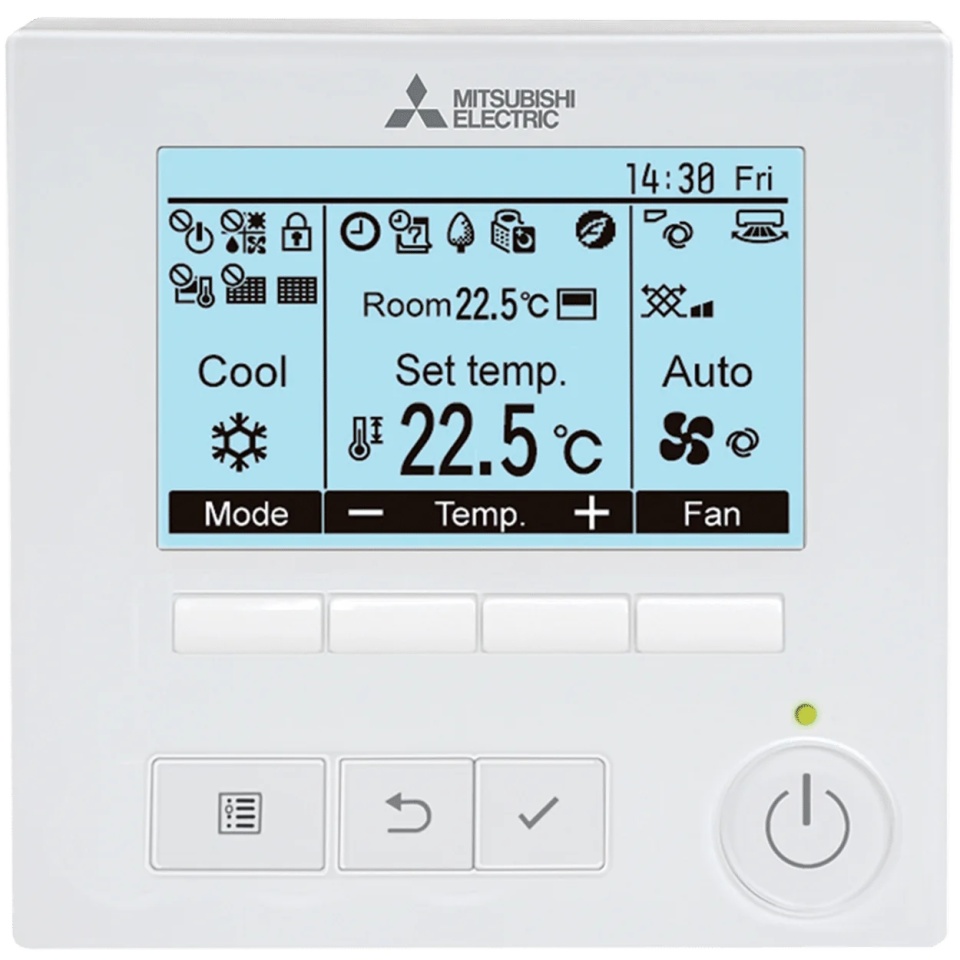

Eliminate hot and cold spots throughout your space. The PLA-SM71EA cassette utilizes a 4-way louvre design with wide-angle airflow paths, ensuring conditioned air reaches every corner evenly. Each vane can be independently adjusted via the controller, allowing facility managers to direct airflow away from stationary desks or dining tables to prevent uncomfortable direct drafts.
Intelligent Energy Savings with 3D i-See Sensor Capability
Equipped with support for Mitsubishi Electric’s optional 3D i-See Sensor, the system actively scans the thermal profile of the room and detects human occupancy. When the space is vacant, the unit automatically switches to an eco-mode, modulating compressor frequency to significantly reduce electricity consumption during off-peak office hours.
Technical Specifications | Mitsubishi Electric PLA-SM71EA 📊
| Category | Parameter / Feature | Technical Specification |
| System Components | Indoor Unit (Cassette) | PLA-SM71EA |
| Outdoor Unit | SUZ-SA71VA | |
| Panel / Grille | Standard 4-Way Air Discharge Panel | |
| Cooling & Heating Capacity | Nominal Cooling Capacity (Min - Max) | 7.1 kW (2.8 - 8.1 kW) ~ 24,000 BTU/h |
| Nominal Heating Capacity (Min - Max) | 8.0 kW (2.6 - 10.2 kW) | |
| Energy Efficiency | Seasonal Efficiency Cooling (SEER / Class) | 6.0 / A++ 🇪🇺 |
| Seasonal Efficiency Heating (SCOP / Class) | 4.1 / A+ | |
| Electrical Data | Power Supply | 220-240 V / 1 Ph / 50 Hz |
| Acoustics & Airflow | Sound Pressure Level (Indoor Min - Max) | 28 - 36 dB(A) (Ultra-Quiet Operation) 🤫 |
| Airflow Rate (Indoor) | 17.0 - 26.0 $m^3/min$ | |
| Dimensions & Weights | Indoor Unit Body (H x W x D) | 258 x 840 x 840 mm |
| Panel Grille (H x W x D) | 40 x 950 x 950 mm | |
| Indoor Unit / Panel Net Weight | 21 kg / 5 kg | |
| Outdoor Unit Dimensions (H x W x D) | 880 x 840 x 330 mm | |
| Piping & Installation | Liquid / Gas Pipe Diameter | 3/8" (9.52 mm) / 5/8" (15.88 mm) |
| Condensate Drain Pump | Built-in high-lift drain pump included 💧 |
Key Commercial Advantages of the PLA-SM71EA ✅
-
Inconspicuous Ceiling Integration: Blends into any false ceiling grid, leaving only the ultra-slim decorative intake panel visible to maintain modern interior aesthetics.
-
Integrated Drain Pump: Factory-fitted with a high-lift condensate pump, simplifying pipework routing in tight ceiling voids.
-
Whisper-Quiet Performance: Engineered with specialized 3D turbo fan blades that lower operational noise to just 28 dB(A), ensuring zero disturbance in corporate conference rooms.
-
BMS & Wi-Fi Ready: Compatible with MELCloud for smartphone control and can be connected to central Building Management Systems via M-NET interfaces.
Termix Expert Tip 💡
How to optimize performance in drop-ceiling installations: When installing the Mitsubishi Electric PLA-SM71EA, ensure a minimum clearance height of 260 mm within the false ceiling plenum. For commercial open-plan spaces, we recommend scheduling bi-monthly cleaning of the reusable air filter to keep airflow velocity at maximum efficiency. Activating the vertical vane sweep mode during winter heating helps overcome thermal stratification by forcing warm air down to floor level, saving up to 15% on heating costs! 🛡️🏢
