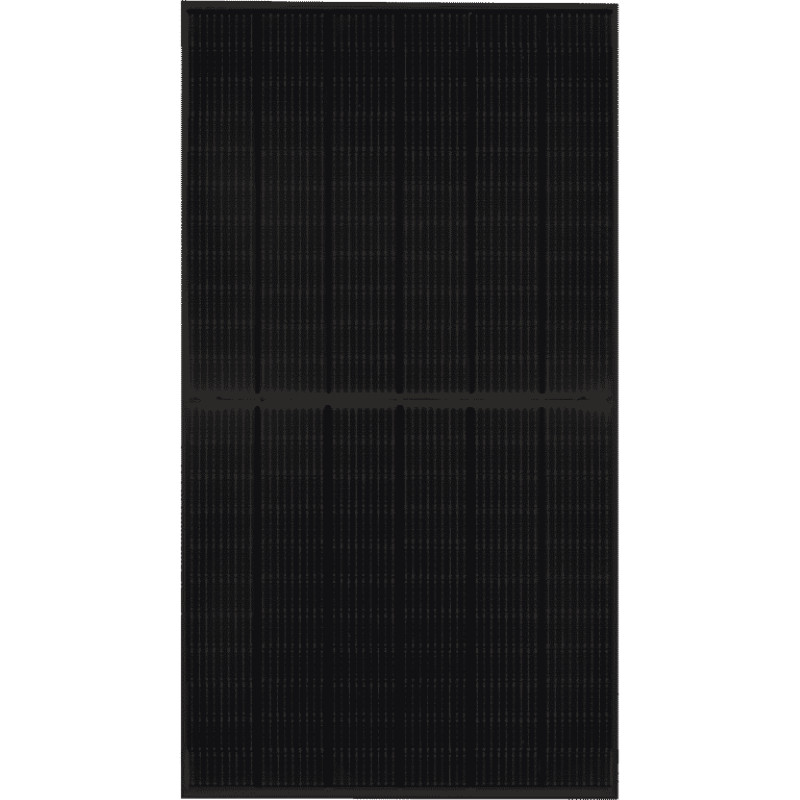

Mono-facial PV Module JKM470M-7RL3-V BF 470Wp

Description

Mono-facial PV Module Jinko Solar JKM470M-7RL3-V BF 470Wp

Key Features

Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

TR technology + Half Cell

TR technology with Half cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.38%)

Best Warranty

12 year product warranty,
25 year linear power warranty
2% first year degradation,
0.55% linear degradation
Higher lifetime Power Yield

9BB instead of 5BB

9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.

Avoid debris, cracks and broken gate risk effectively

9BB technology using circular ribbon that could avoid debris, cracks and broken gate risk effectively

Number of Cells: 156 (2×78)
Weight 25.0 kg (55.12 lbs)
Cell Type: P type Mono-crystalline

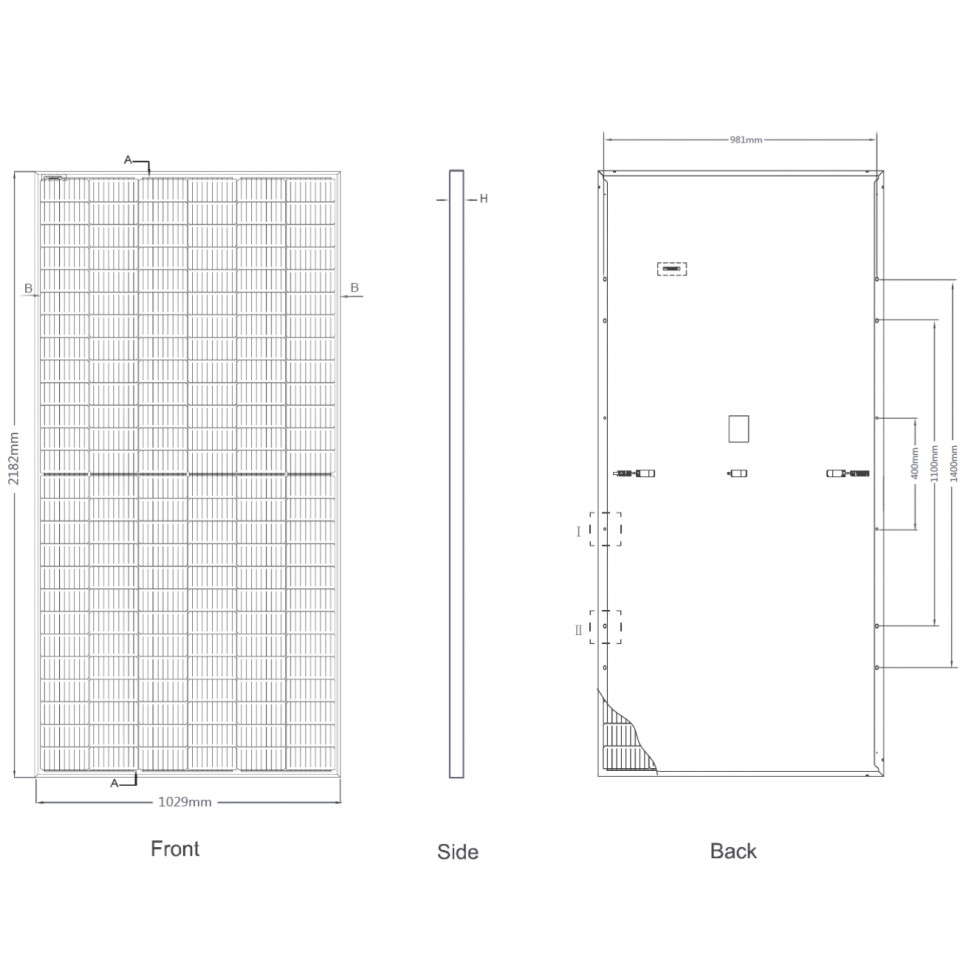

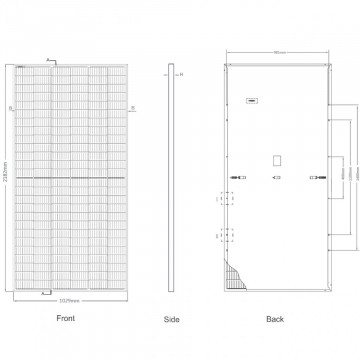

Dimensions 2182×1029×35 mm (85.91×40.51×1.38 inch)

Front Glass 3.2 mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

Junction Box IP68 Rated

Output Cables: TUV 1×4.0mm2 (+): 290mm , (-): 145mm or Customized Length
